Cooling Fan Motor And Shroud: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Engine Cooling System Health And Safety Precautions .

  2. Refer to: Jacking And Lifting - Overview .

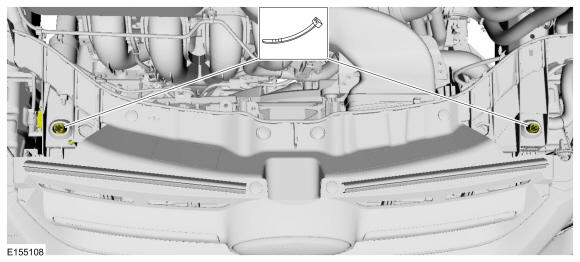

  3. Use the General Equipment: Cable Ties
    GFD223531Courtesy of FORD MOTOR COMPANY

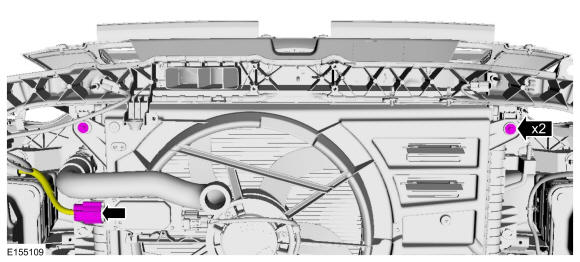

  4. Torque: 44 lb.in (5 Nm)
    GFD223532Courtesy of FORD MOTOR COMPANY

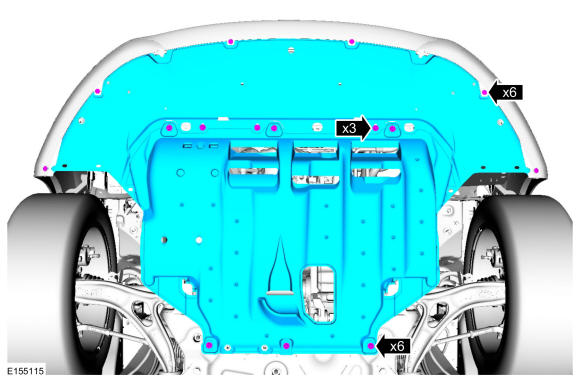

  5. GFD223533Courtesy of FORD MOTOR COMPANY

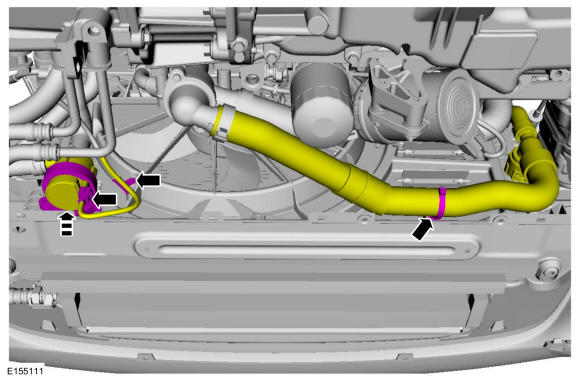

  6. GFD223534Courtesy of FORD MOTOR COMPANY

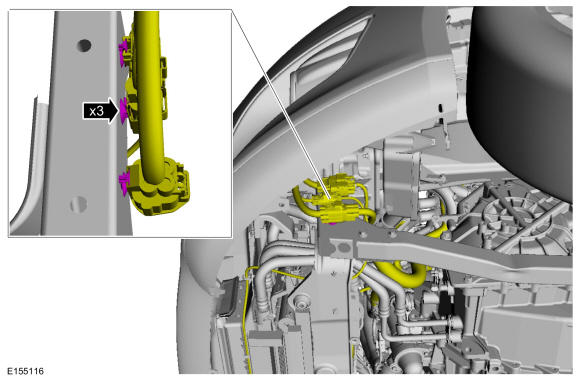

  7. GFD223535Courtesy of FORD MOTOR COMPANY

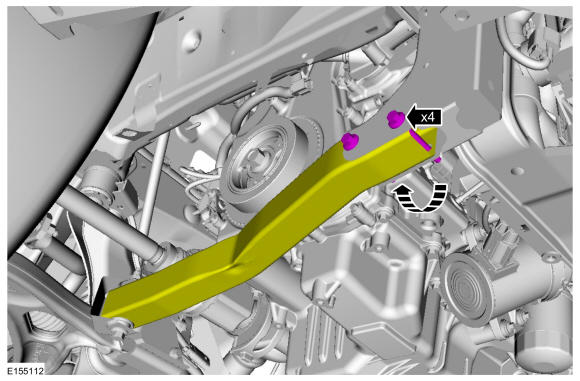

  8. Torque: 18 lb.ft (25 Nm)
    GFD223536Courtesy of FORD MOTOR COMPANY

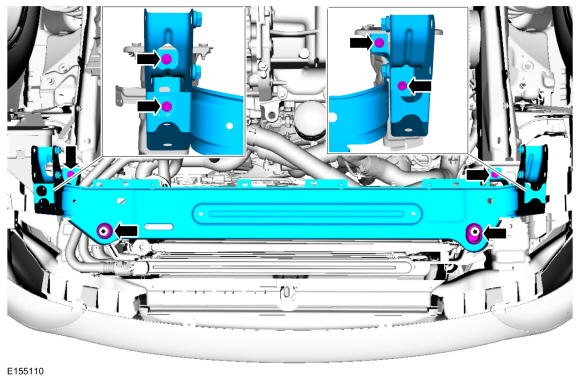

  9. Torque: 18 lb.ft (25 Nm)
    GFD223537Courtesy of FORD MOTOR COMPANY

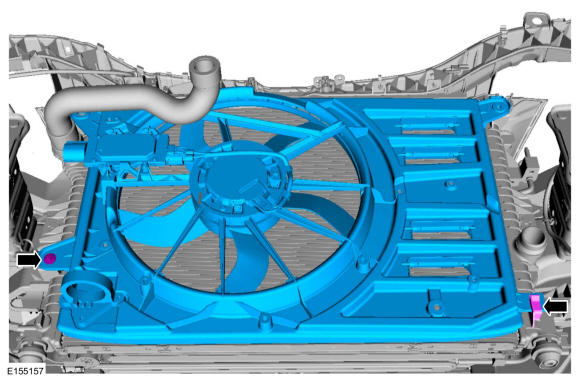

  10. Torque: 44 lb.in (5 Nm)
    GFD223538Courtesy of FORD MOTOR COMPANY
