Crankcase Vent Oil Separator: Removal
NOTE:
During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
- Remove the intake manifold.
Refer to: Intake Manifold

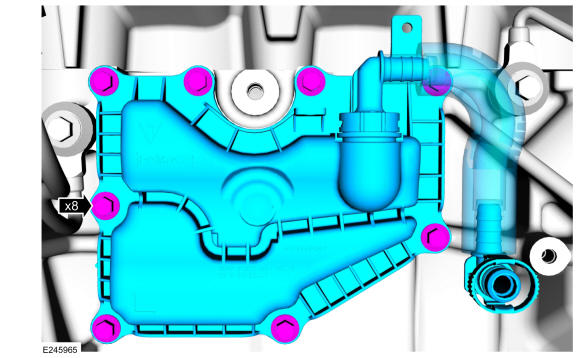

- Remove the crankcase vent oil separator bolts and then remove the crankcase vent oil separator.
