Home >> Ford >> 2017 >> C-Max Hybrid Titanium >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams >> Parking Aid

Parking Aid

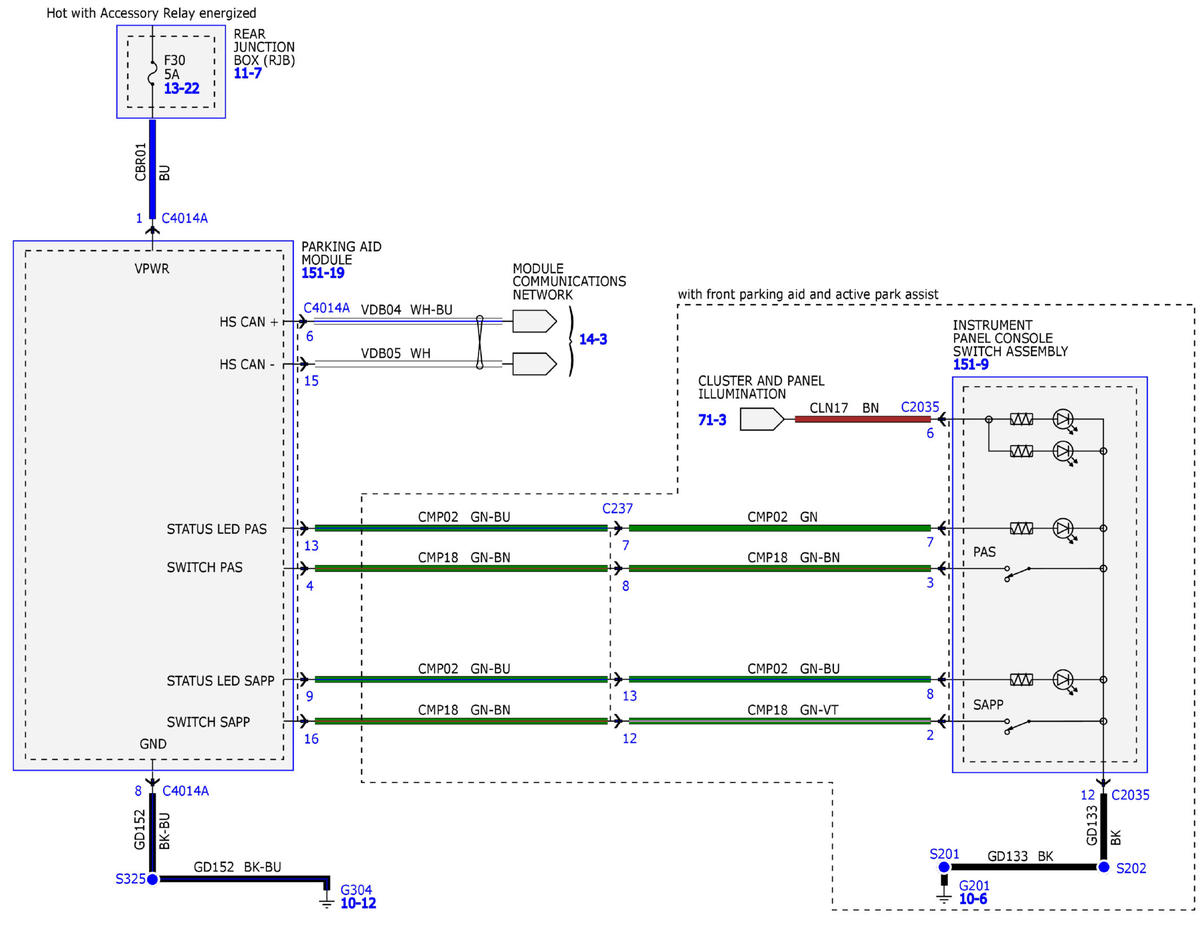

Fig 1: Parking Aid Wiring Diagram (1 Of 5)
GFDW88905Courtesy of FORD MOTOR COMPANY

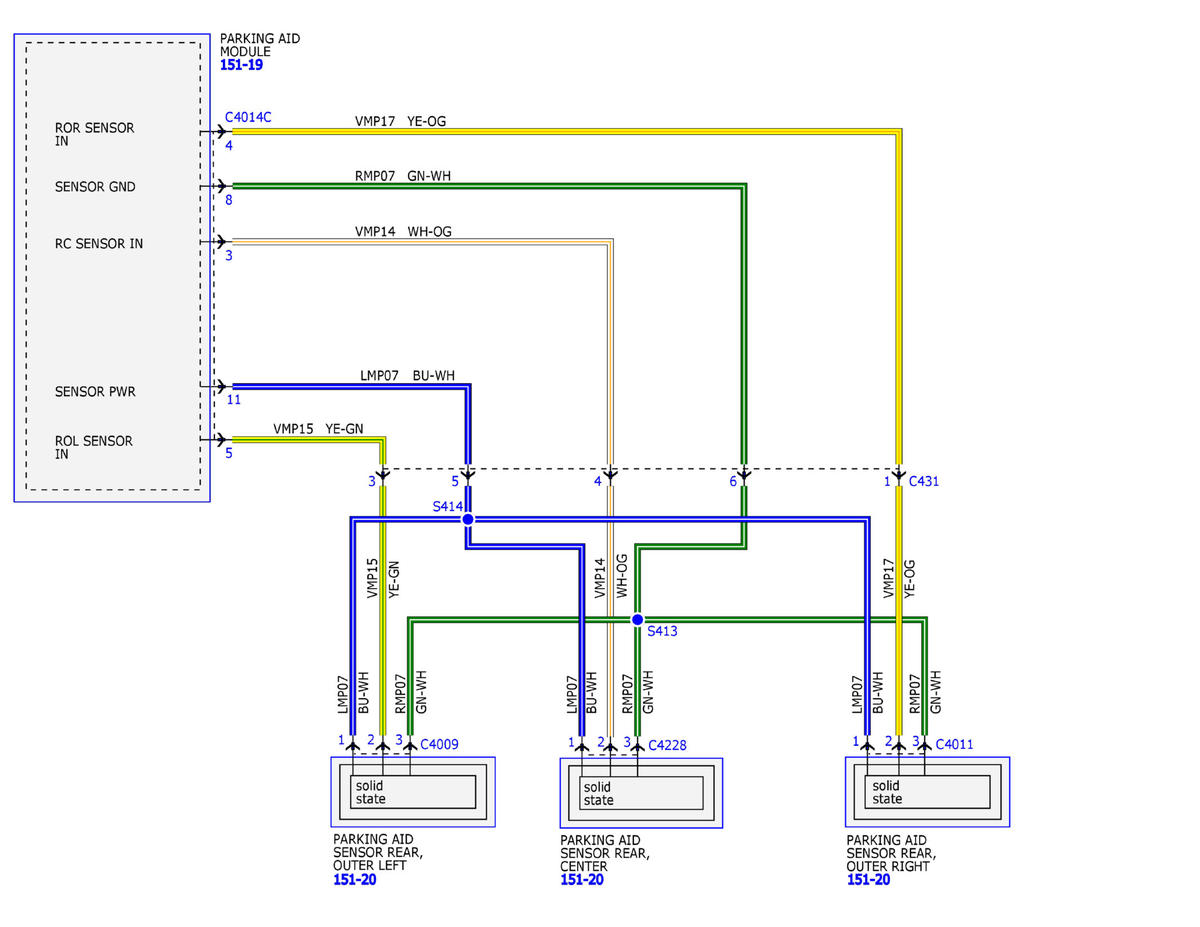

Fig 2: Parking Aid Wiring Diagram (2 Of 5)
GFDW88906Courtesy of FORD MOTOR COMPANY

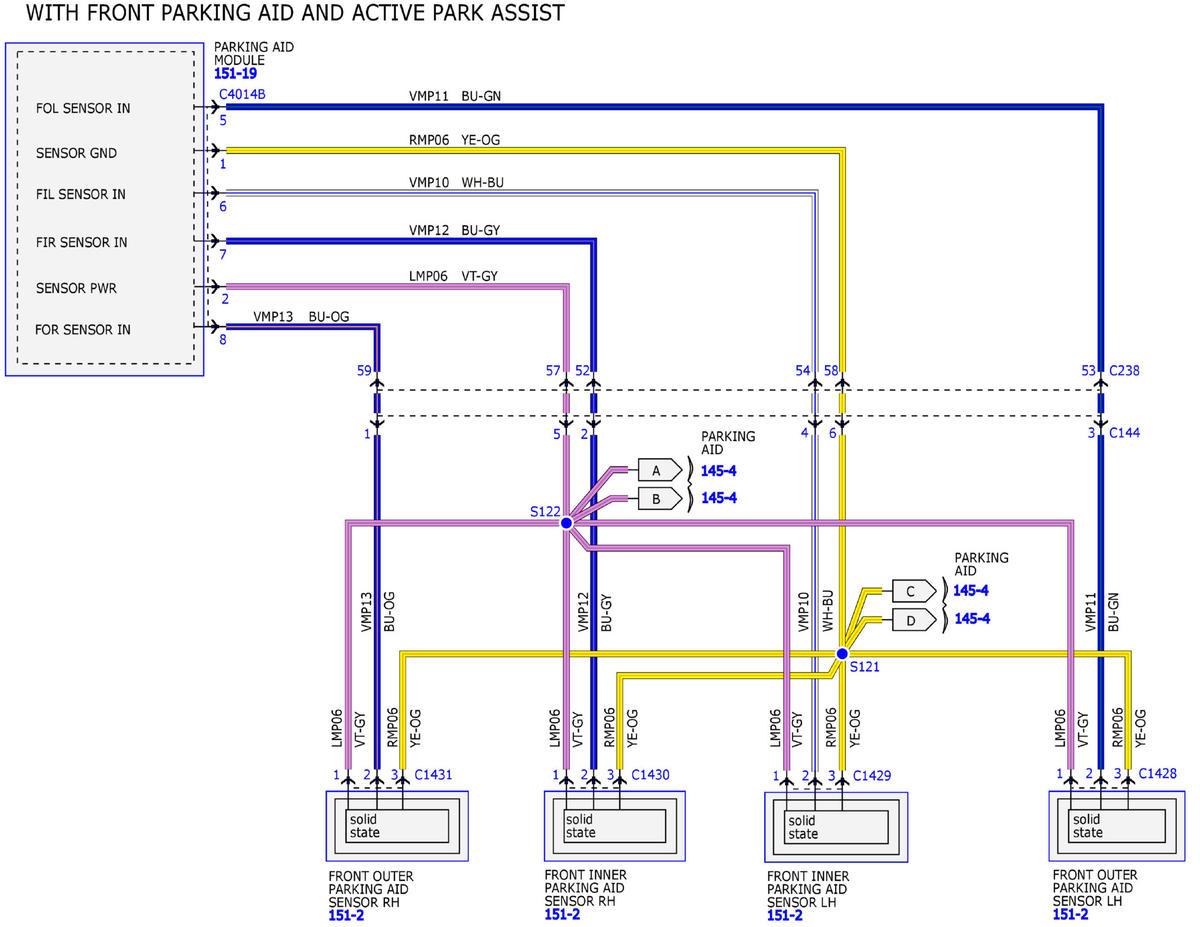

Fig 3: Parking Aid Wiring Diagram (3 Of 5)
GFDW88907Courtesy of FORD MOTOR COMPANY

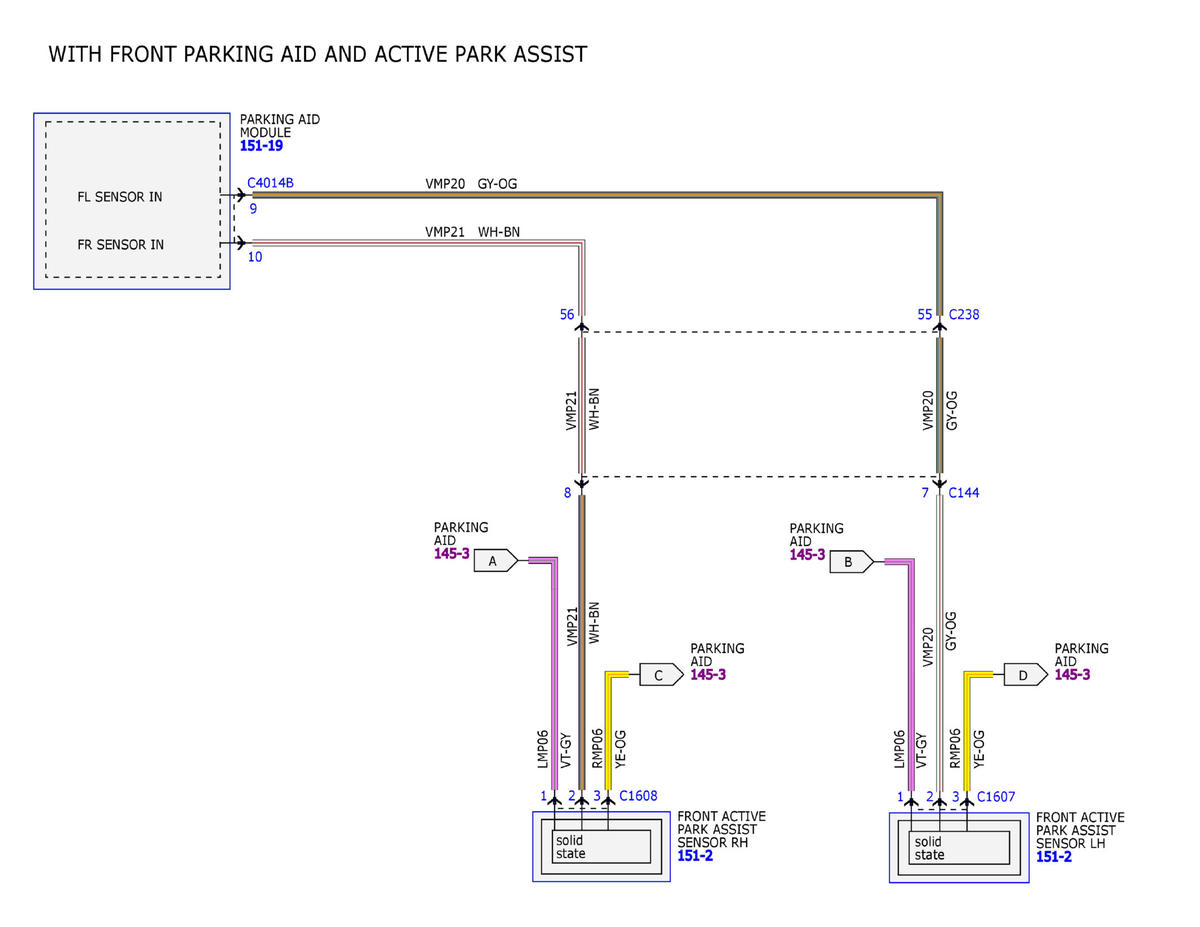

Fig 4: Parking Aid Wiring Diagram (4 Of 5)
GFDW88908Courtesy of FORD MOTOR COMPANY

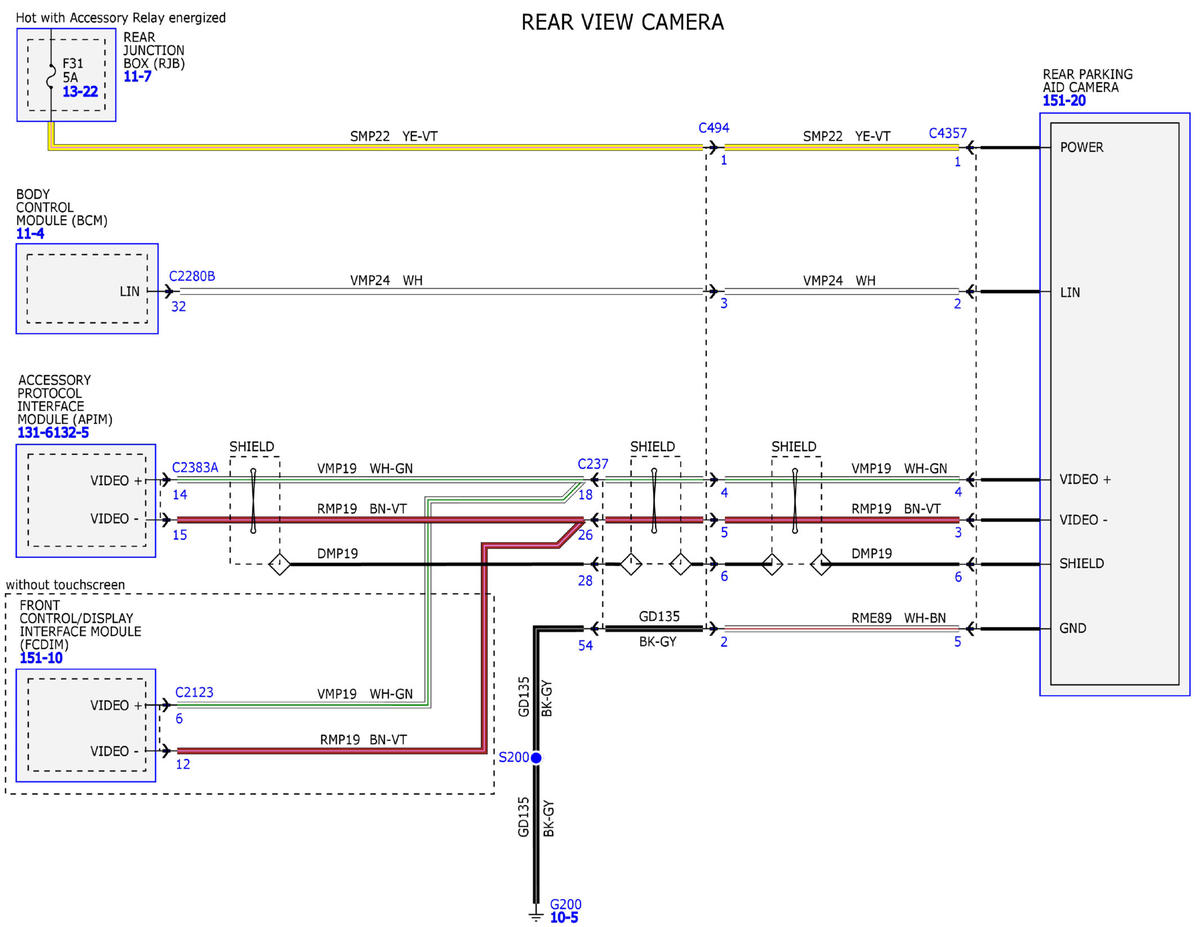

Fig 5: Parking Aid Wiring Diagram (5 Of 5)
GFDW88909Courtesy of FORD MOTOR COMPANY
