Interior Lamps

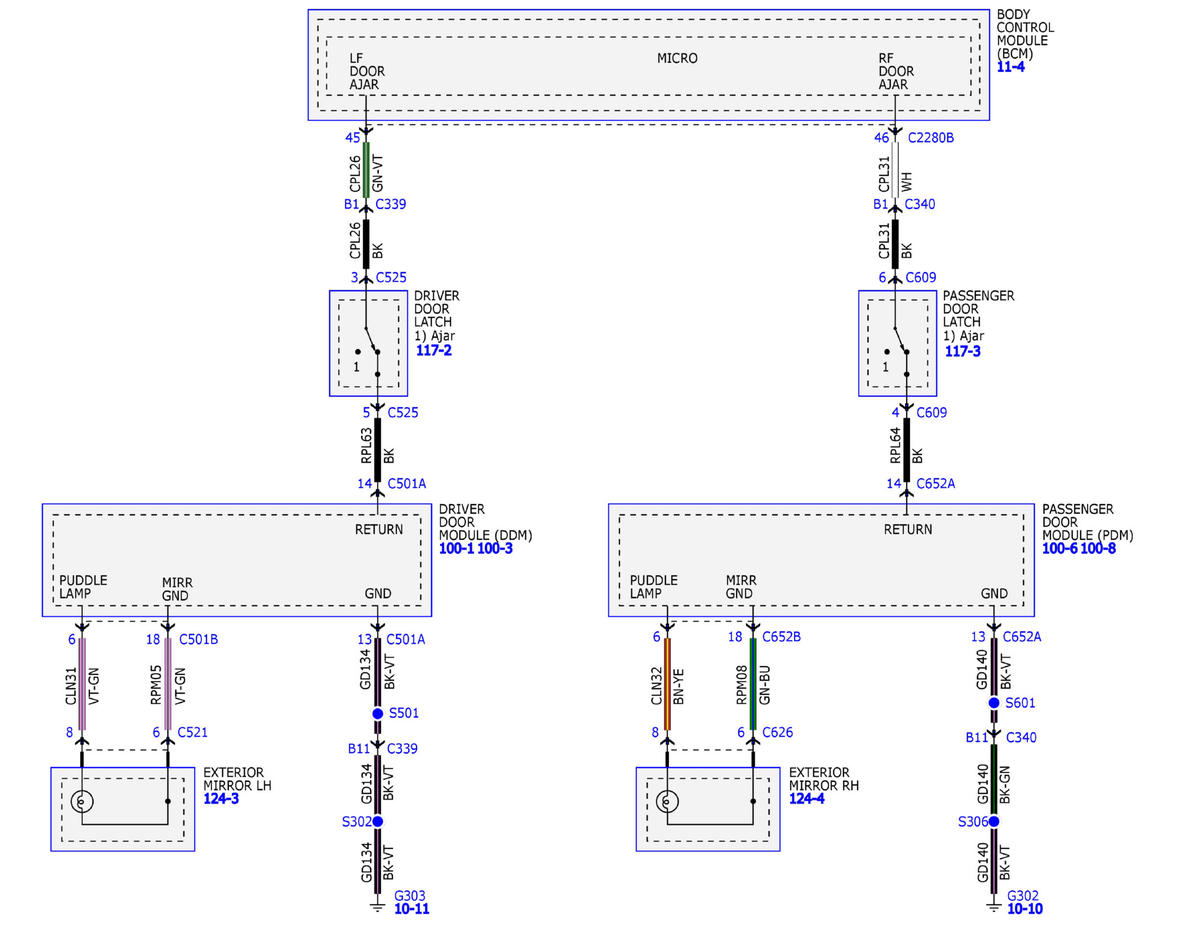

Fig 1: Interior Lamps Wiring Diagram (1 Of 8)
GFDW88887Courtesy of FORD MOTOR COMPANY

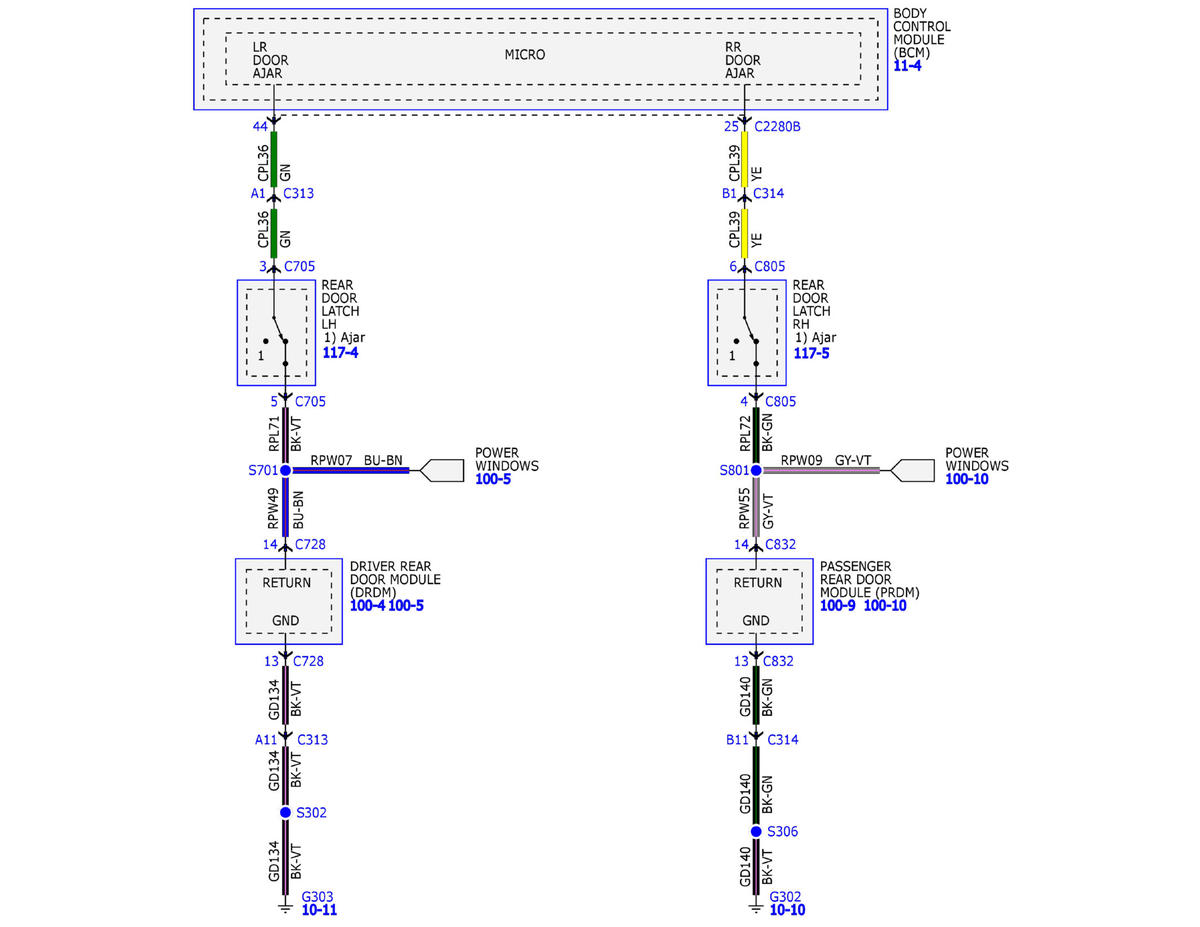

Fig 2: Interior Lamps Wiring Diagram (2 Of 8)
GFDW88888Courtesy of FORD MOTOR COMPANY

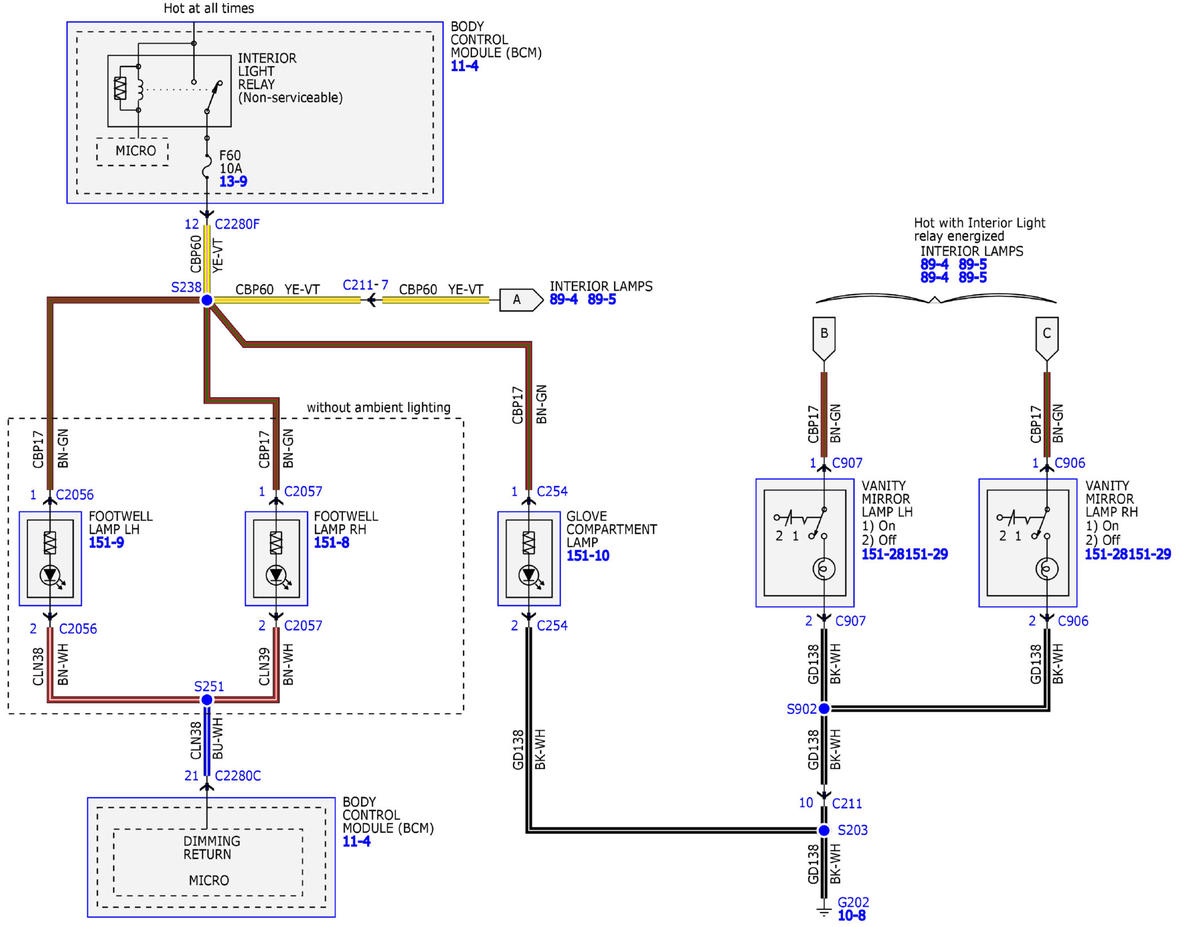

Fig 3: Interior Lamps Wiring Diagram (3 Of 8)
GFDW88889Courtesy of FORD MOTOR COMPANY

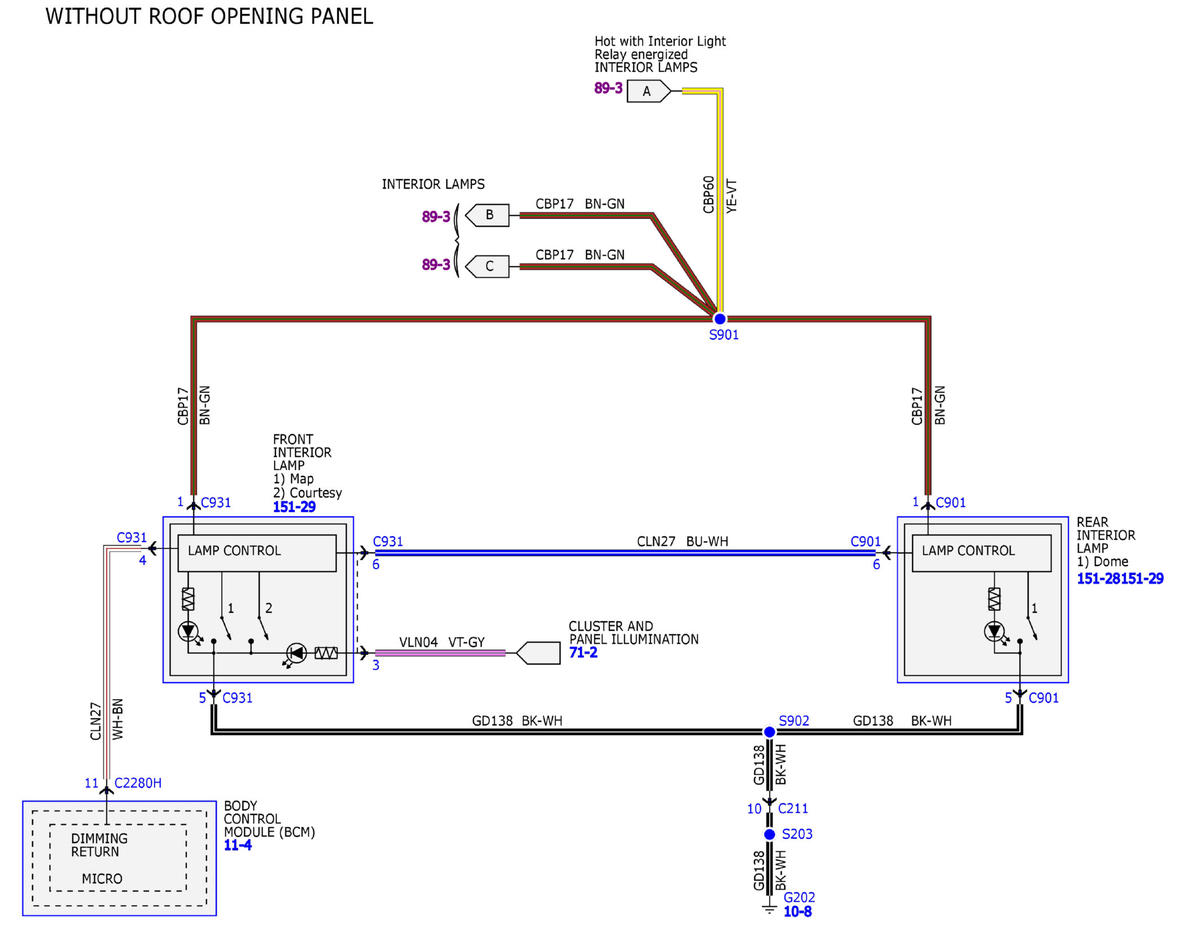

Fig 4: Interior Lamps Wiring Diagram (4 Of 8)
GFDW88890Courtesy of FORD MOTOR COMPANY

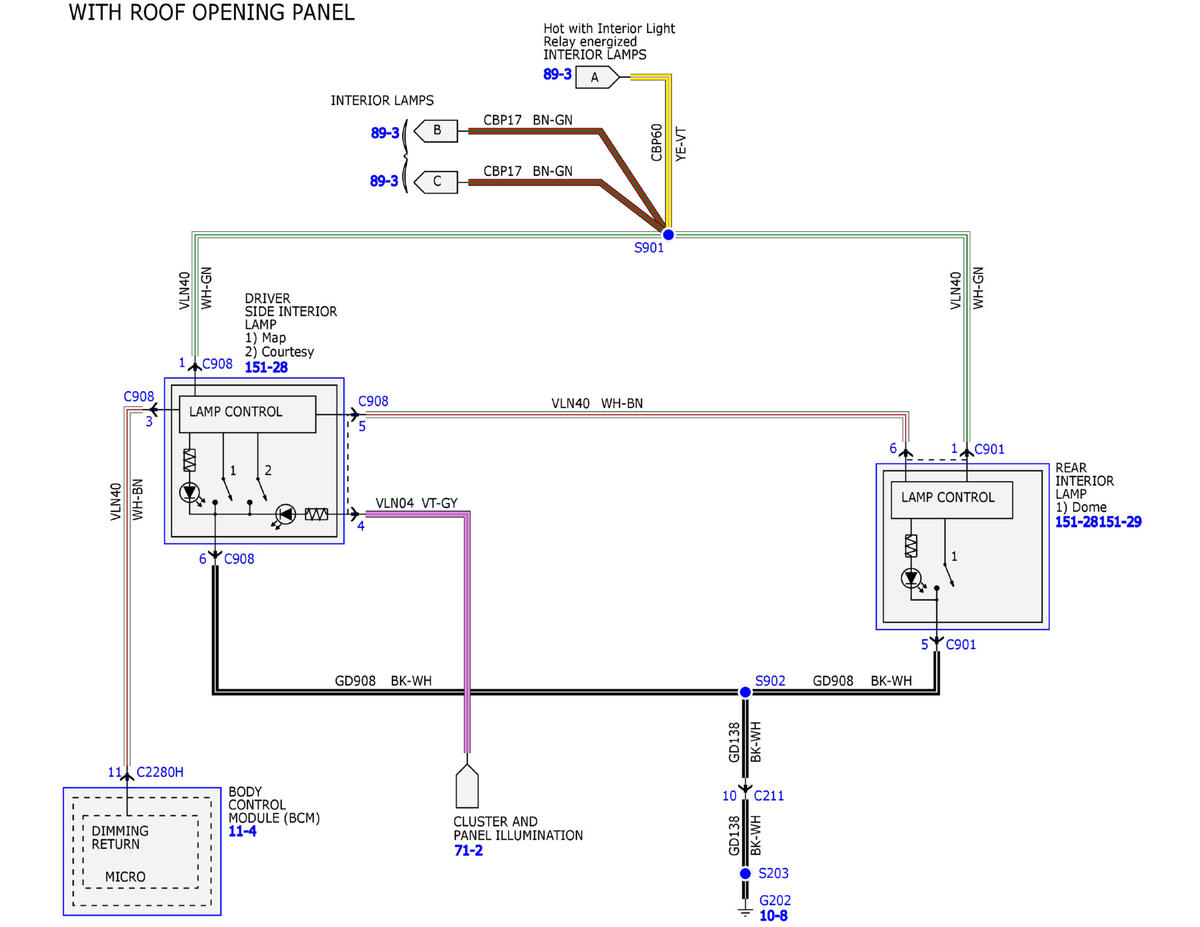

Fig 5: Interior Lamps Wiring Diagram (5 Of 8)
GFDW88891Courtesy of FORD MOTOR COMPANY

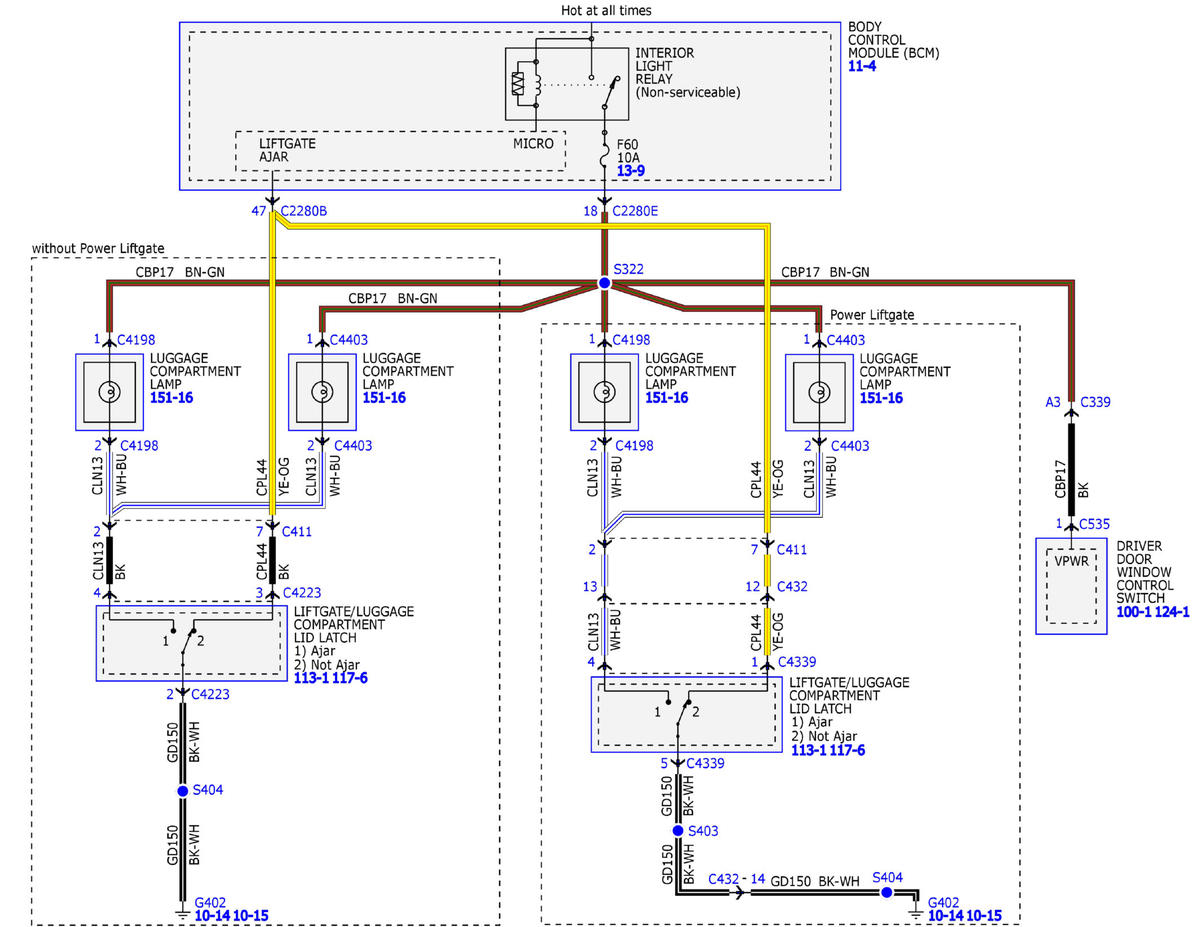

Fig 6: Interior Lamps Wiring Diagram (6 Of 8)
GFDW88892Courtesy of FORD MOTOR COMPANY

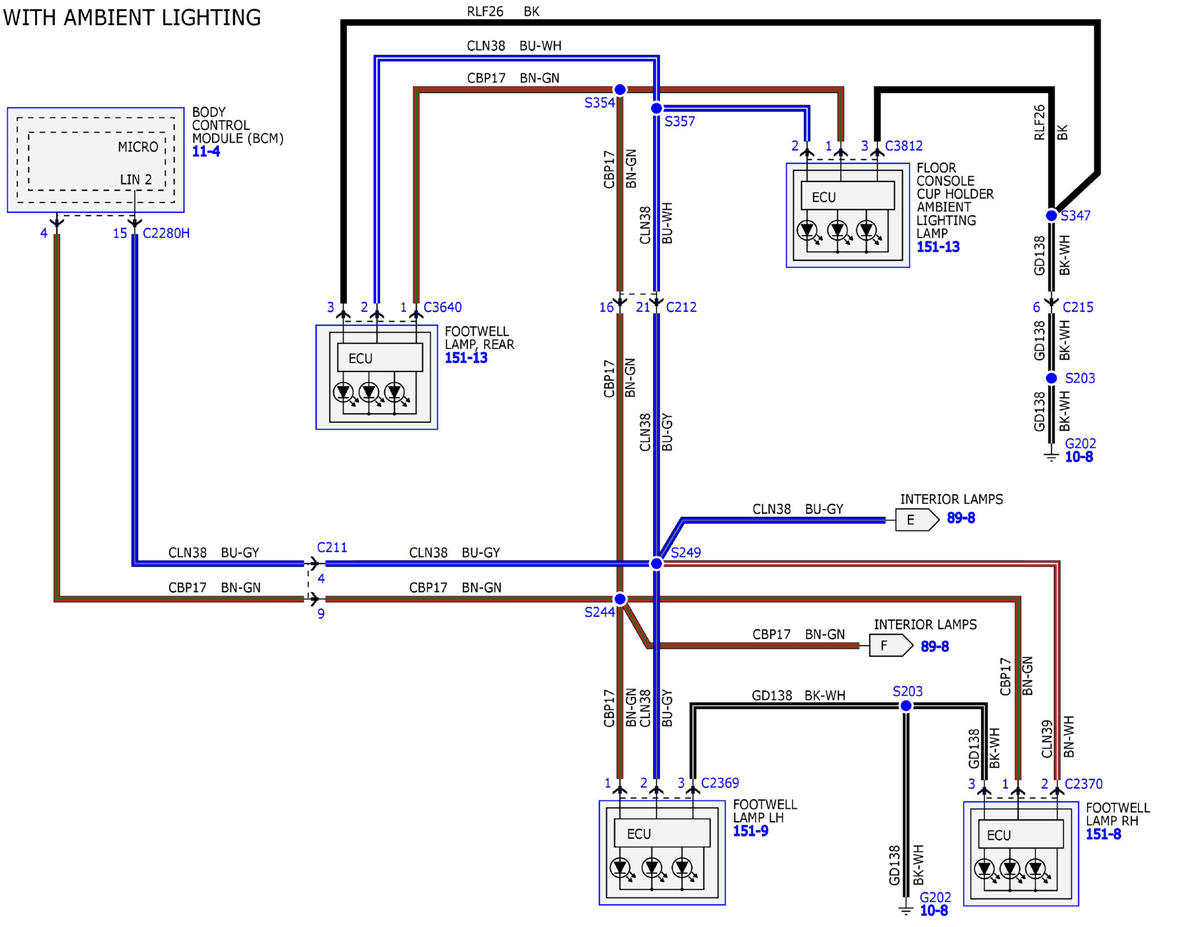

Fig 7: Interior Lamps Wiring Diagram (7 Of 8)
GFDW88893Courtesy of FORD MOTOR COMPANY

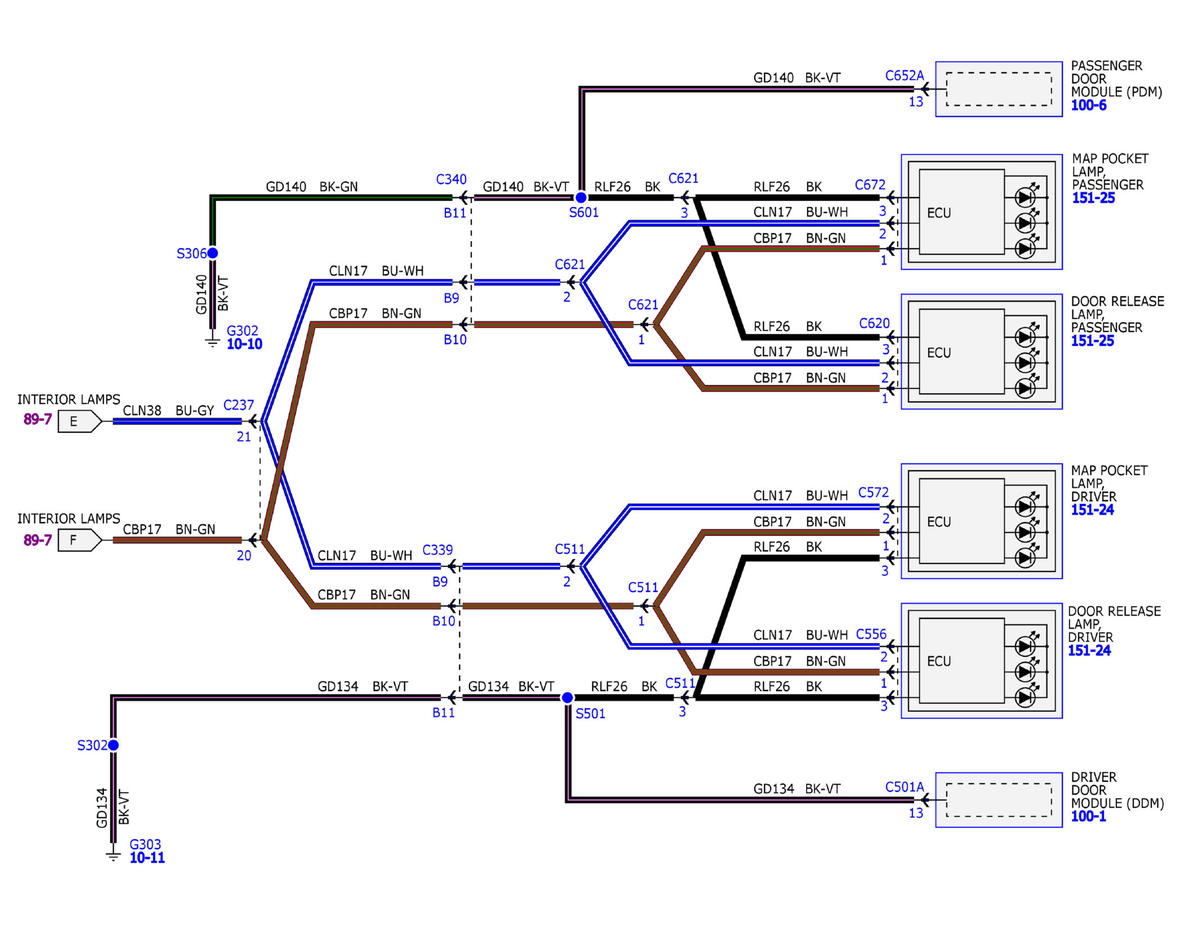

Fig 8: Interior Lamps Wiring Diagram (8 Of 8)
GFDW88894Courtesy of FORD MOTOR COMPANY
