Fuel Filler Door Release

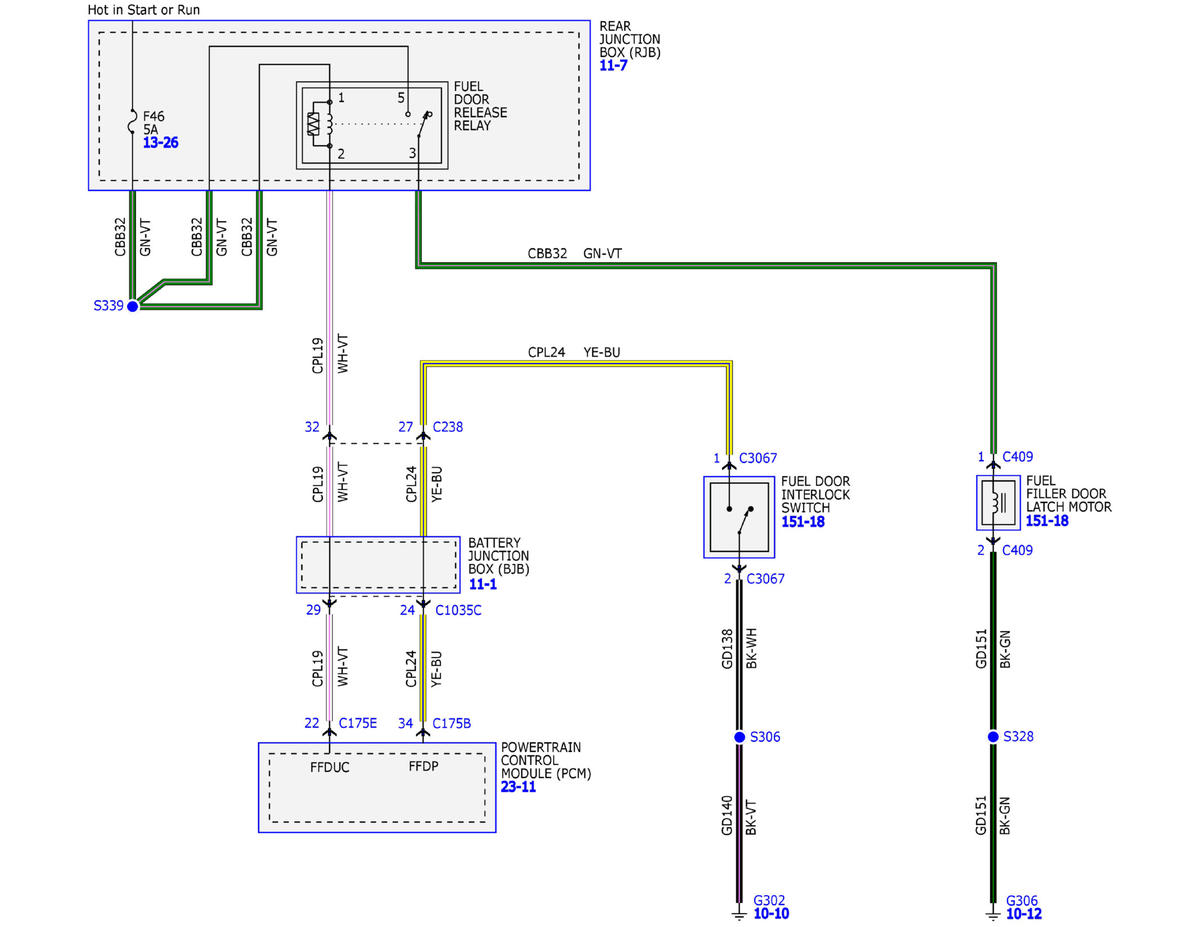

Fig 1: Fuel Filler Door Release Wiring Diagram

GFDW88877

Courtesy of FORD MOTOR COMPANY
