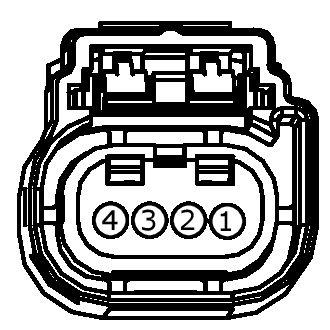

Connector End View (C4378) - PASSIVE ANTI-THEFT SYSTEM (PATS) REAR ANTENNA

Connector:C4378

Description

PASSIVE ANTI-THEFT SYSTEM (PATS) REAR ANTENNA

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK08 (WH-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR +
2	RPK08 (GN-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR -
3	*	*	Not Used
4	*	*	Not Used

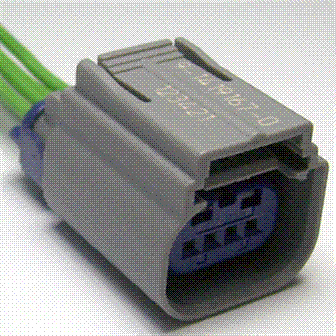

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1328

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Antenna - Keyless Entry

Lamp - Charge Port
