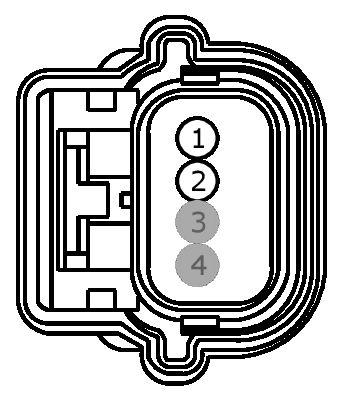

Connector End View (C326) - PASSIVE ANTI-THEFT SYSTEM (PATS) CENTER ANTENNA

Connector:C326

Description

PASSIVE ANTI-THEFT SYSTEM (PATS) CENTER ANTENNA

Color

Harness

14B079

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPK06 (GN-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) -
2	VPK06 (GY-VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) +
3	*	*	Not Used
4	*	*	Not Used

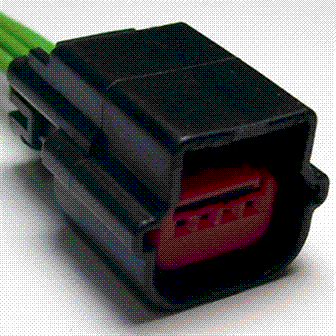

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Antenna - Keyless Entry

Sensor - Brake Pedal Position

Sensor - Clutch Master Cylinder
