Connector End View (C1810) - CABIN HEATER COOLANT DIVERTER VALVE

Connector:C1810

Description

CABIN HEATER COOLANT DIVERTER VALVE

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE167 (YE-OG)	18	CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE
2	CE167 (YE-OG)	18	CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE

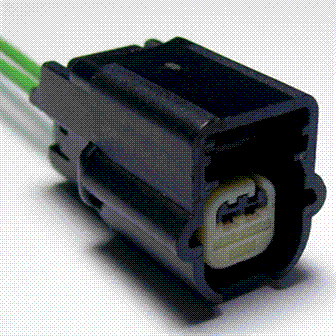

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Crash (Engine Compartment)

Sensor - Seat Track Position

Sensor - Side Impact

Solenoid - Down Shift

Solenoid - Torque Control Coupling

Valve - Heated PCV

Valve - Heater Core Shut Off

Valve - Transmission Fluid Warmer
