Seat Position Sensor, Passenger
Seat Position Sensor, Passenger

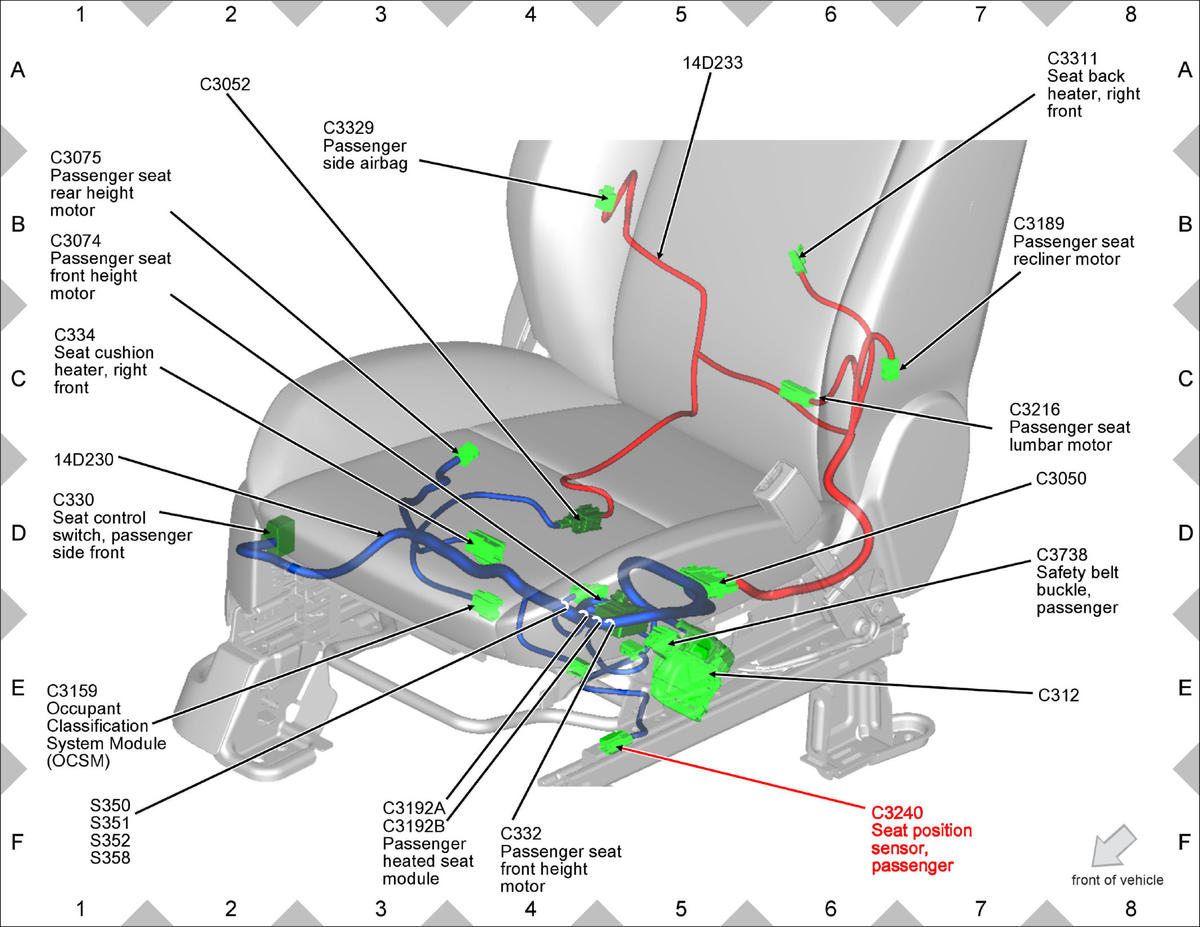

Fig 1: Seat Position Sensor, Passenger Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
