Manifold Absolute Pressure (MAP) Sensor

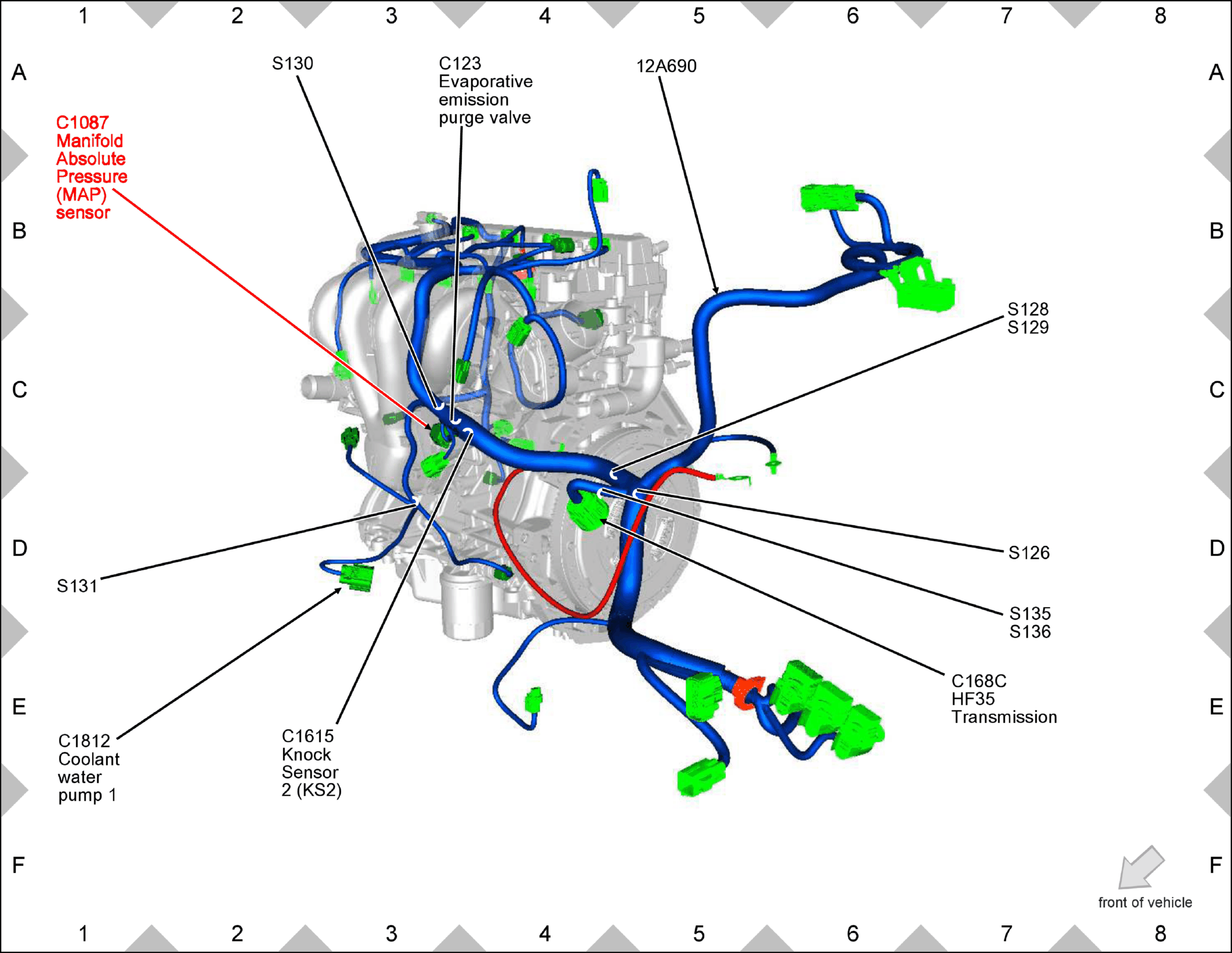

Fig 1: Manifold Absolute Pressure (MAP) Sensor Components Location

GFDW66218

Courtesy of FORD MOTOR COMPANY
