Heating, Ventilation And Air Conditioning (HVAC) Control module

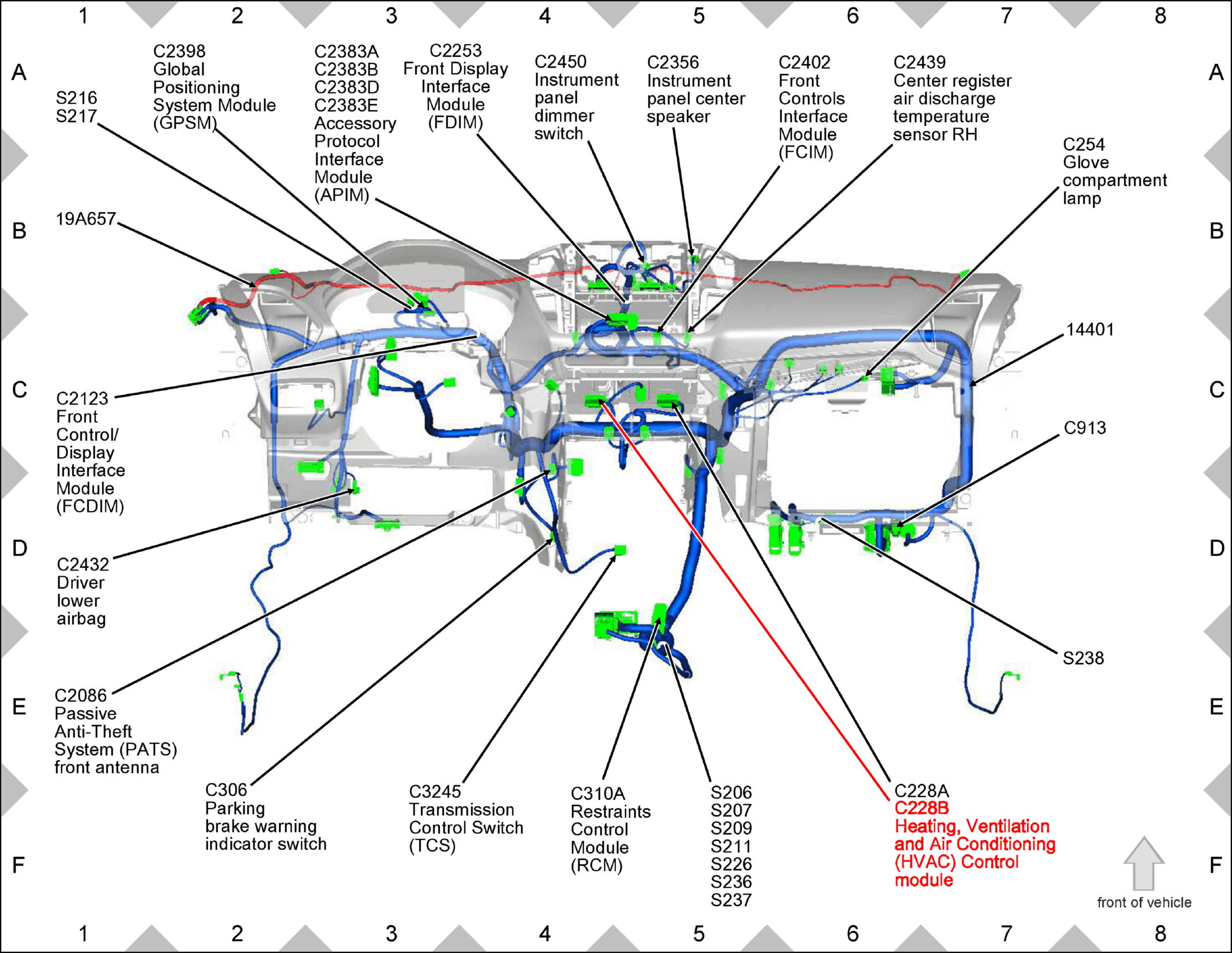

Fig 1: Heating, Ventilation And Air Conditioning (HVAC) Control Module Components Location
GFDW66180Courtesy of FORD MOTOR COMPANY
