Engine Coolant Temperature 2 Sensor (ECT2)

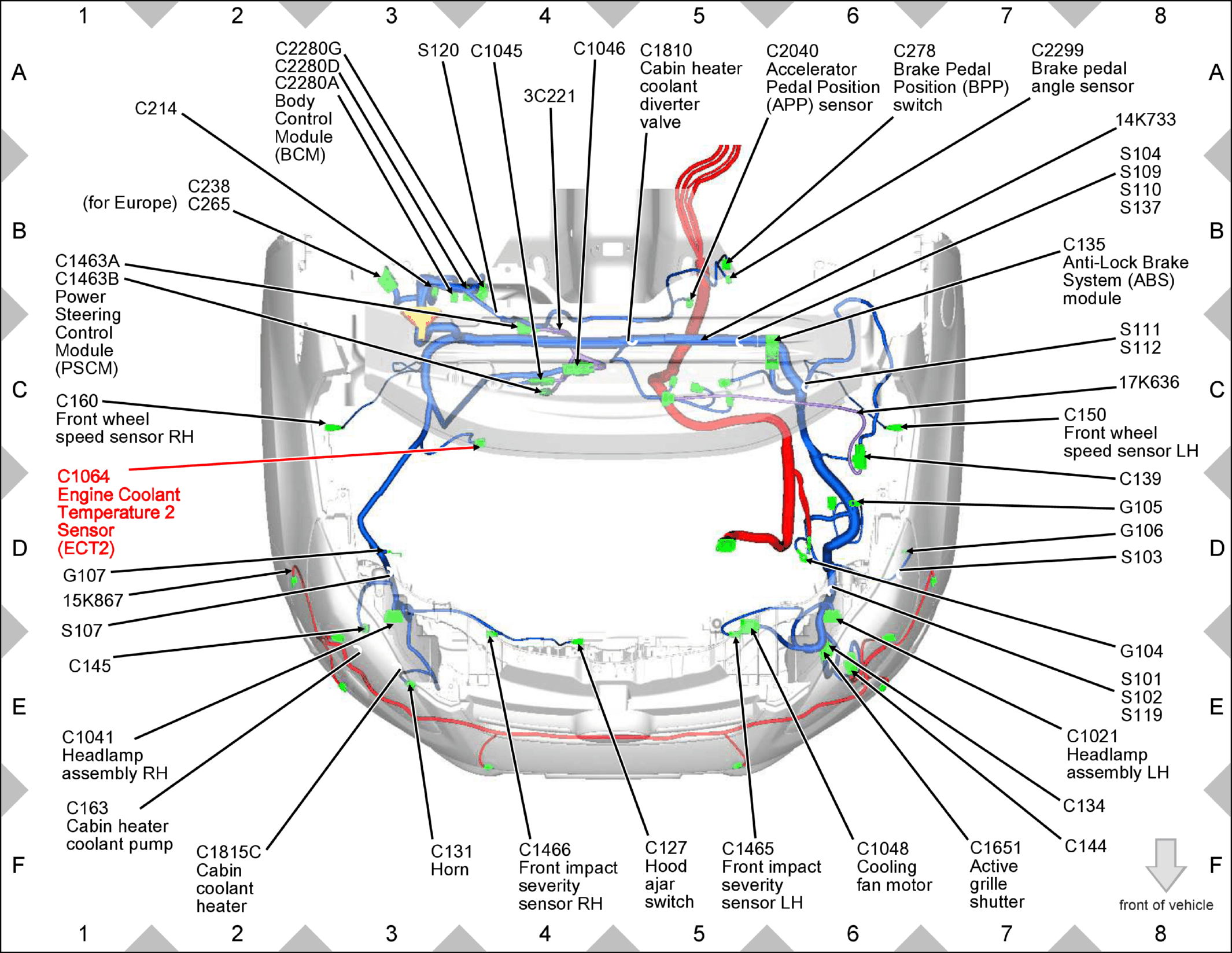

Fig 1: Engine Coolant Temperature 2 Sensor (ECT2) Components Location

GFDW66125

Courtesy of FORD MOTOR COMPANY
