C-Max Hybrid Titanium
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Wiring Diagrams
>>
OEM Component Harness Location Charts
>>
Component Location Charts
>>
Data Link Connector (DLC)
Data Link Connector (DLC)

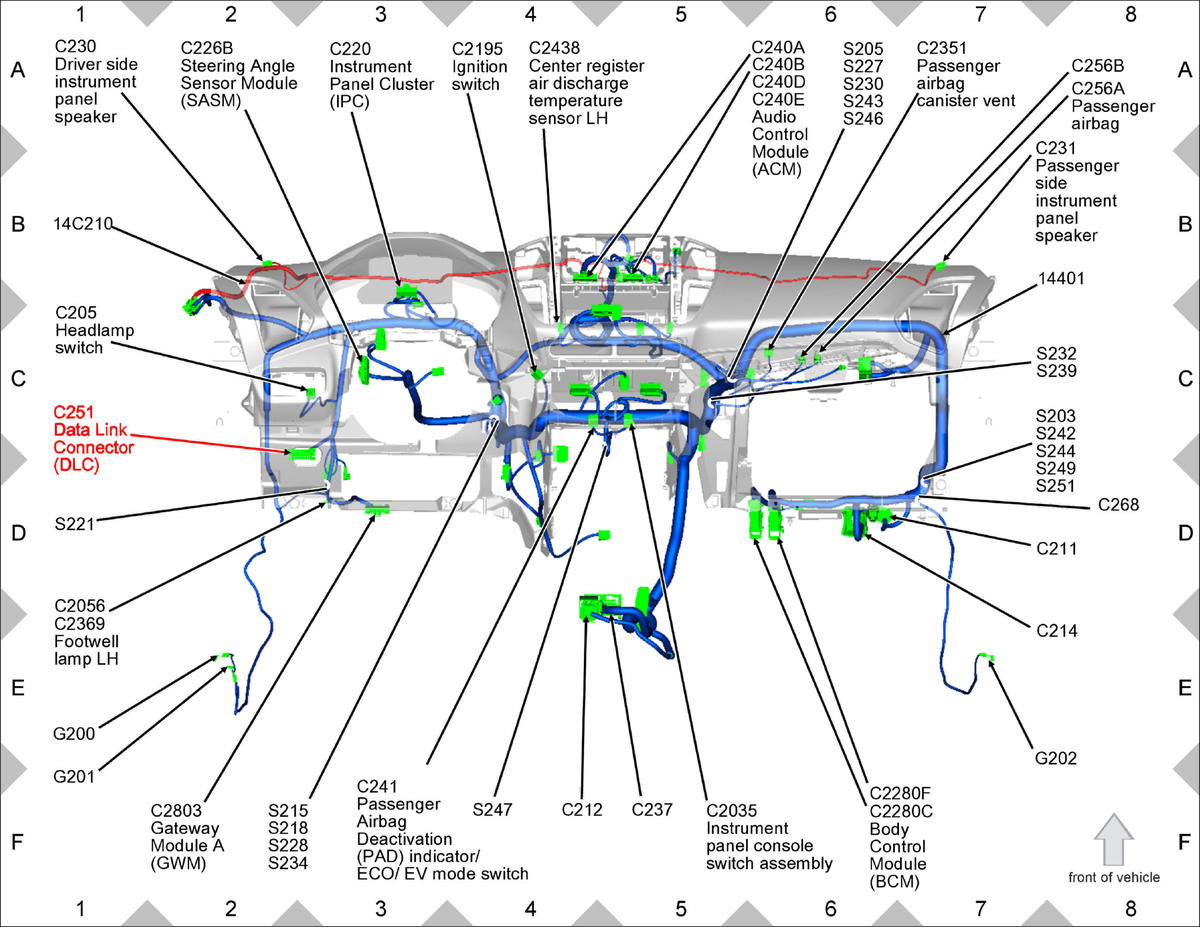

Fig 1: Data Link Connector (DLC) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
