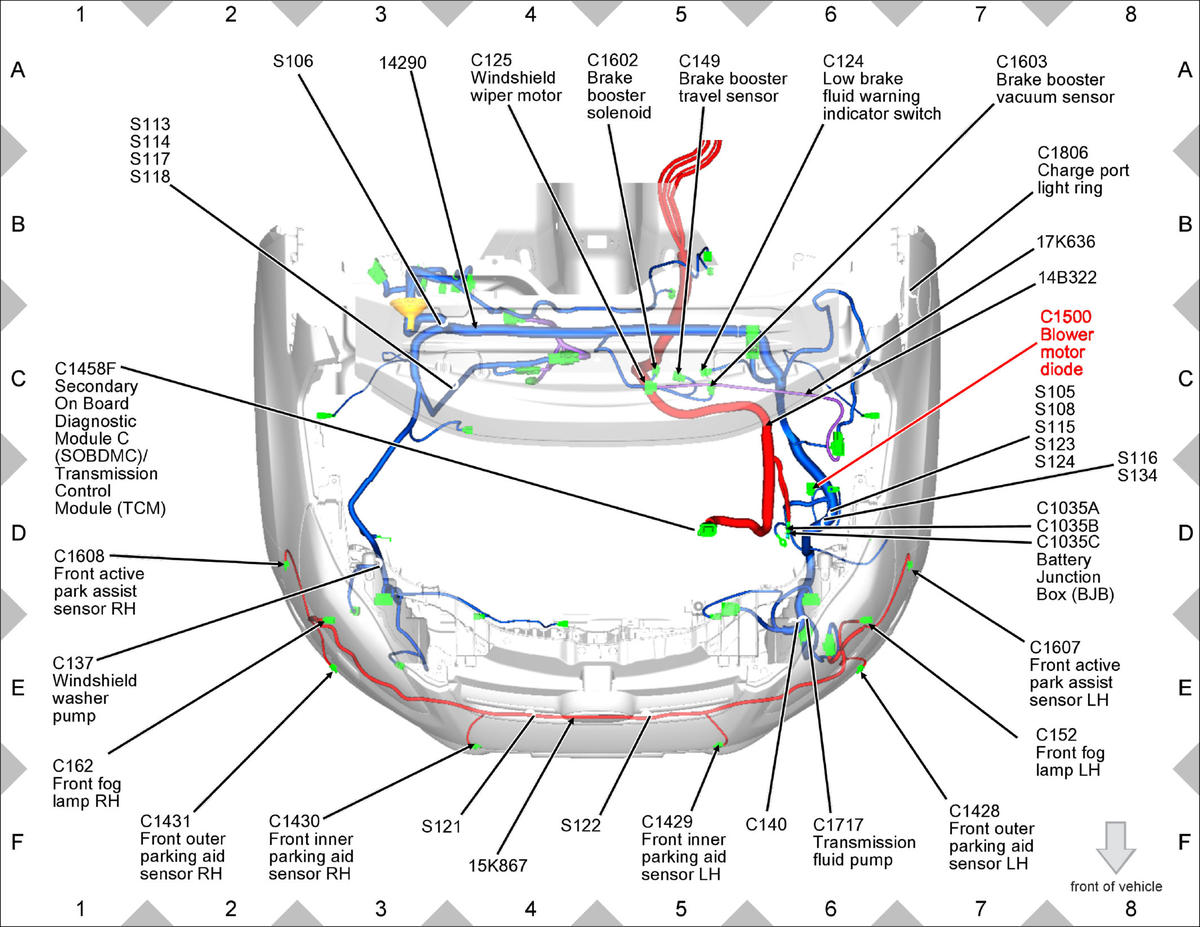

Home >> Ford >> 2017 >> C-Max Hybrid Titanium >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts >> Component Location Charts >> Blower Motor Diode
