Battery Cables - Hybrid Electric Vehicle (HEV): Removal

NOTE: When the battery (or PCM) is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The charging system set point may also vary. The vehicle may need to be driven to relearn its strategy.

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health And Safety Precautions .
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

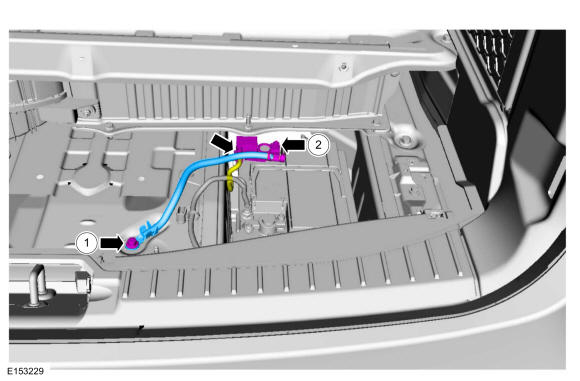

1. Torque: 16 lb.ft (22 Nm)
2. Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
