Battery - Hybrid Electric Vehicle (HEV): Removal

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Refer to: Battery Disconnect and Connect - Hybrid Electric Vehicle (HEV) .

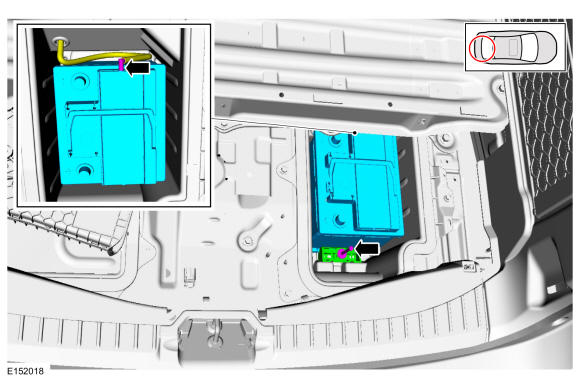

  3. Torque: 71 lb.in (8 Nm)
    GFD224162Courtesy of FORD MOTOR COMPANY
