Parking Brake Control: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Floor Console .

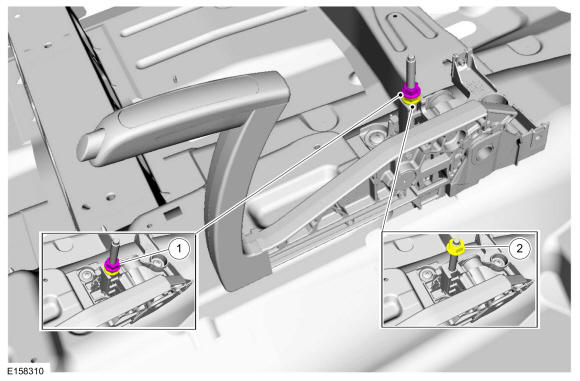

  2. GFD223068Courtesy of FORD MOTOR COMPANY
  3. Refer to: Jacking And Lifting - Overview .
  4. Discard the specified component. Follow local disposal regulations.

    Torque: 35 lb.ft (48 Nm)

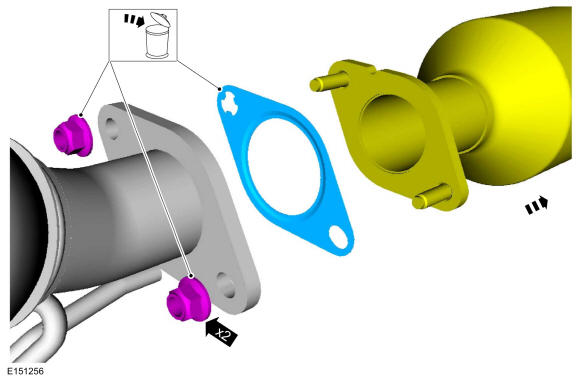

    GFD223069Courtesy of FORD MOTOR COMPANY
  5. If equipped.

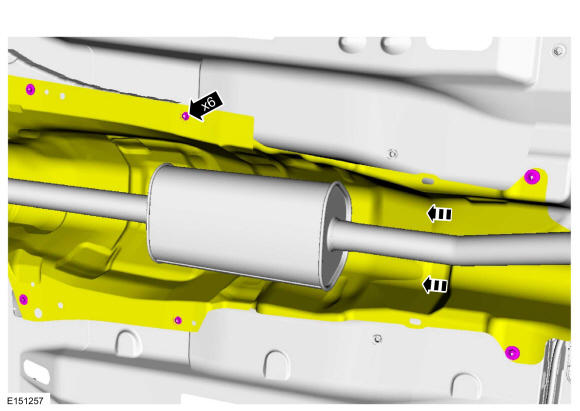

    GFD223070Courtesy of FORD MOTOR COMPANY

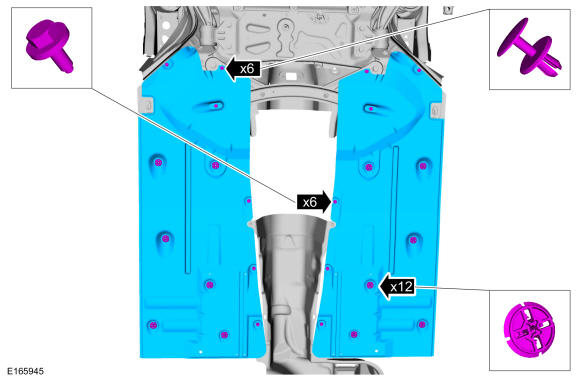

  6. GFD222906Courtesy of FORD MOTOR COMPANY

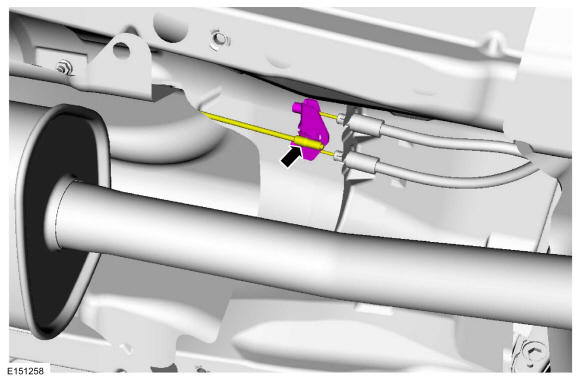

  7. GFD223071Courtesy of FORD MOTOR COMPANY

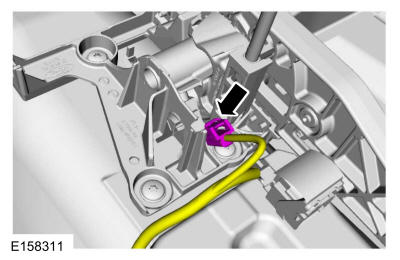

  8. GFD223072Courtesy of FORD MOTOR COMPANY
  9. NOTE: Make sure that the seal is correctly located.

    Visual check.

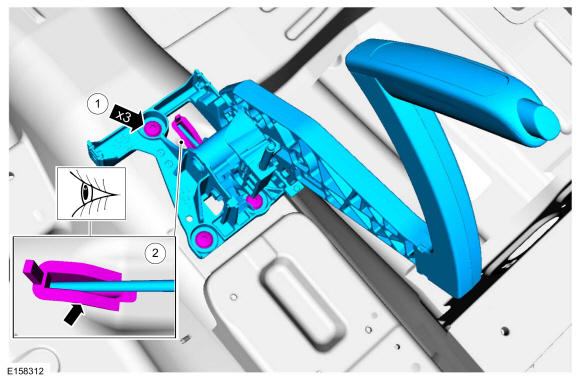

    GFD223073Courtesy of FORD MOTOR COMPANY
