Parking Brake Cable: Removal

NOTE: Removal steps in this procedure may contain installation instructions.
  1. GFD223061Courtesy of FORD MOTOR COMPANY
  2. If equipped.
    GFD223062Courtesy of FORD MOTOR COMPANY
  3. GFD223063Courtesy of FORD MOTOR COMPANY
  4. Refer to: Jacking And Lifting - Overview
  5. Torque: 35 lb.ft (48 Nm)
    GFD223069Courtesy of FORD MOTOR COMPANY
  6. If equipped.
    GFD222906Courtesy of FORD MOTOR COMPANY
  7. GFD223070Courtesy of FORD MOTOR COMPANY

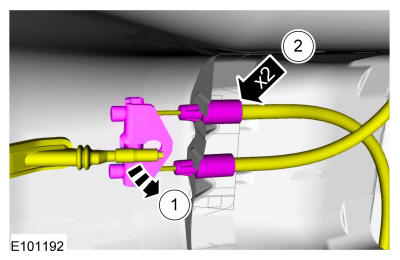

  8. GFD223074Courtesy of FORD MOTOR COMPANY

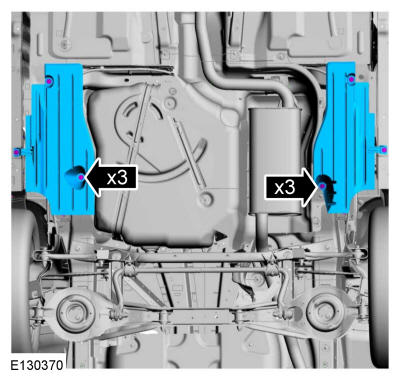

  9. GFD223075Courtesy of FORD MOTOR COMPANY

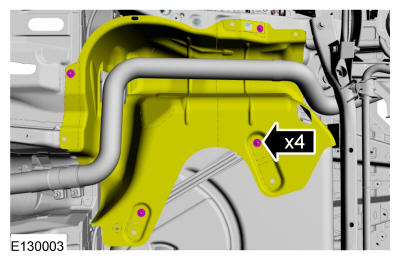

  10. GFD223076Courtesy of FORD MOTOR COMPANY

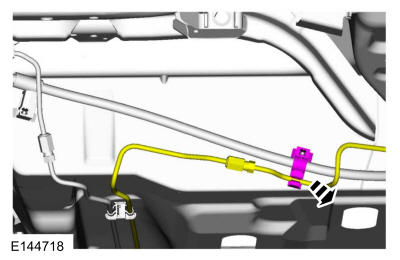

  11. GFD223077Courtesy of FORD MOTOR COMPANY
  12. GFD223053Courtesy of FORD MOTOR COMPANY
  13. Torque:
    1. 97 lb.in (11 Nm)
    2. 17 lb.in (1.9 Nm)

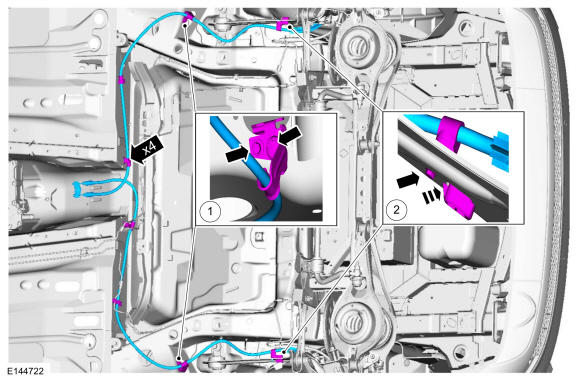

    GFD223078Courtesy of FORD MOTOR COMPANY
