Rear Brake Pads: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Health And Safety Precautions .
  2. Remove the wheel and tire. Refer to: Wheel And Tire .
  3. Remove the brake caliper spring.
    GFD223049Courtesy of FORD MOTOR COMPANY
  4. NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.
    NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    1. Remove the caps.
    2. Remove the brake caliper guide pin bolts.

      Torque: 21 lb.ft (28 Nm)

    3. Postion aside the brake caliper.

    GFD223050Courtesy of FORD MOTOR COMPANY
  5. Remove the brake pads.
    GFD223051Courtesy of FORD MOTOR COMPANY

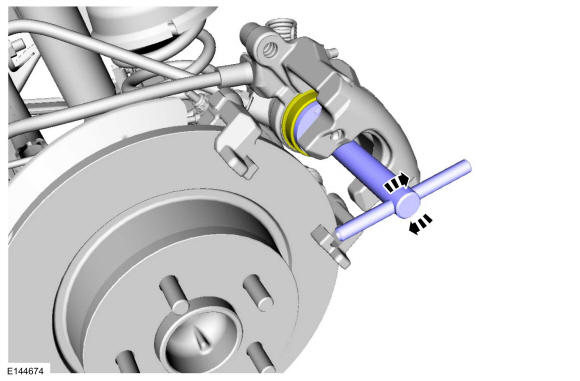

  6. Retract the brake caliper piston into the brake caliper bore.Use the General Equipment: Brake Caliper Piston Retractor
GFD223052Courtesy of FORD MOTOR COMPANY
