Rear Brake Flexible Hose: Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health And Safety Precautions .
Remove the wheel and tire. Refer to: Wheel And Tire .

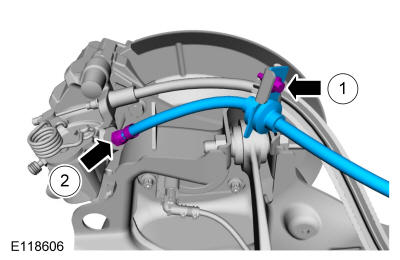

1. Disconnect the brake tube fitting.
2. Remove the clip and detach the brake hose from the bracket.
  Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY

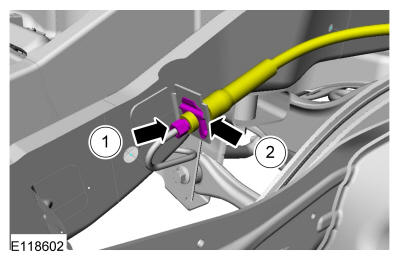

1. Remove the bolt.
  Torque: 22 lb.ft (30 Nm)
2. Disconnect the brake hose fitting and remove the brake flexible hose.
  Torque:1: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
