Rear Brake Disc: Removal

NOTE: Removal steps in this procedure may contain installation instructions.
  1. Remove the brake caliper anchor plate. Refer to: Brake Caliper Anchor Plate .

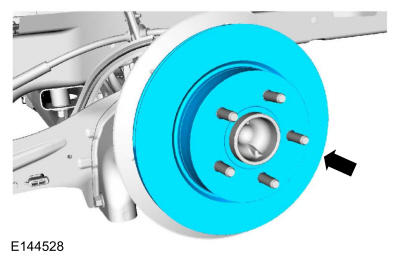

  2. Remove the brake disc.
GFD223057Courtesy of FORD MOTOR COMPANY
