Rear Brake Disc Shield: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Health And Safety Precautions .
  2. Remove the wheel bearing and wheel hub. Refer to: Wheel Bearing And Wheel Hub .

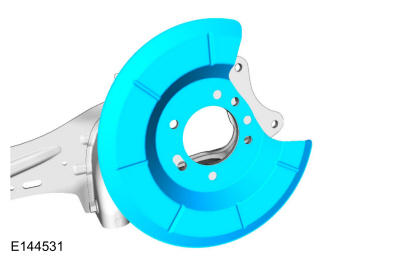

  3. Remove the brake disc shield.
GFD223059Courtesy of FORD MOTOR COMPANY
