Rear Brake Caliper: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Health And Safety Precautions .
  2. Remove the rear brake flexible hose. Refer to: Rear Brake Flexible Hose .
  3. On both sides.

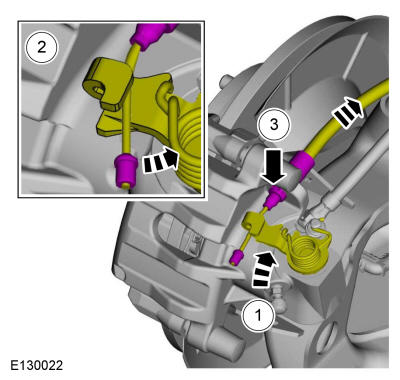

    1. Rotate the brake caliper lever.
    2. Detach the parking brake cable from the brake caliper lever.
    3. Detach the parking brake cable from the brake caliper bracket.

    GFD223053Courtesy of FORD MOTOR COMPANY

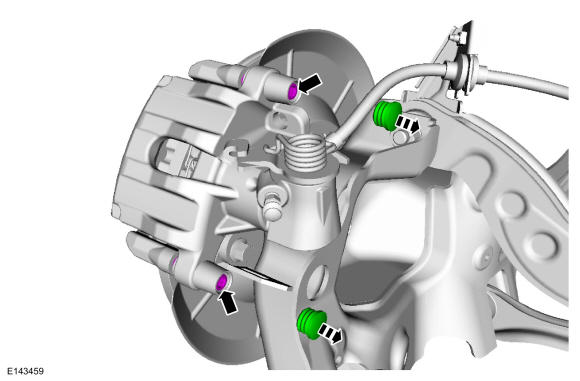

    1. Remove the caps.
    2. Remove the brake caliper guide pin bolts.

      Torque: 21 lb.ft (28 Nm)

GFD223054Courtesy of FORD MOTOR COMPANY
