Rear Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. On both sides. Remove the pin-type retainers and position the inner wheel house liner aside.

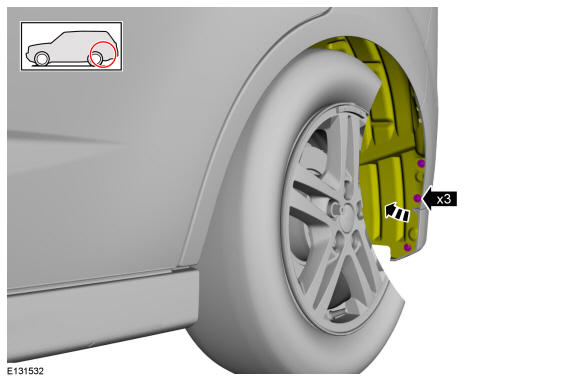

    GFD225028Courtesy of FORD MOTOR COMPANY
  2. On both sides. Remove the screw.

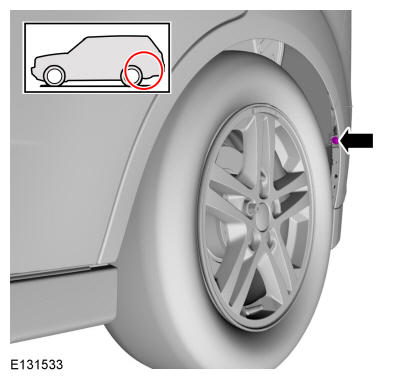

    GFD225029Courtesy of FORD MOTOR COMPANY
  3. On both sides. Remove the screw.

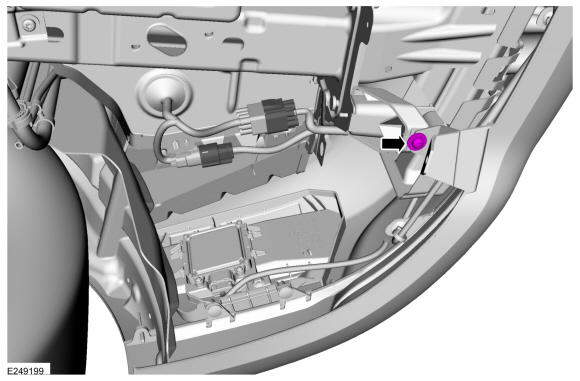

    GFD225030Courtesy of FORD MOTOR COMPANY
  4. Disconnect the electrical connectors and separate the wiring harness guide.

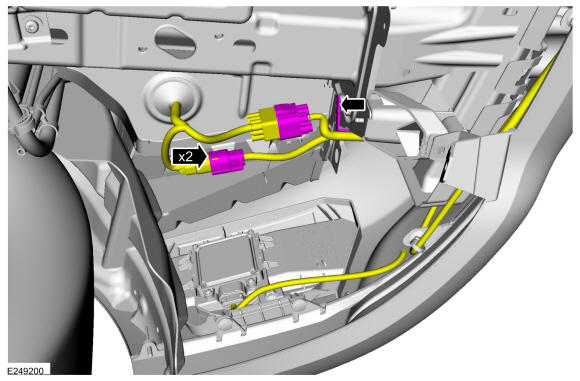

    GFD225031Courtesy of FORD MOTOR COMPANY
  5. If equipped.Disconnect the electrical connector.

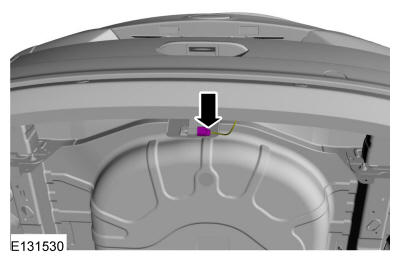

    GFD225032Courtesy of FORD MOTOR COMPANY
  6. Remove the rear bumper cover.
    • Remove the rear bumper cover screws.
    • Release the outer edges of the bumper cover from the brackets.
    • With the help of an assistant, separate the rear bumper cover from the vehicle.

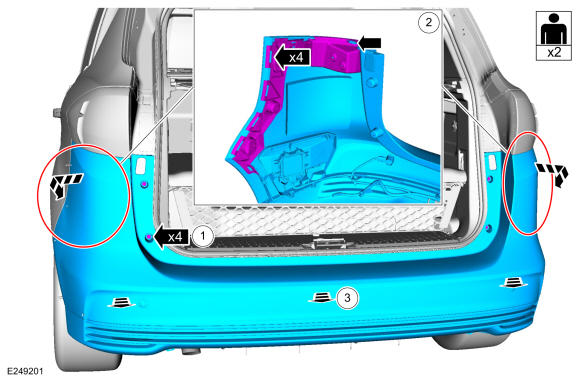

    GFD225033Courtesy of FORD MOTOR COMPANY
