Cowl Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health And Safety Precautions .

  2. Refer to: Cowl Panel Grille .
  3. Refer to: Air Cleaner .

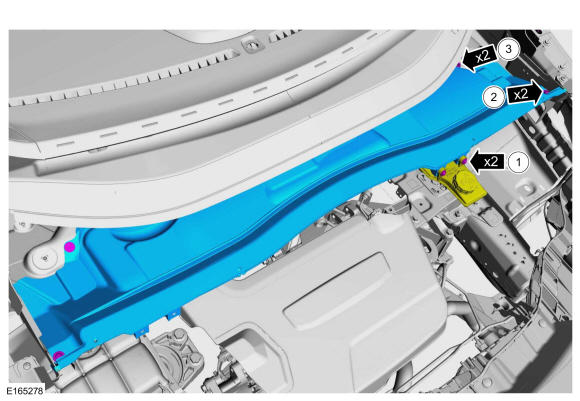

    1. -
    2. -
    3. Torque: 97 lb.in (11 Nm)
      GFD224556Courtesy of FORD MOTOR COMPANY
