Cowl Panel Grille: Removal

  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health And Safety Precautions .

  2. On both sides. Refer to: Windshield Wiper Pivot Arm .

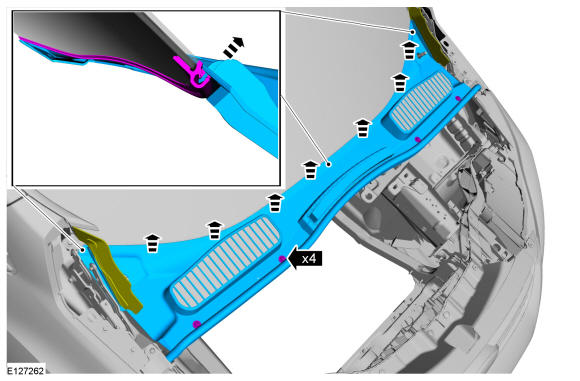

    GFD224548Courtesy of FORD MOTOR COMPANY
