Active Grille Shutter: Removal

  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health And Safety Precautions .

  2. Refer to: Front Bumper .

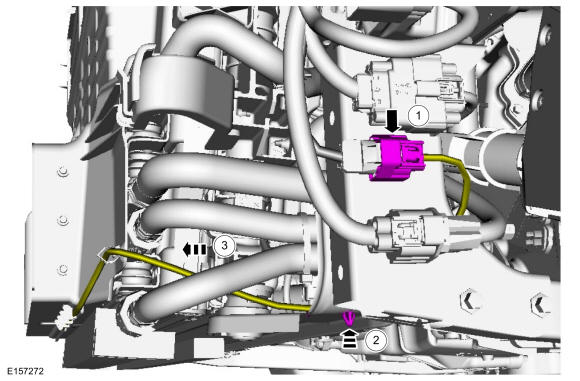

  3. GFD224546Courtesy of FORD MOTOR COMPANY

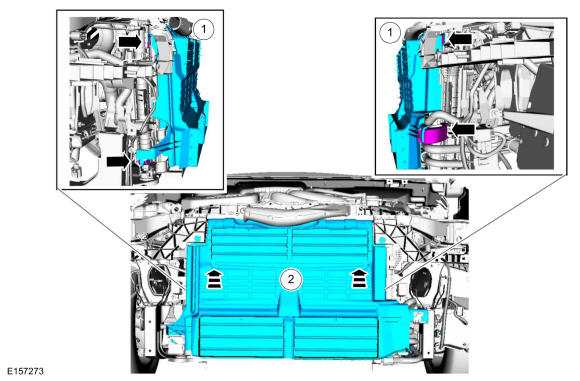

  4. GFD224547Courtesy of FORD MOTOR COMPANY
