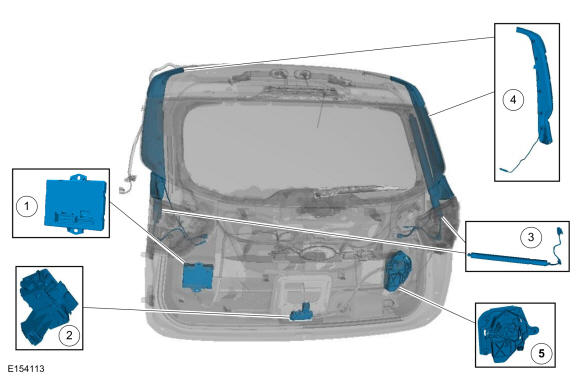

Body Closures - Component Location
| Item | Description |
|---|---|
| 1 | Rear Gate Trunk Module (RGTM) |
| 2 | Power liftgate latch |
| 3 | Power liftgate motors (2 required) |
| 4 | Liftgate anti-pinch switches (2 required) |
| 5 | Power striker motor |

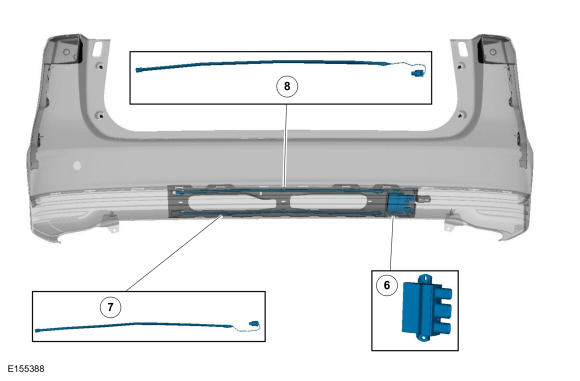

| Item | Description |
|---|---|
| 6 | Hands free liftgate actuation module (if equipped) |
| 7 | Hands free liftgate actuation lower sensor (if equipped) |
| 8 | Hands free liftgate actuation upper sensor (if equipped) |
