Windshield Washer Reservoir - Hybrid Electric Vehicle (HEV): Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health And Safety Precautions .

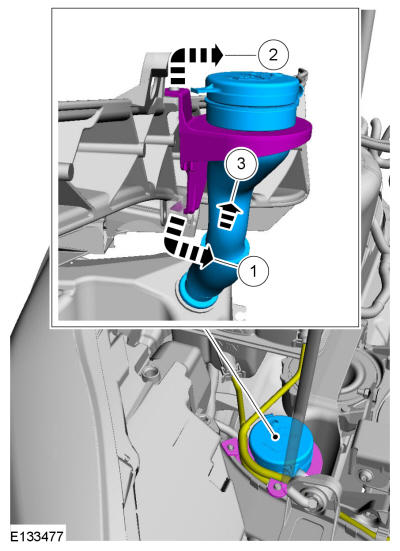

   Courtesy of FORD MOTOR COMPANY

2. Refer to: Fender Splash Shield .

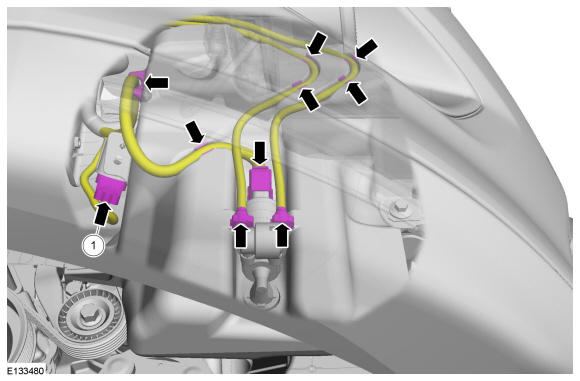

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

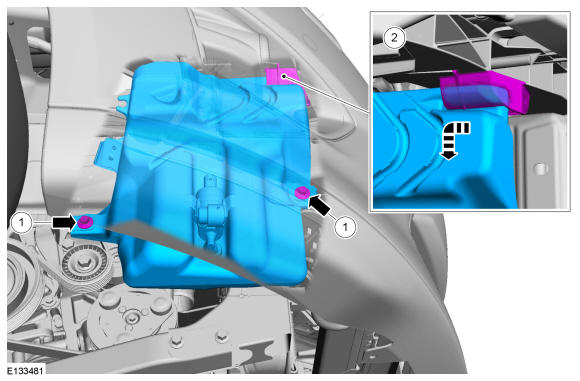

3. Torque

   : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
