Rear Seat RH: Removal

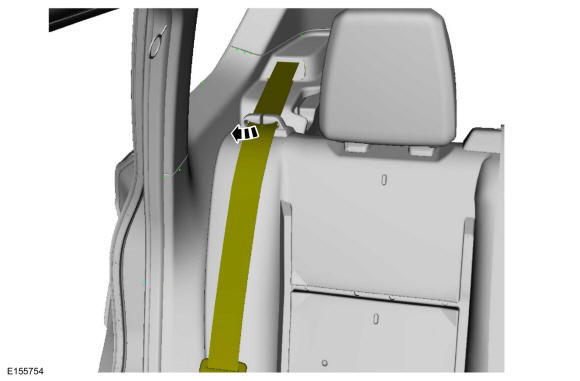

  1. Position the seatbelt through the backrest upper seatbelt guide.
    GFD224797Courtesy of FORD MOTOR COMPANY
  2. Remove the bolts and the cargo area load floor mat.
    GFD224223Courtesy of FORD MOTOR COMPANY

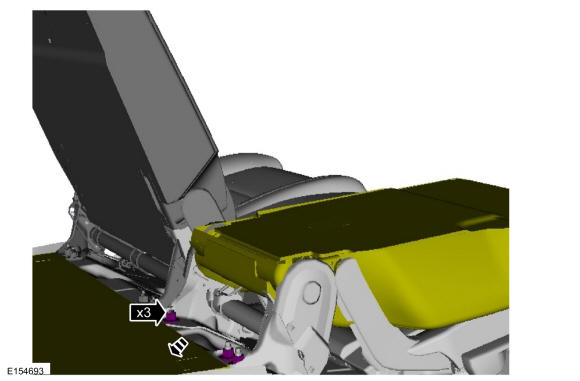

  3. With the seat backrest folded down, position the cargo area load floor mat rearward and remove the rear seat backrest nuts.
    GFD224798Courtesy of FORD MOTOR COMPANY

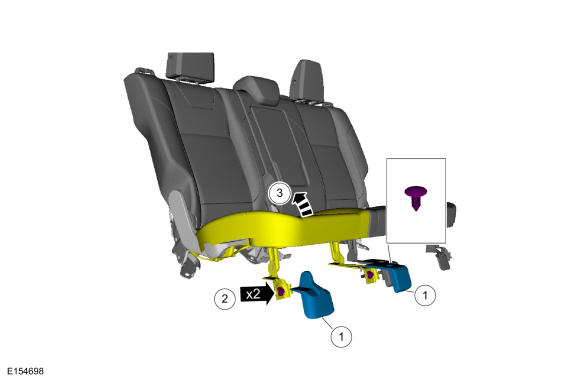

    1. Remove the pin-type retainers and the seat bolt covers.
    2. Remove the bolts.
    3. Position the seat cushion upward.
    GFD224799Courtesy of FORD MOTOR COMPANY

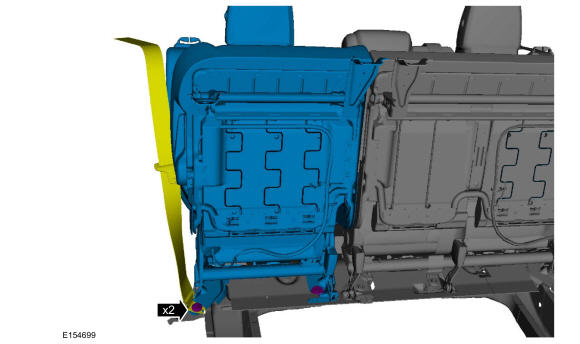

  5. Remove the seat backrest bolts, position the seatbelt anchor aside and remove the rear seat.
GFD224800Courtesy of FORD MOTOR COMPANY
