Rear Seat LH: Removal

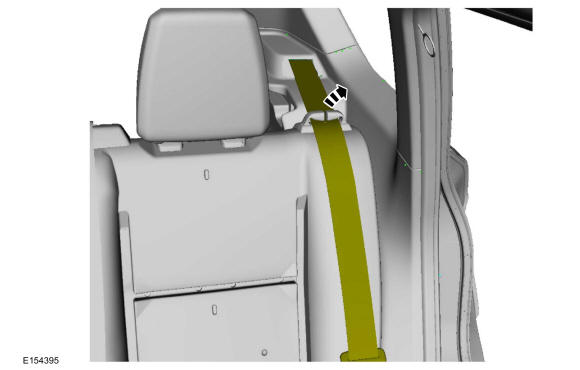

  1. Position the seatbelt through the backrest upper seatbelt guide.
    GFD224790Courtesy of FORD MOTOR COMPANY

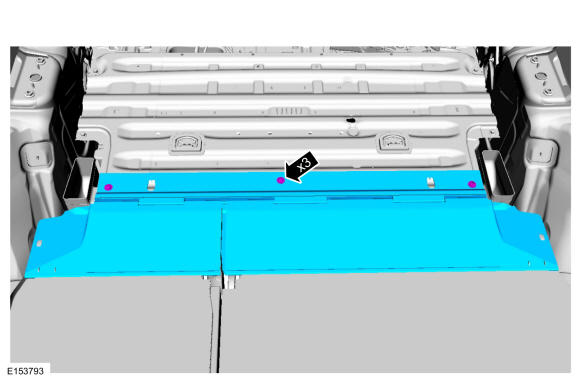

  2. Remove the bolts and the cargo area load floor mat.
    GFD224223Courtesy of FORD MOTOR COMPANY

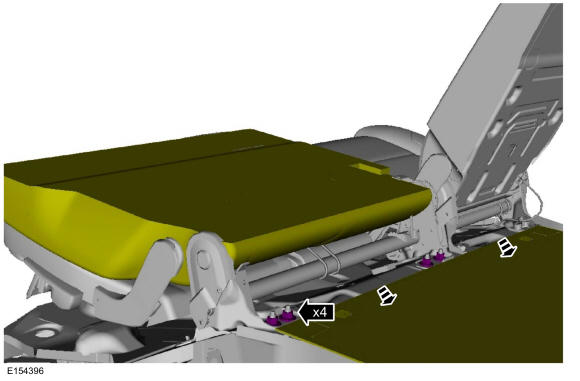

  3. With the seat backrest folded down, position the cargo area load floor mat rearward and remove the rear seat backrest nuts.
    GFD224791Courtesy of FORD MOTOR COMPANY

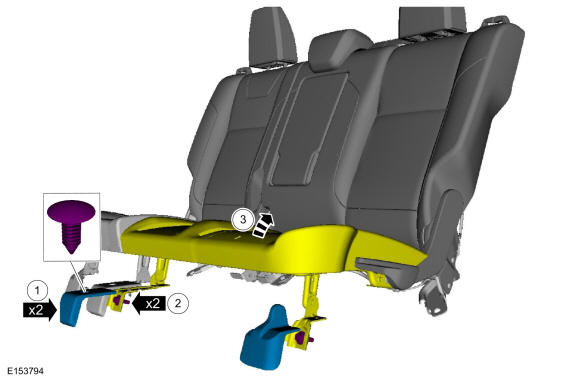

    1. Remove the pin-type retainers and the seat bolt covers.
    2. Remove the bolts.
    3. Position the seat cushion upward.
    GFD224224Courtesy of FORD MOTOR COMPANY

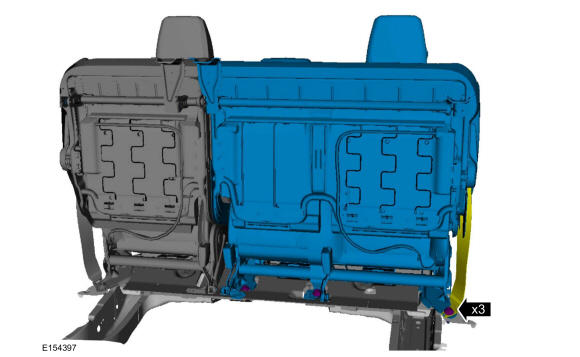

  5. Remove the seat backrest bolts, position the seatbelt anchor aside and remove the rear seat.
GFD224792Courtesy of FORD MOTOR COMPANY
