Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health And Safety Precautions .
Drain the coolant.Refer to: Cooling System Draining, Filling And Bleeding .
Evacuate the A/C system.Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging .
NOTE: Make sure all openings are sealed.

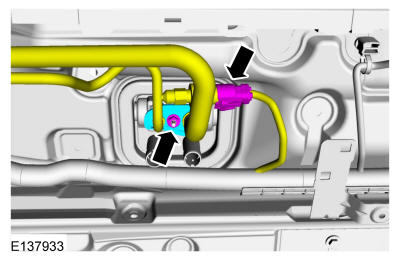

Remove the evaporator pipe nut and flange and position the pipe aside.

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure all openings are sealed.

Courtesy of FORD MOTOR COMPANY
Remove both front doors.Refer to: Front Door .
Remove the transmission selector lever.Refer to: Selector Lever Assembly .
Courtesy of FORD MOTOR COMPANY

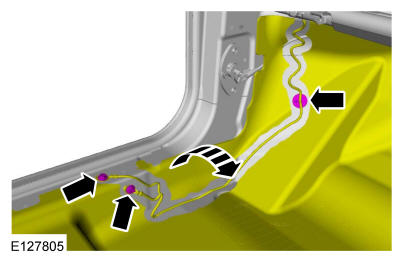

Remove the 2 LH side ground strap bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

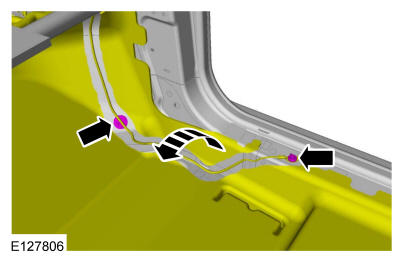

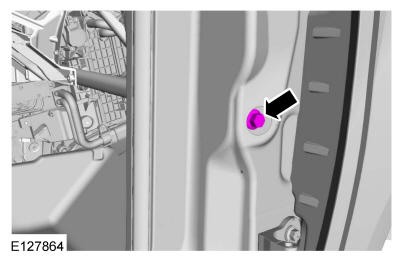

Remove the RH side ground strap bolt.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: RH side shown, LH side similar.

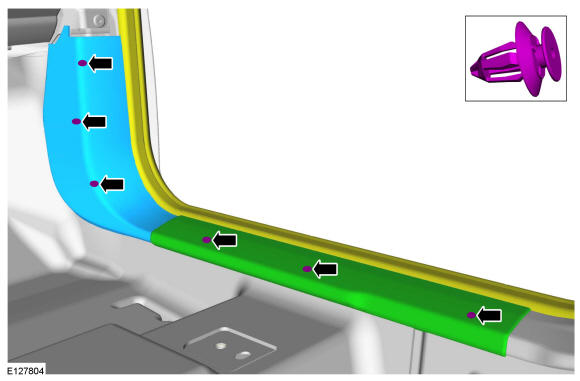

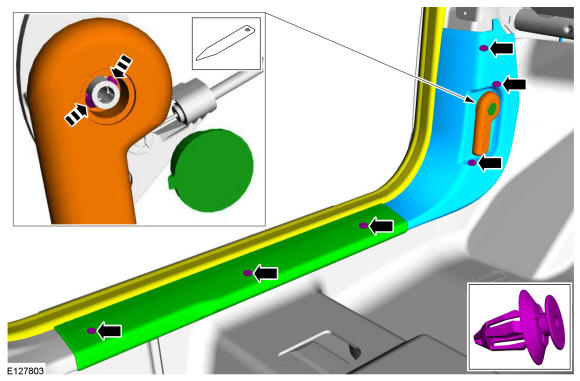

Remove the RH and LH instrument panel side finish panels.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not allow the steering wheel to rotate while the stering column shaft is disconnect, or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring.

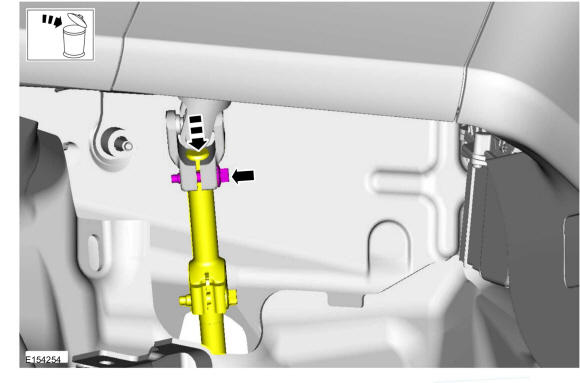

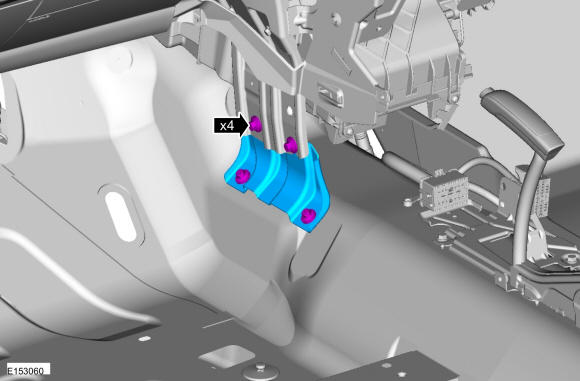

Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

Turn the ignition off, wait at least one minute and continue to step 19.

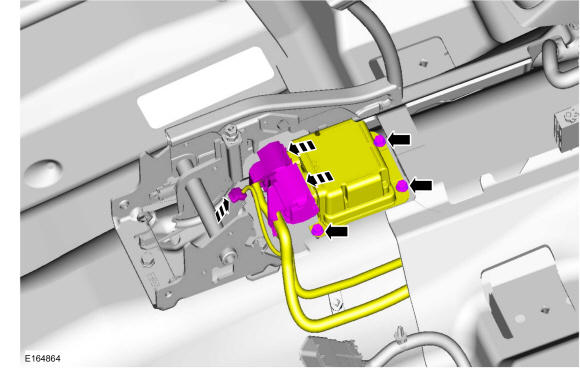

Remove the 3 retainers and position aside the RCM.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Remove the defrost vent trim panel.
Refer to: Defrost Vent Trim Panel

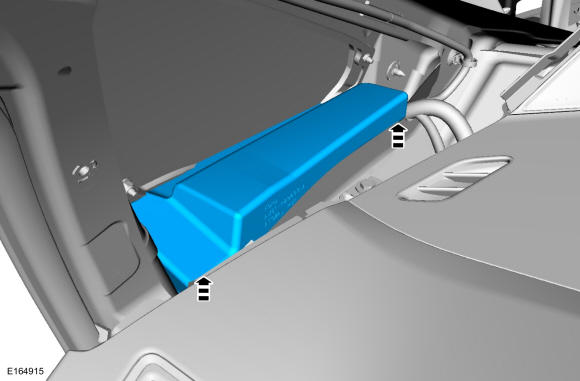

Remove the insulation at the LH front quarter glass.

Courtesy of FORD MOTOR COMPANY

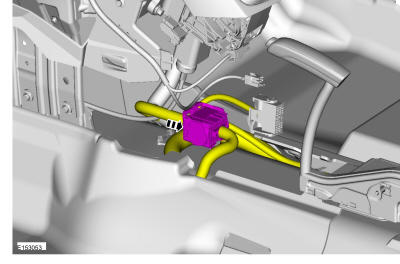

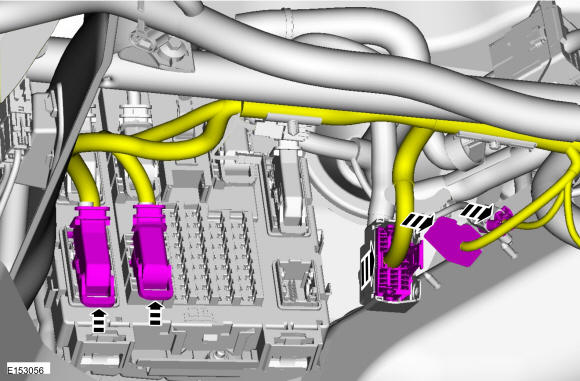

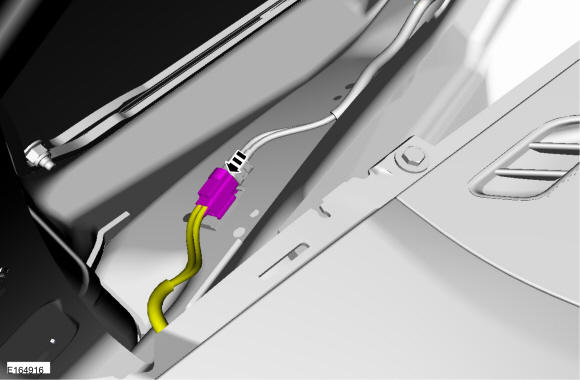

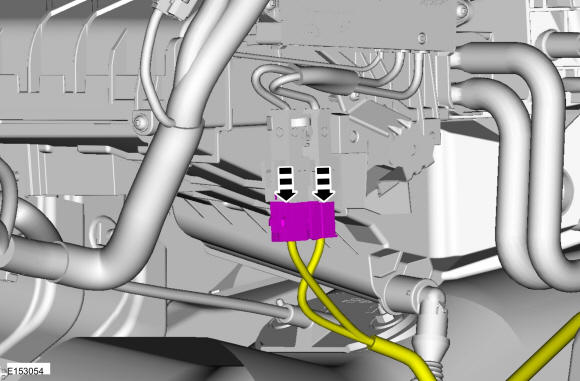

Disconnect the electrical connector and push pin retainer.

Courtesy of FORD MOTOR COMPANY

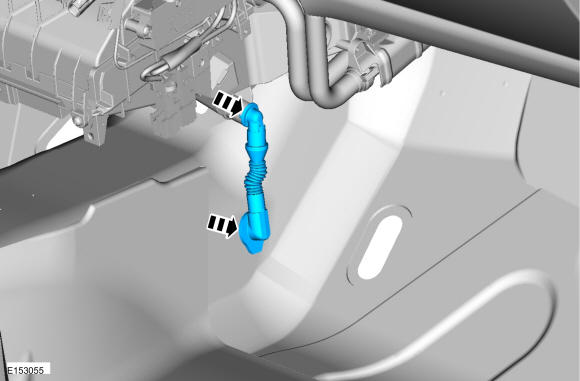

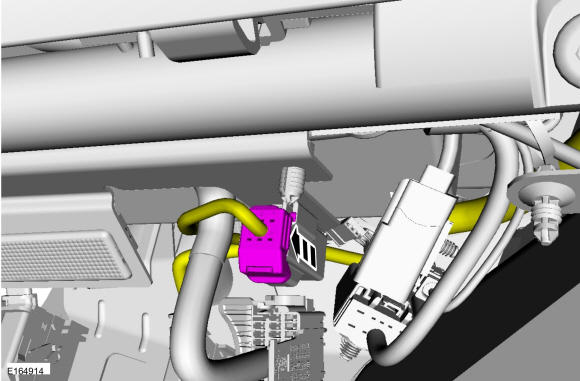

Disconnect the electrical located at the RH lower instrument panel.

Courtesy of FORD MOTOR COMPANY

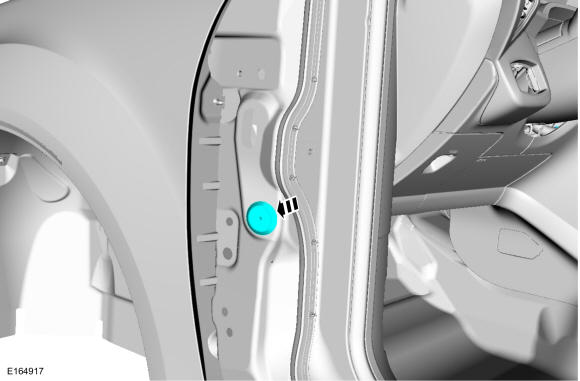

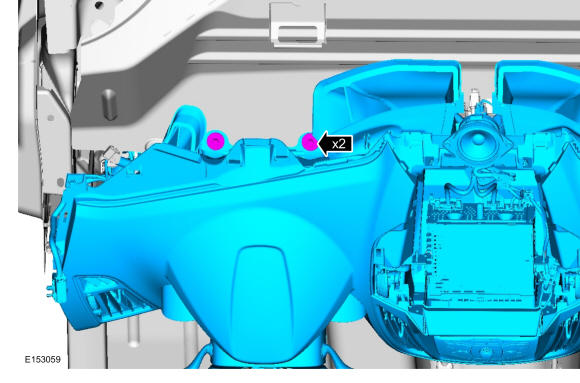

Remove the 2 upper instrument panel cowl bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

Remove the RH and LH instrument panel retainer cover.

Courtesy of FORD MOTOR COMPANY
NOTE: RH side shown, LH side similar.

Remove the LH and RH instrument panel side bolts.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: To avoid damaging the instrument panel, use an assistant to carry out the following steps.

NOTE: Remove the bolts from one side completely and support the instrument panel before removing the bolts from the opposite side.

Remove the 4 LH and 4 RH instrument panel-to-body bolts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

Remove the instrument panel from the vehicle.
