Instrument Panel Upper Section: Removal
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
-
WARNING: Before beginning any service procedure in this information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health And Safety Precautions .
- Remove the transmission selector lever.Refer to: Selector Lever Assembly .
- Remove the defrost vent trim panel.Refer to: Defrost Vent Trim Panel .
-

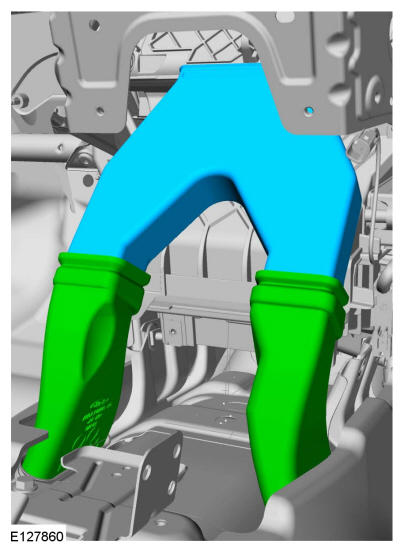

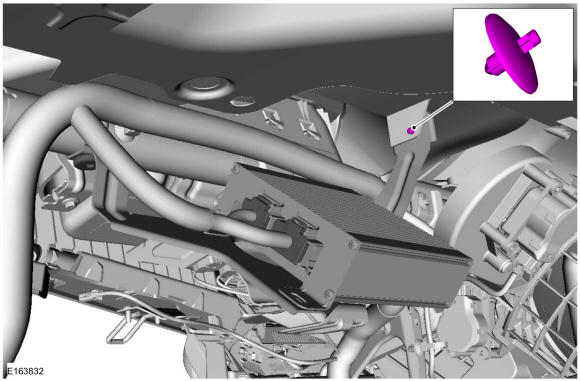

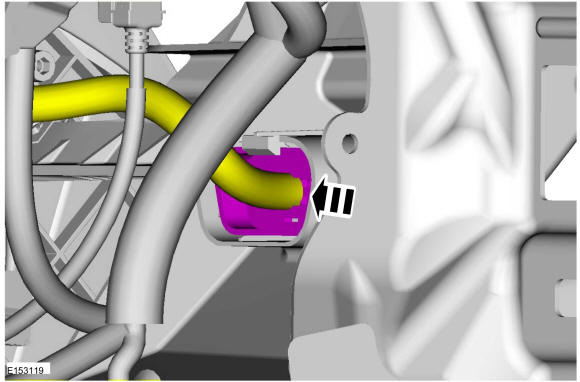

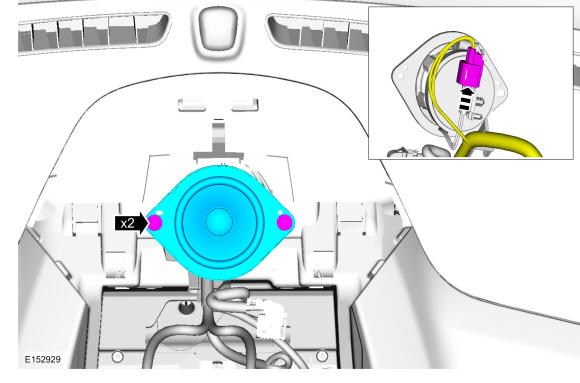

NOTE: If equipped.
Torque: 18 lb.in (2 Nm)

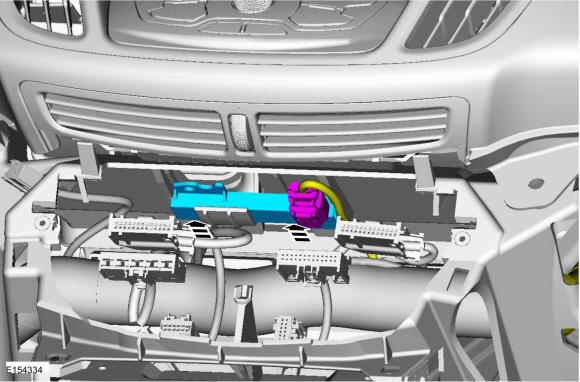

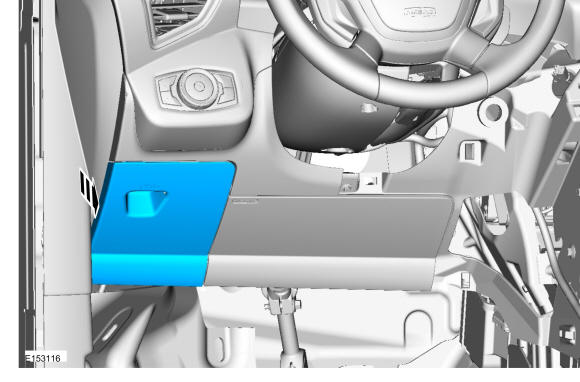

- Remove the driver lower airbag.Refer to: Driver Knee Airbag .
- Remove the steering column.Refer to: Steering Column .

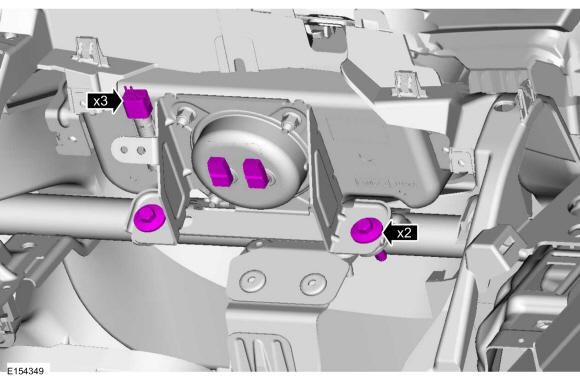

- Torque: 13 lb.in (1.5 Nm)
- Torque: 18 lb.in (2 Nm)
-

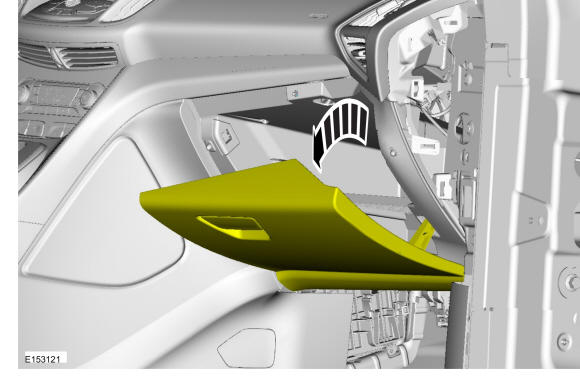

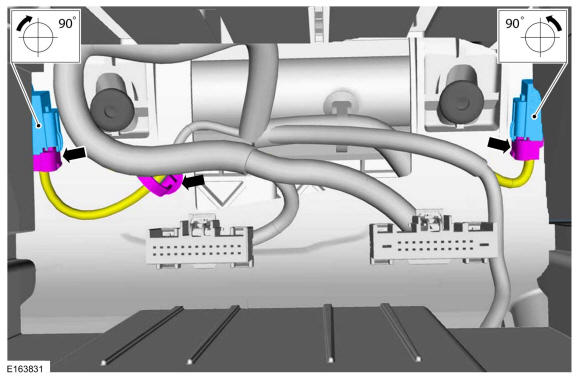

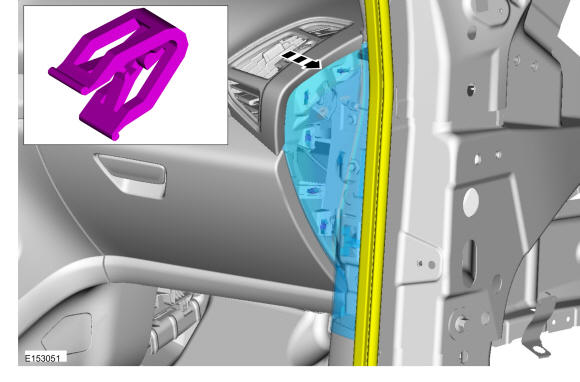

NOTE: RH side shown, LH side similar.

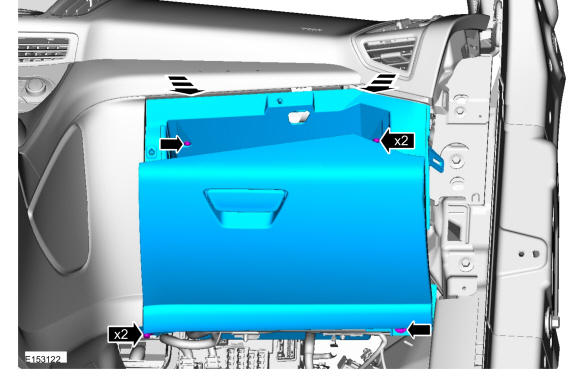

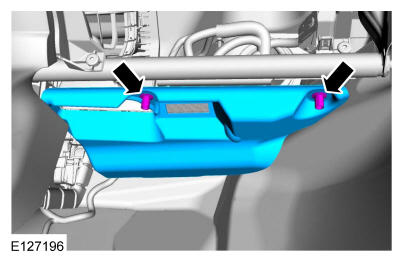

Both sides

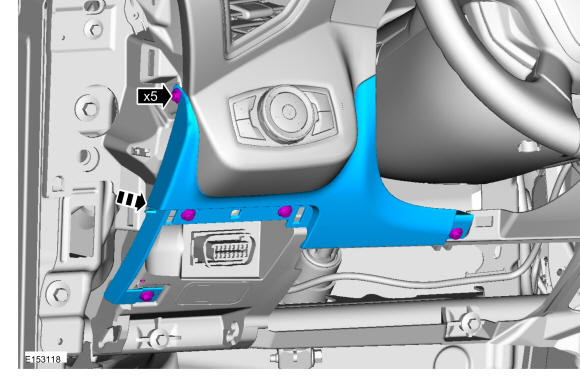

- Torque: 27 lb.in (3 Nm)

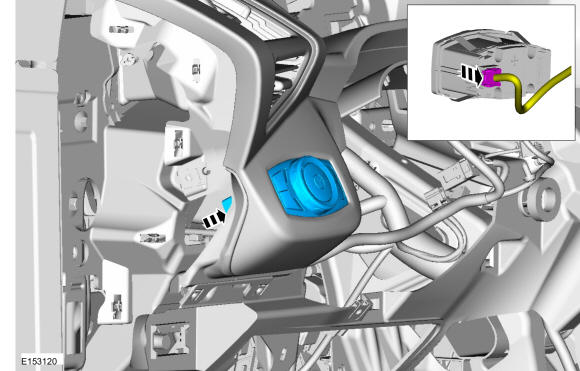

- Torque: 18 lb.in (2 Nm)
-

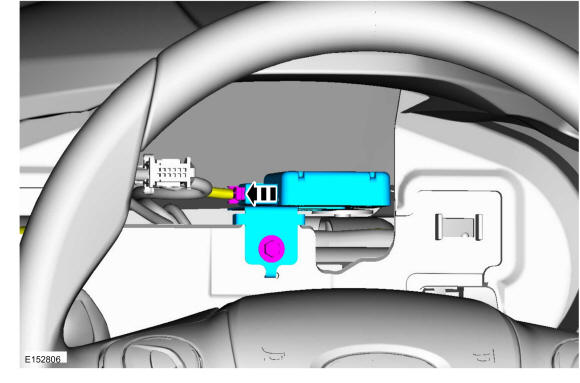

NOTE: If equipped.
- Torque: 18 lb.in (2 Nm)

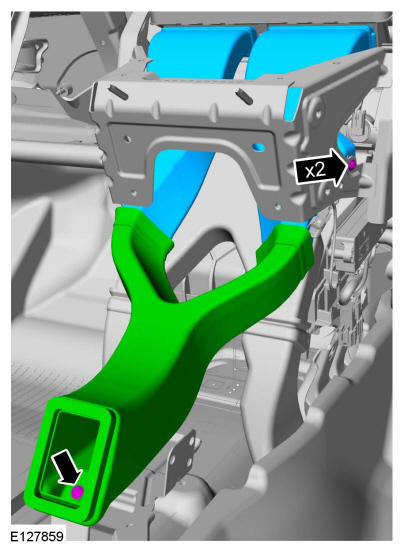

- Torque: 71 lb.in (8 Nm)
-

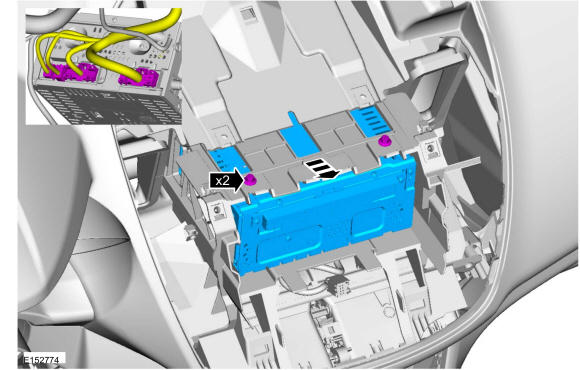

NOTE: If equipped.
Remove the FDIM.Refer to: Front Display Interface Module (FDIM) .

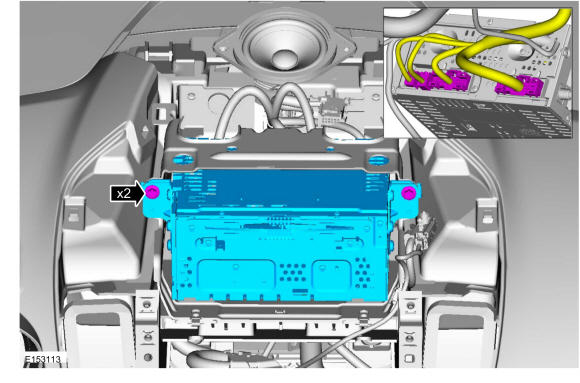

- Torque: 27 lb.in (3 Nm)

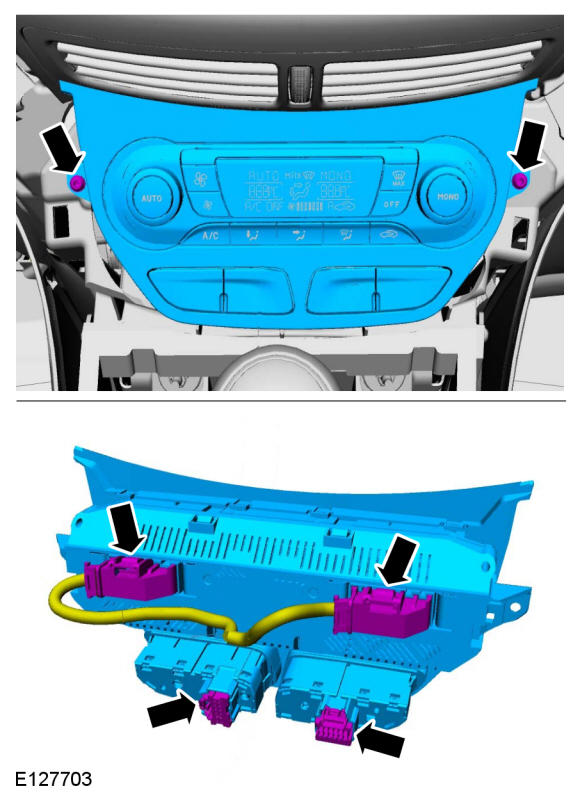

All other displays
- Refer to: Instrument Panel Center Middle Trim Panel .
-
NOTE: If equipped.
Torque: 27 lb.in (3 Nm)
All vehicles
-
NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the upper section or damage to the components may occur.NOTE: Install all the bolts finger tight before final tightening.

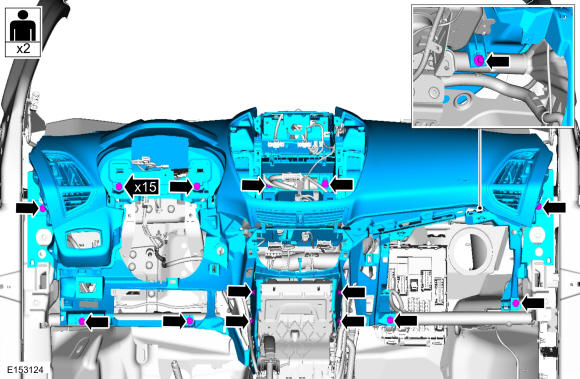

Remove the 15 bolts and the instrument panel upper section.
Torque: 27 lb.in (3 Nm)
Vehicles with 8 inch display
