Instrument Panel Center Upper Trim Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health And Safety Precautions .

    Vehicles with 8 inch display

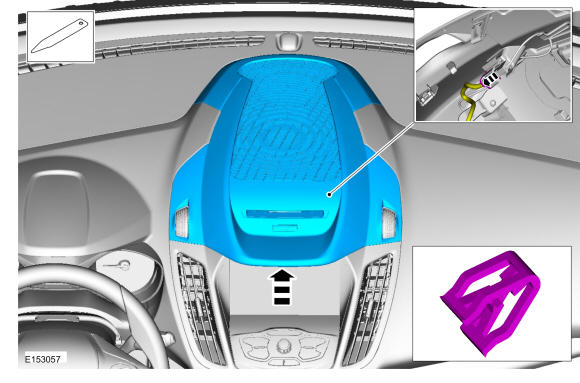

  2. GFD224923Courtesy of FORD MOTOR COMPANY

    3. All other displays

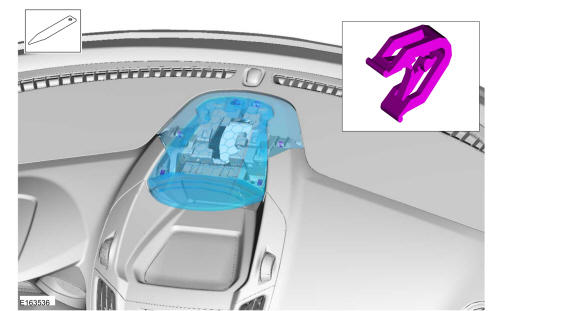

  3. GFD224924Courtesy of FORD MOTOR COMPANY

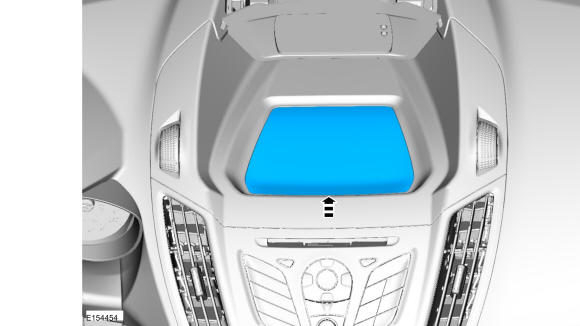

  4. GFD224925Courtesy of FORD MOTOR COMPANY
  5. NOTE: If equipped.

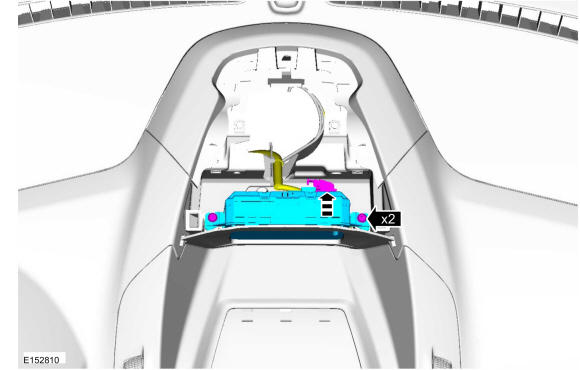

    GFD224384Courtesy of FORD MOTOR COMPANY
  6. Torque: 27 lb.in (3 Nm)

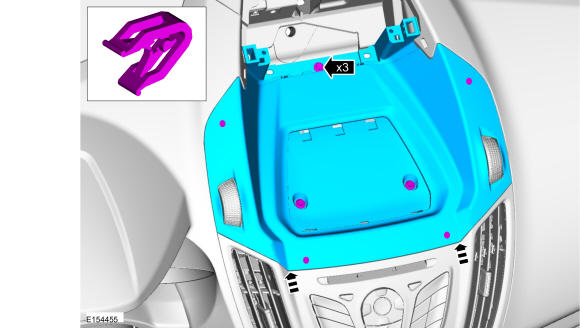

    GFD224926Courtesy of FORD MOTOR COMPANY
