Instrument Panel Center Middle Trim Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health And Safety Precautions .

    All vehicles

  2. Remove the instrument panel center upper trim panel.Refer to: Instrument Panel Center Upper Trim Panel .

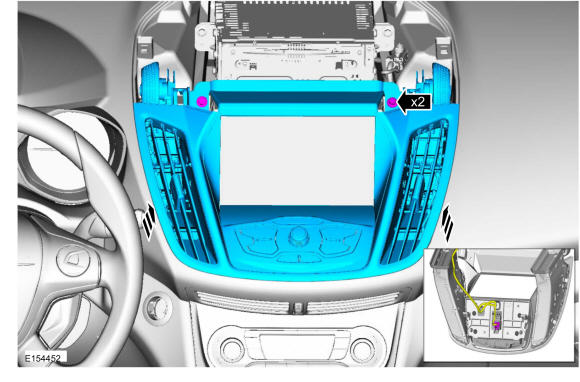

    Vehicles with 8 inch display

  3. Torque: 27 lb.in (3 Nm)
    GFD224921Courtesy of FORD MOTOR COMPANY

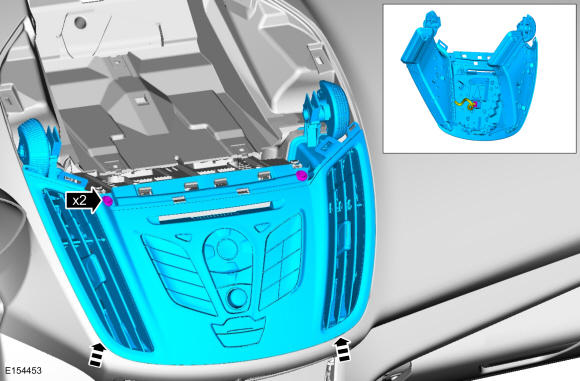

    All other displays

  4. Torque: 27 lb.in (3 Nm)
    GFD224922Courtesy of FORD MOTOR COMPANY
