Parking Aid - Component Location

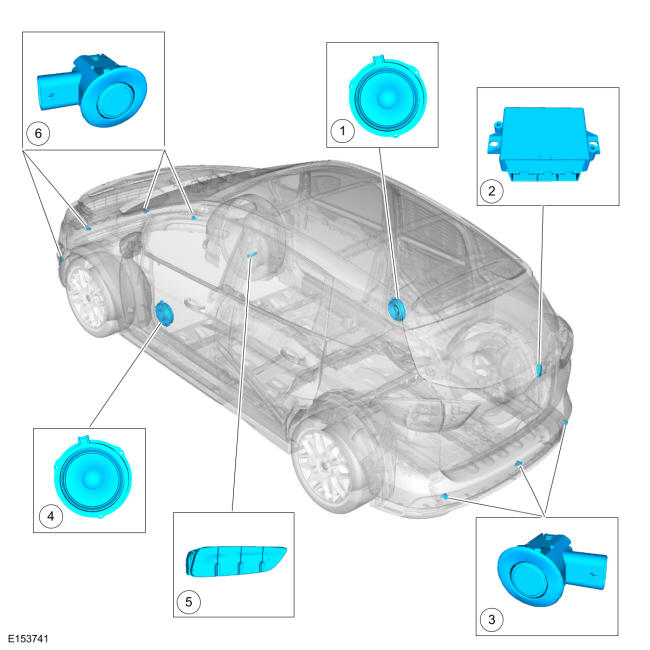

Audible Parking Aid - Component Location
| Item | Description |
|---|---|
| 1 | Speaker, rear door (part of audio system) |
| 2 | Parking Aid Module (PAM) |
| 3 | Parking aid sensors, rear |
| 4 | Speaker, front door (part of audio system) |
| 5 | Parking aid disable switch (if equipped) |
| 6 | Parking aid sensors, front (if equipped) |

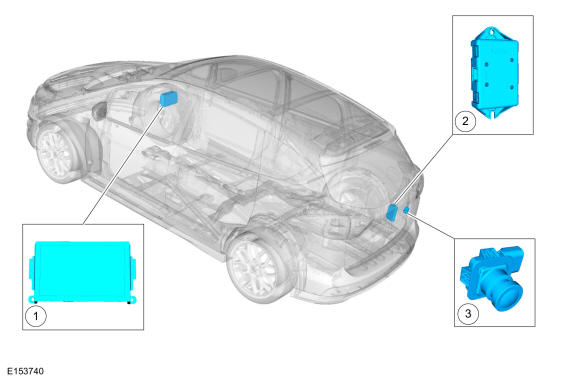

Visual Parking Aid - Component Location
| Item | Description |
|---|---|
| 1 | FDIM |
| 2 | IPMB (if equipped) |
| 3 | Video camera |
