Brake Vacuum Pump: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Cooling Fan Motor and Shroud
  2. Torque: 89 lb.in (10 Nm)

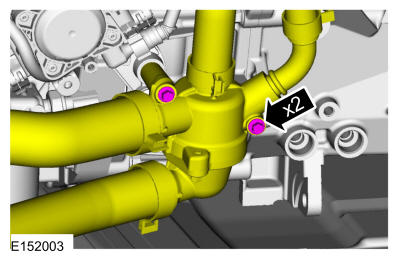

    GFD223100Courtesy of FORD MOTOR COMPANY

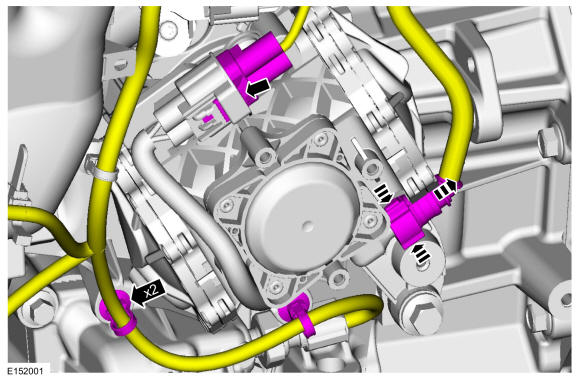

  3. GFD223101Courtesy of FORD MOTOR COMPANY
  4. Torque

    : 35 lb.ft (48 Nm)

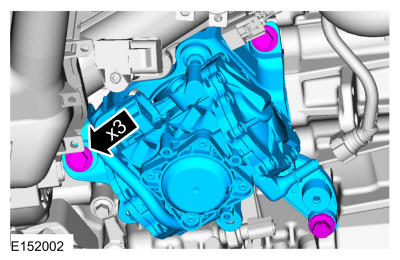

    GFD223102Courtesy of FORD MOTOR COMPANY
  5. Use the General Equipment: Vise

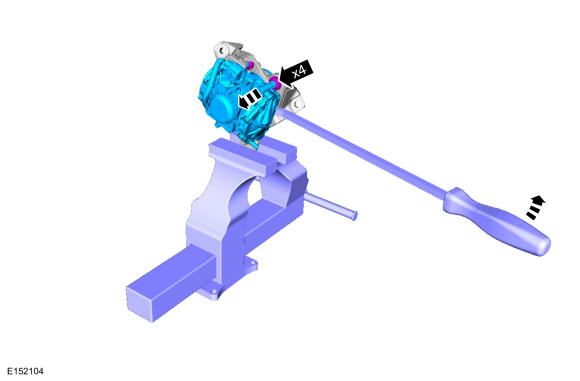

GFD223103Courtesy of FORD MOTOR COMPANY
