Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil
Special Tool(s) / General Equipment
| 412-001 (T71P-19703-B) Remover, Compressor Pulley | |
|---|---|
Activation
- 1.
Remove the A/C compressor. Refer to the appropriate Air Conditioning A/C Compressor procedure in this article.
- 2.NOTE: If equipped with spring rubber clutch.

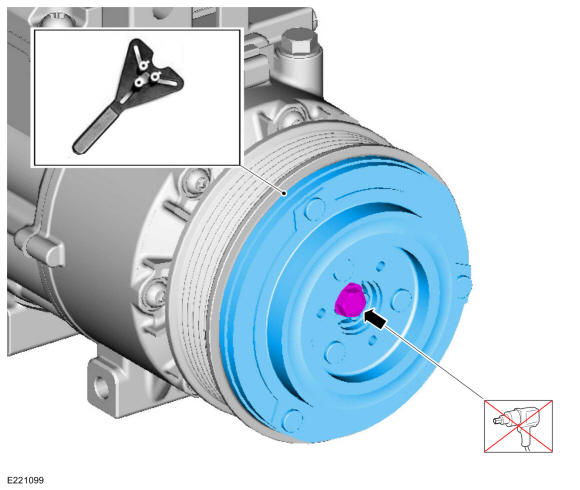

Using the universal clutch holding tool, hold the clutch and remove the A/C clutch disc and hub bolt.
Torque: 159 lb.in (18 Nm)
- 3.NOTE: If equipped with spring plate clutch.

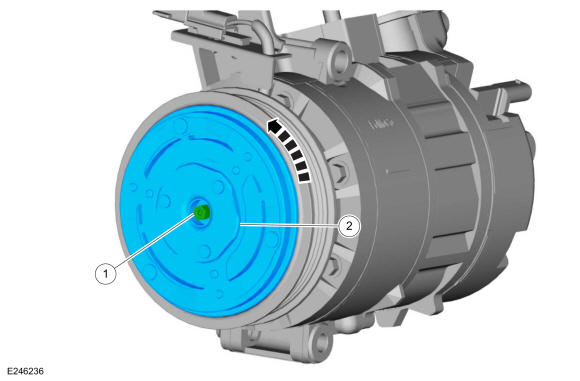

- Hold the A/C compressor shaft.
- Rotate the A/C clutch hub counter clockwise to remove.
Torque: 24 lb.ft (33 Nm)

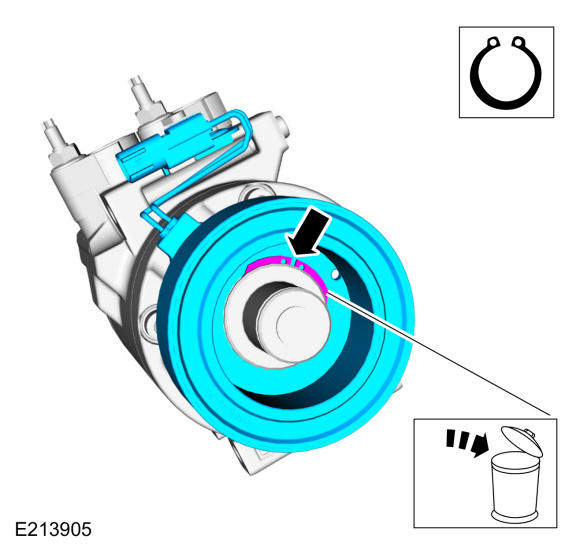

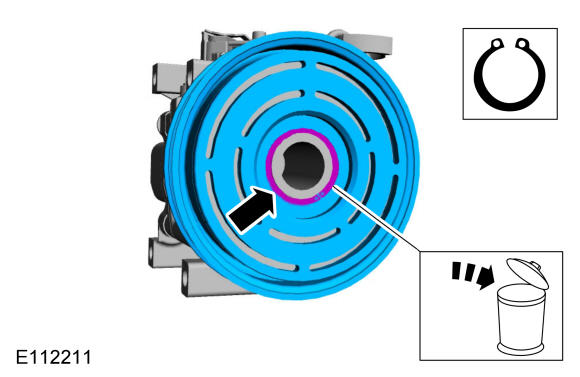

- 5.NOTE: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.

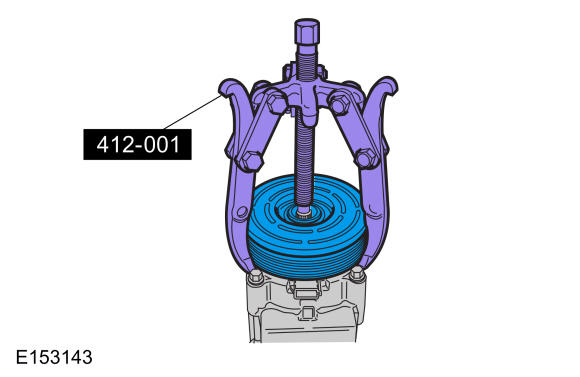

Remove the A/C compressor pulley. INSTALL Special Service Tool: 412-001 (T71P-19703-B) Remover, Compressor Pulley.

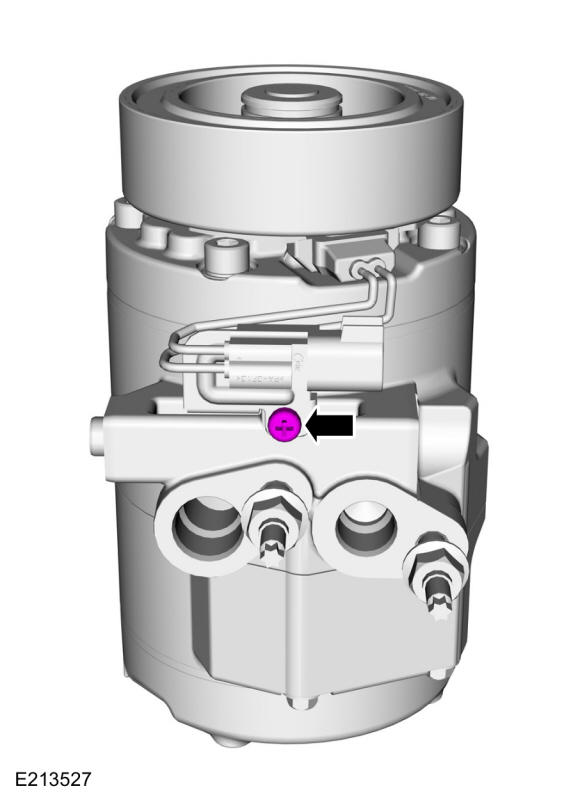

- 8.
- Visually inspect the A/C clutch disc and hub, compressor pulley and clutch field coil for damage.
- Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
- Inspect for excessive wear, including grooving in the A/C clutch disc and hub or the compressor pulley that is more than fingernail depth.
- Inspect for roughness in the A/C compressor pulley bearing.
- 10.NOTE: Spring plate clutch similar.
Measure and adjust the clutch air gap by removing or adding clutch disc and hub spacers. Refer to Air Conditioning (A/C) Clutch Air Gap Adjustment .
