Fuel System Pressure Release

Pressure release

• 1.


  WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
  NOTE: Once this procedure is completed, connect a Diagnostic Scan Tool and clear any DTC's that are present.

  Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

• 2.

  Position aside RH load space trim panel.

Courtesy of FORD MOTOR COMPANY

• 3.

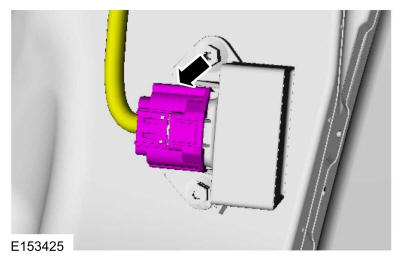

  Disconnect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY

• 4.

  Start and run the engine at idle.

• 5.

  Wait until the engine stalls.

• 6.

  Crank the engine for approximately 5 seconds to release the fuel pressure.

• 7.

  Turn the ignition switch to the off position.

• 8.


  WARNING: Fuel may still be under pressure in the fuel lines.

  Always wrap the fuel line connection with a towel before disconnecting it.

• 9.

  When the fuel system service is complete, reconnect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY

• 10.

  Reposition RH load space trim panel.

Courtesy of FORD MOTOR COMPANY

• 11.

  Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.
