Parking Aid

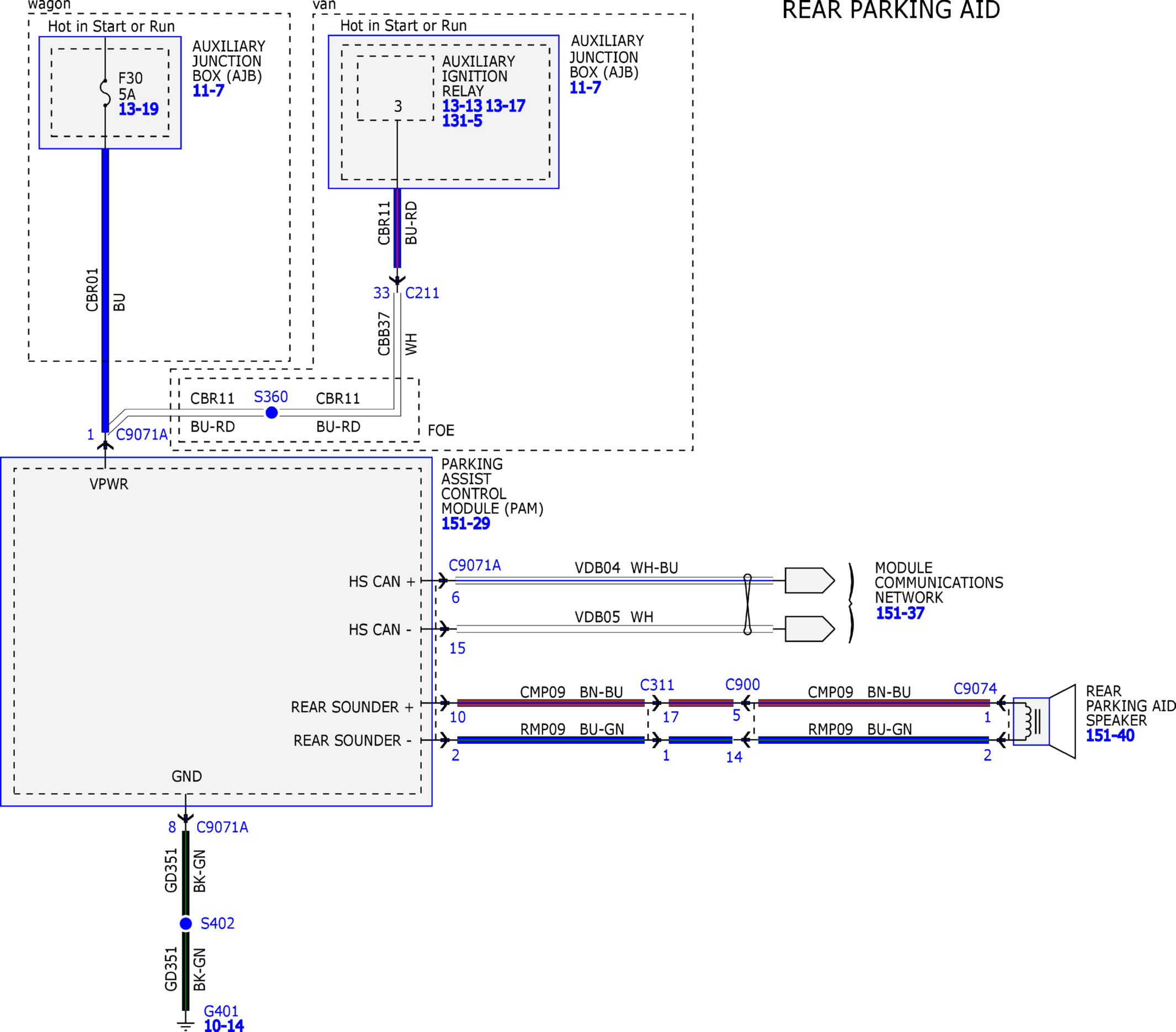

Fig 1: Parking Aid Wiring Diagram (1 of 10)
GFDW63592Courtesy of FORD MOTOR COMPANY

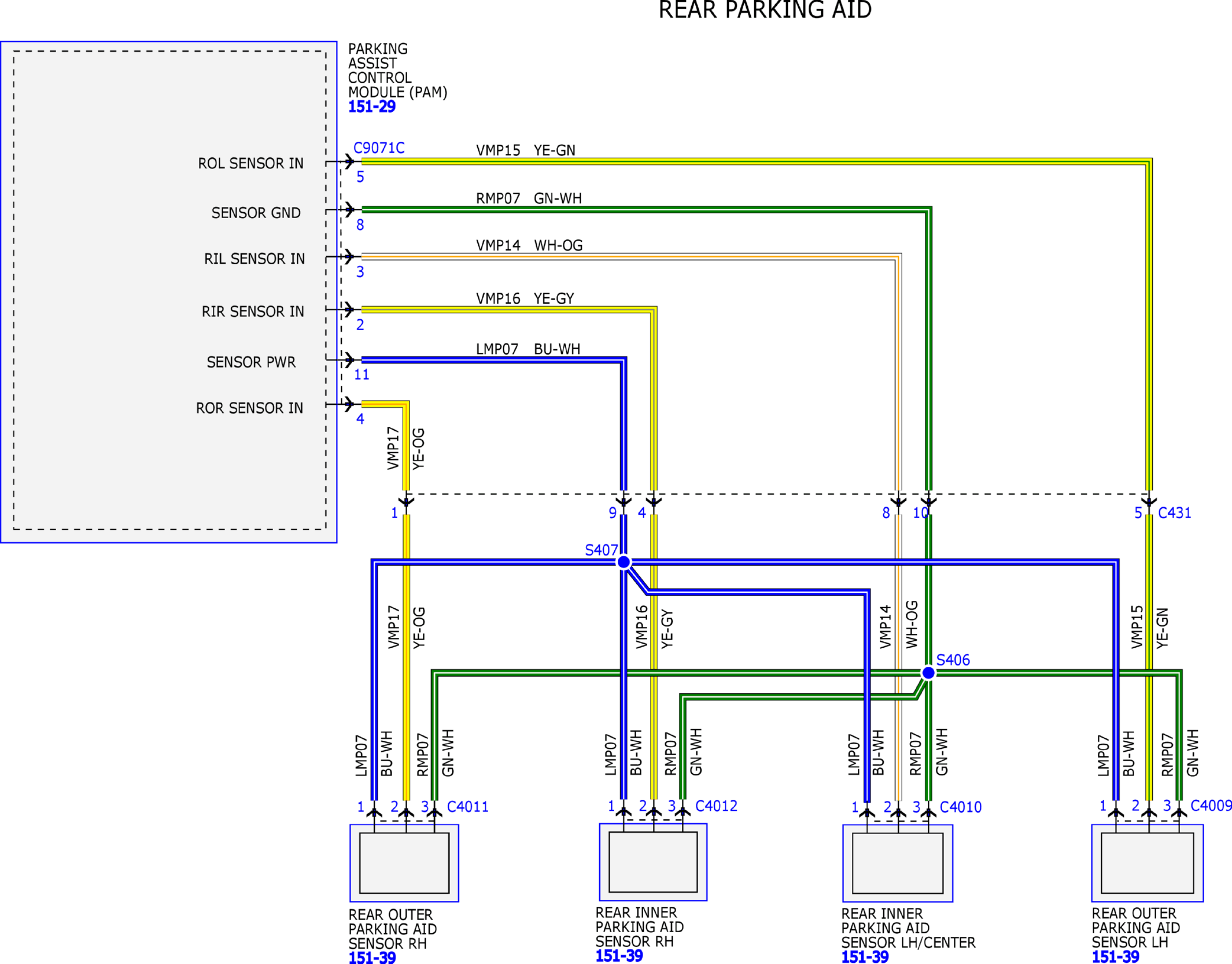

Fig 2: Parking Aid Wiring Diagram (2 of 10)
GFDW63593Courtesy of FORD MOTOR COMPANY

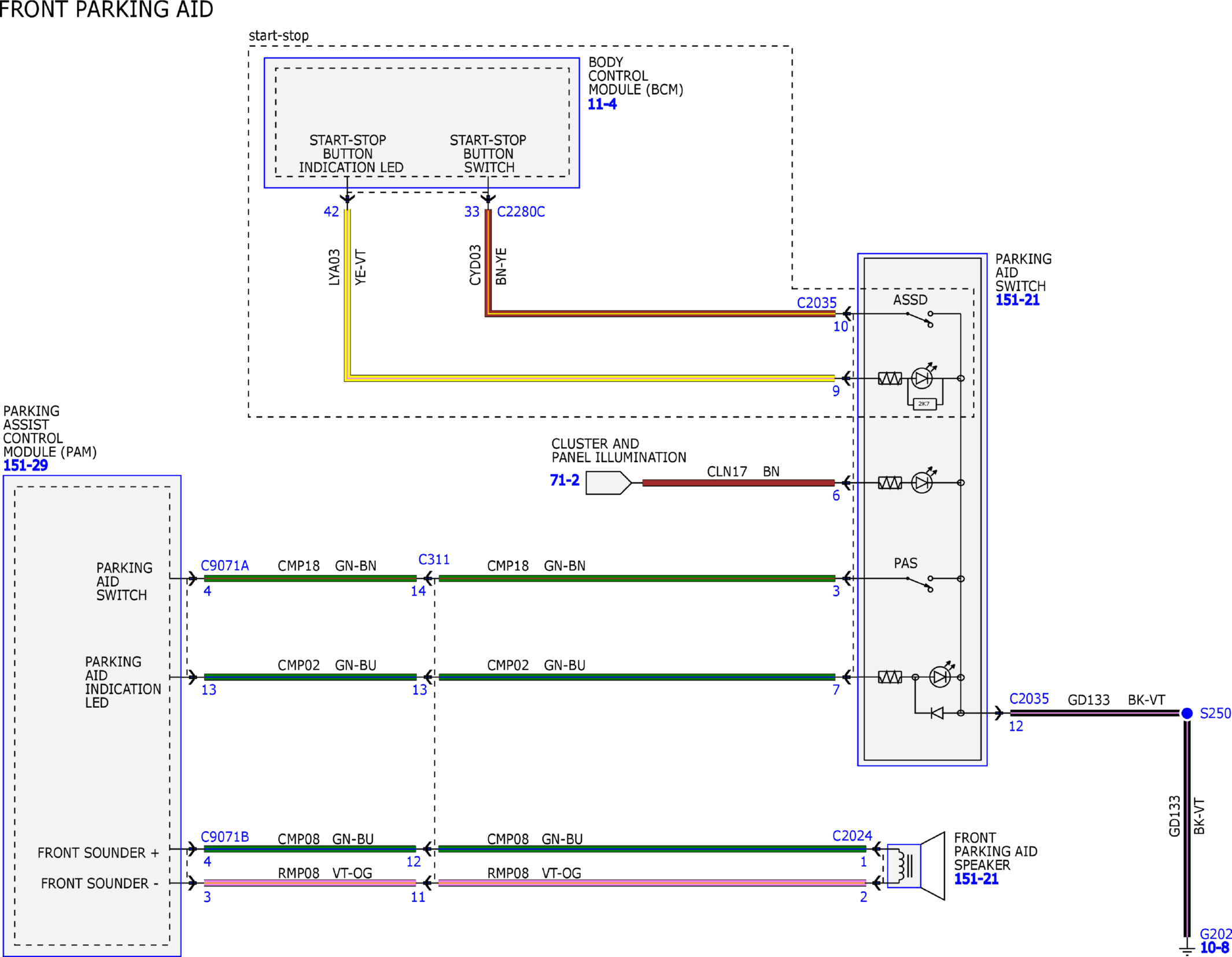

Fig 3: Parking Aid Wiring Diagram (3 of 10)
GFDW63594Courtesy of FORD MOTOR COMPANY

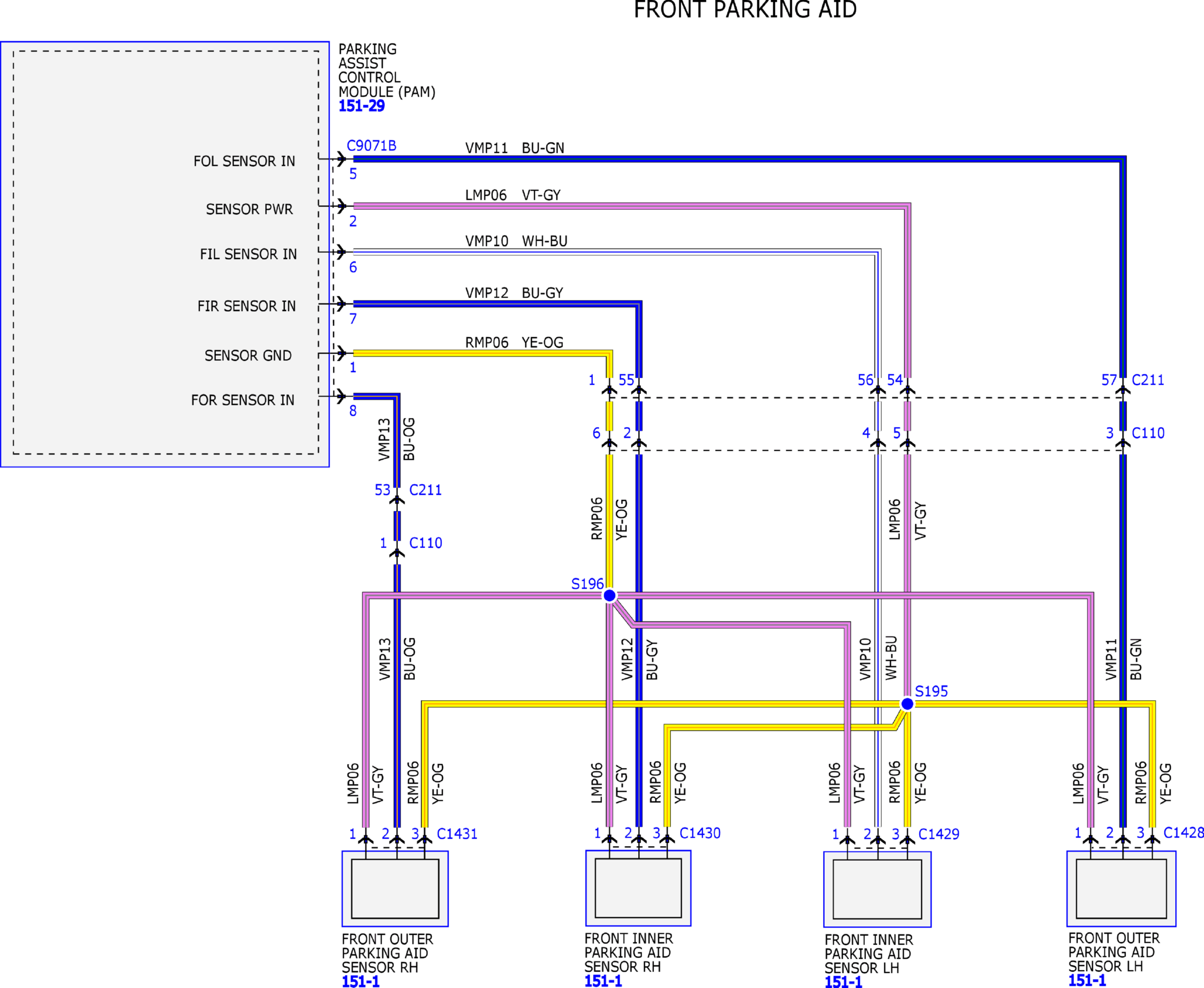

Fig 4: Parking Aid Wiring Diagram (4 of 10)
GFDW63595Courtesy of FORD MOTOR COMPANY

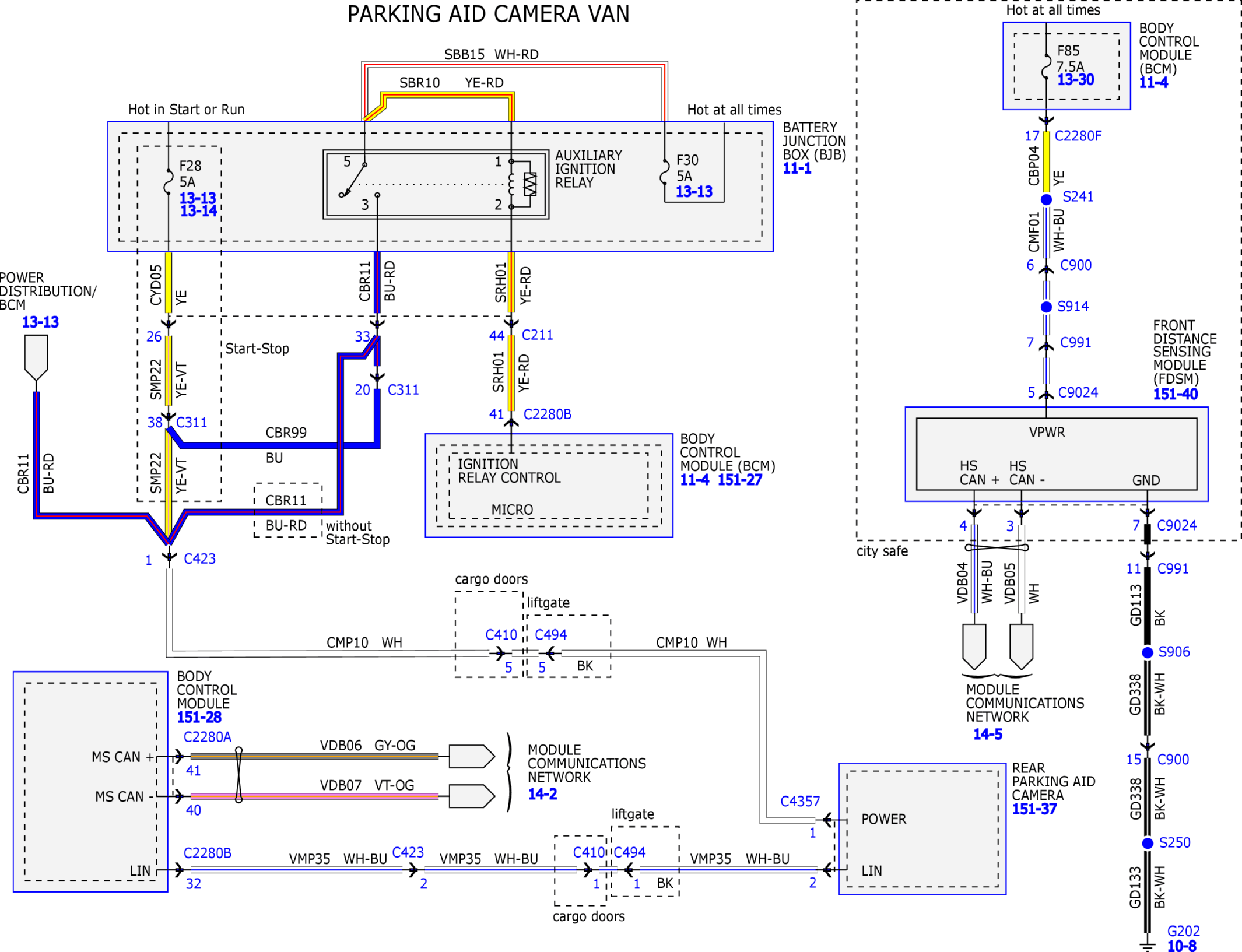

Fig 5: Parking Aid Wiring Diagram (5 of 10)
GFDW63596Courtesy of FORD MOTOR COMPANY

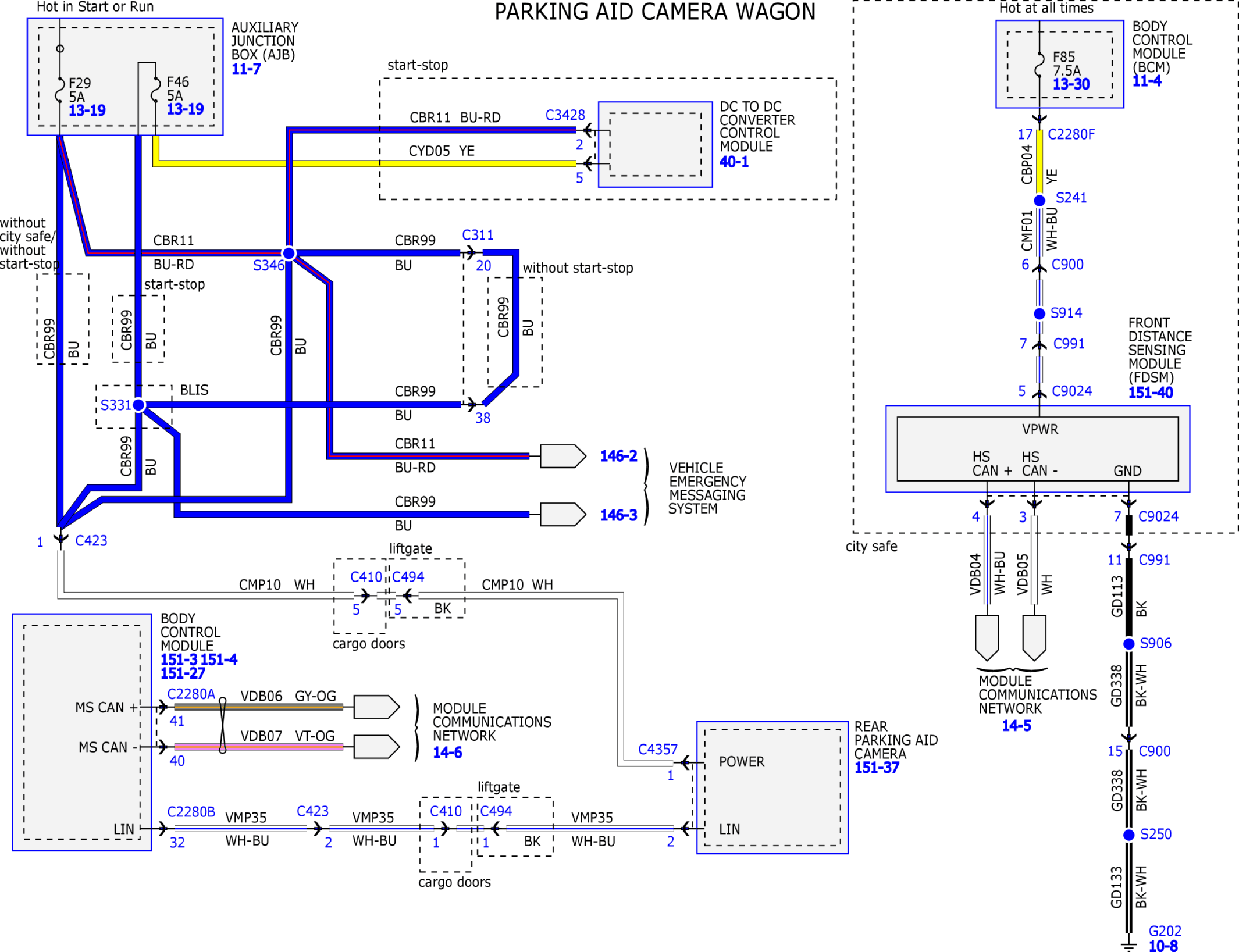

Fig 6: Parking Aid Wiring Diagram (6 of 10)
GFDW63597Courtesy of FORD MOTOR COMPANY

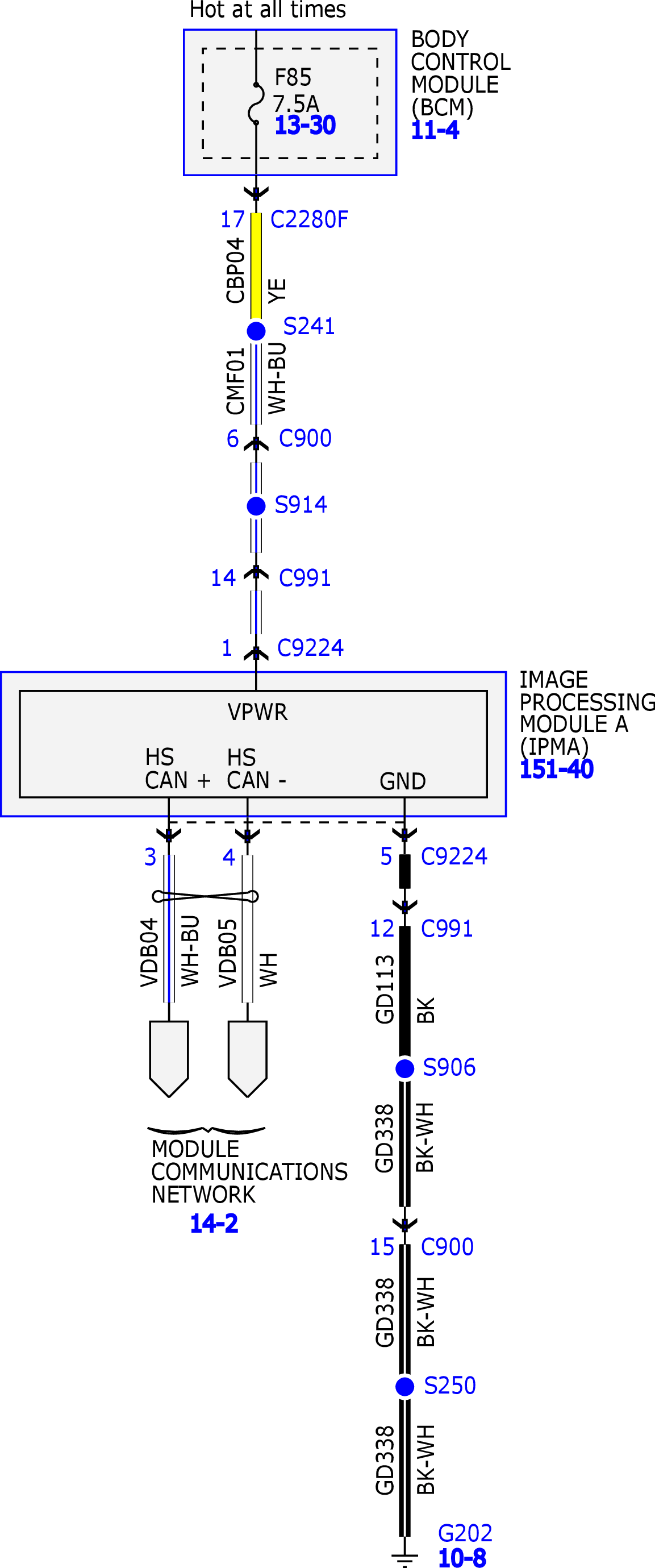

Fig 7: Parking Aid Wiring Diagram (7 of 10)
GFDW63598Courtesy of FORD MOTOR COMPANY

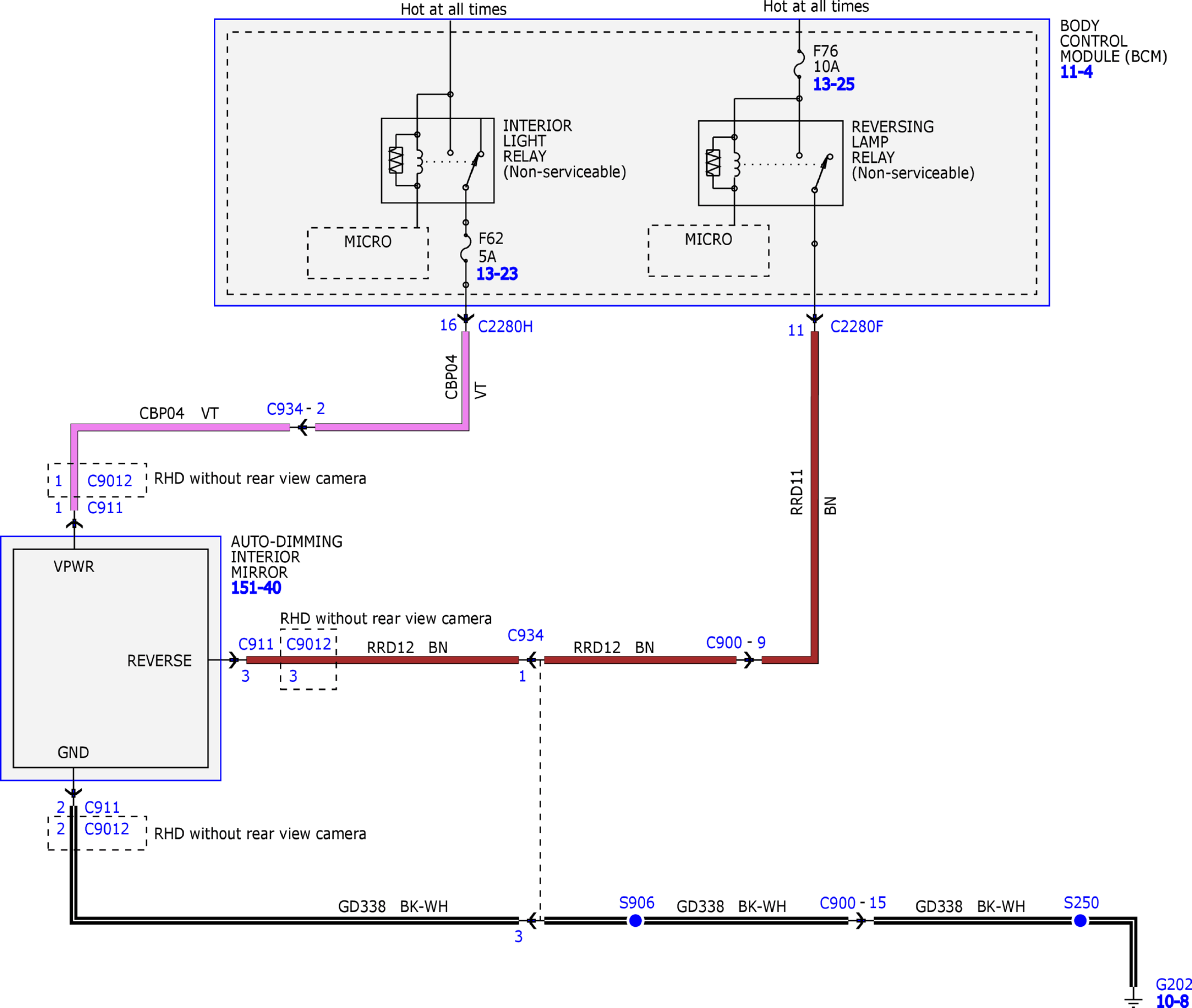

Fig 8: Parking Aid Wiring Diagram (8 of 10)
GFDW63599Courtesy of FORD MOTOR COMPANY

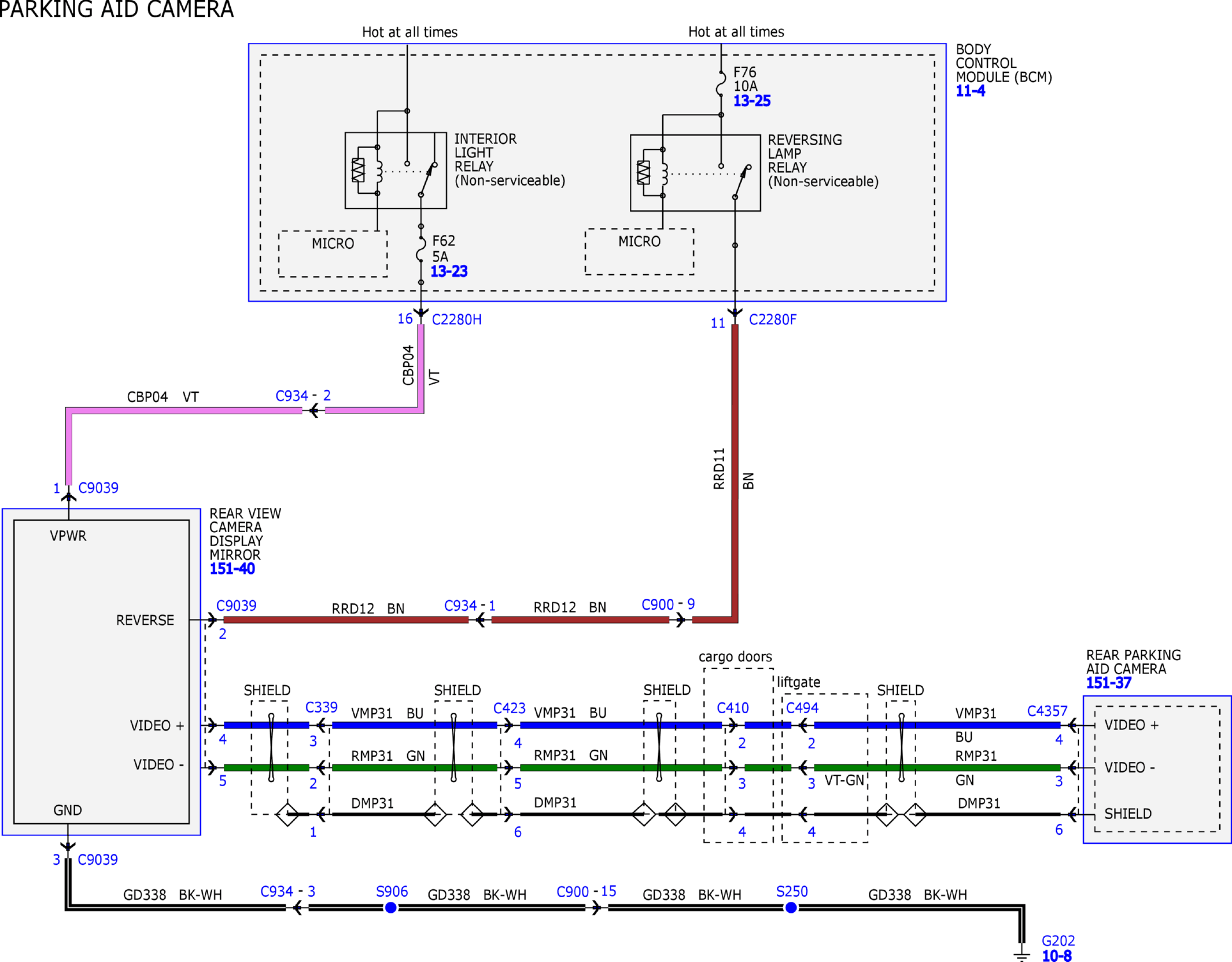

Fig 9: Parking Aid Wiring Diagram (9 of 10)
GFDW63600Courtesy of FORD MOTOR COMPANY

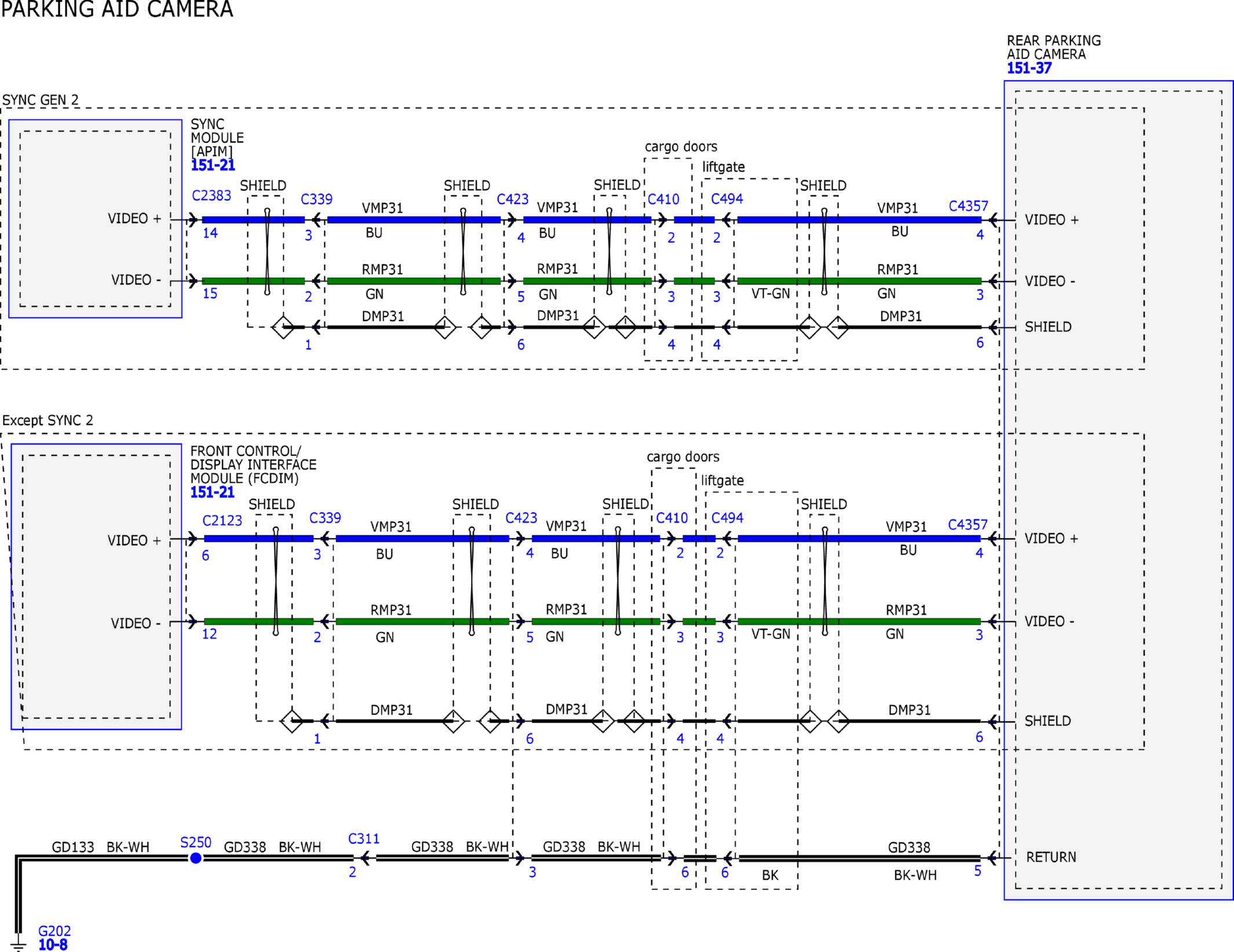

Fig 10: Parking Aid Wiring Diagram (10 of 10)
GFDW63601Courtesy of FORD MOTOR COMPANY
