Connector End View (C567) - DRIVER FRONT DOOR SIDE IMPACT SENSOR

Connector: C567

Description

DRIVER FRONT DOOR SIDE IMPACT SENSOR

Color

Harness

14A584

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR153 (BK)	20	CTRL MOD. - VEHICLE 2
2	RR153 (BK)	20	CTRL MOD. - STEERING COLUMN DEPLOY

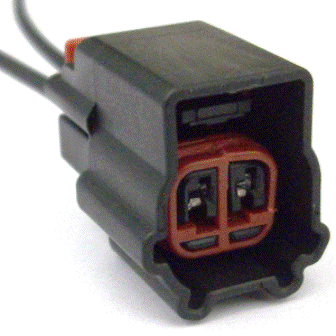

Available Pigtail Kits

Pigtail Kit Part Number

WPT-948

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EKB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Motor - Windshield Washer Fluid Pump

Sensor - Side Impact
