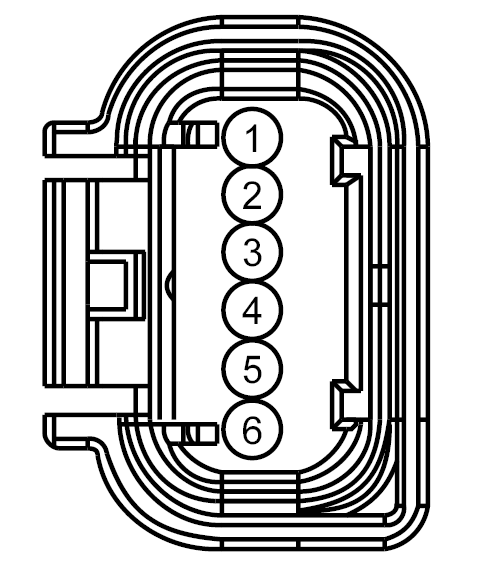

Connector End View (C4357) - REAR PARKING AID CAMERA
Connector: C4357
Description
REAR PARKING AID CAMERA
Color
BK
Harness
17N400
Base Part #
part# N/A

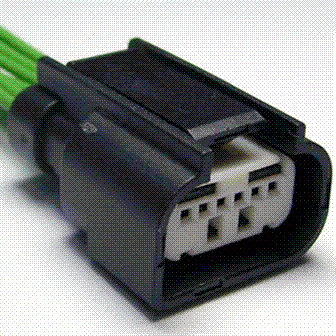

Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CMP10 (WH) | 22 | CTRL MOD. - PARKING AID # SOUNDER REAR | |
| 2 | VMP35 (WH-BU) | 22 | SENSOR - PARKING AID # REAR # (RIGHT OUTER) | |
| 3 | RMP31 (GN) | 22 | CTRL MOD. - PARKING AID # SOUNDER REAR | |
| 4 | VMP31 (BU) | 22 | SENSOR - PARKING AID # REAR # (RIGHT OUTER) | |
| 5 | GD338 (BK-WH) | 22 | GROUND - TUNNEL # 2ND STUD | |
| 6 | DMP31 (*) | 22 | CTRL MOD. - NAVIGATION # VIDEO |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1280 |
Service Part Number: CU2Z-14S411-AEA Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Camera - Reverse Park Aid |
