Connector End View (C3637) - SAFETY BELT LOAD LIMITING RETRACTOR, PASSENGER

Connector: C3637

Description

SAFETY BELT LOAD LIMITING RETRACTOR, PASSENGER

Color

Harness

14014

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR147 (GN-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER ROW 3 PASSENGER SIDE OUTBOARD
2	RR147 (YE-VT)	20	CTRL MOD. - STEERING COLUMN DEPLOY

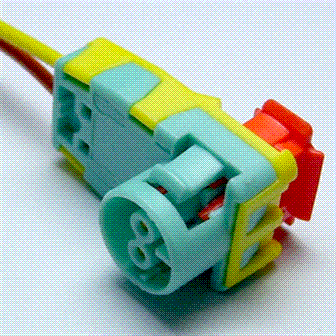

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1226

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BJA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Squib - Airbag (Passenger)
