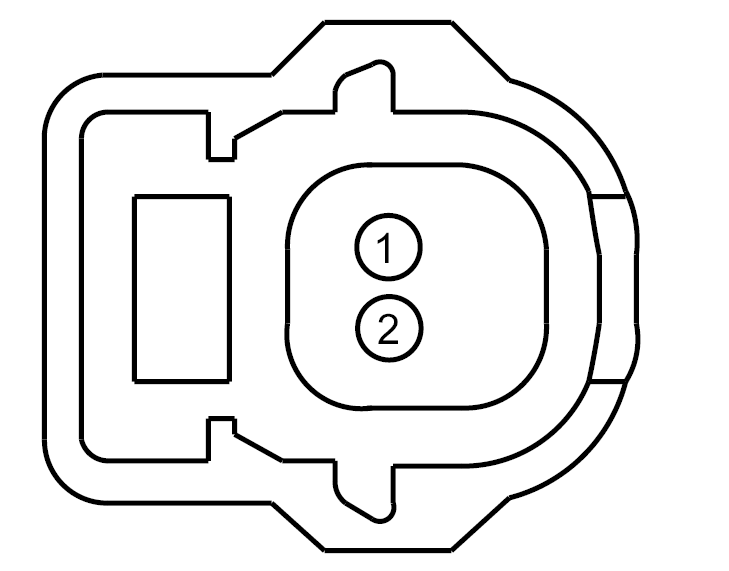

Connector End View (C3209) - RH B-PILLAR SIDE IMPACT SENSOR

Connector: C3209

Description

RH B-PILLAR SIDE IMPACT SENSOR

Color

Harness

14014

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR218 (YE-OG)	20	SENSOR - SIDE IMPACT FRONT PASSENGER SIDE
2	RR132 (BU-WH)	20	CTRL MOD. - SENSOR IMPACT FRONT 2ND OR RIGHT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Crash (Engine Compartment)

Sensor - Seat Track Position

Sensor - Side Impact

Solenoid - Down Shift

Solenoid - Torque Control Coupling

Valve - Heated PCV

Valve - Heater Core Shut Off

Valve - Transmission Fluid Warmer
