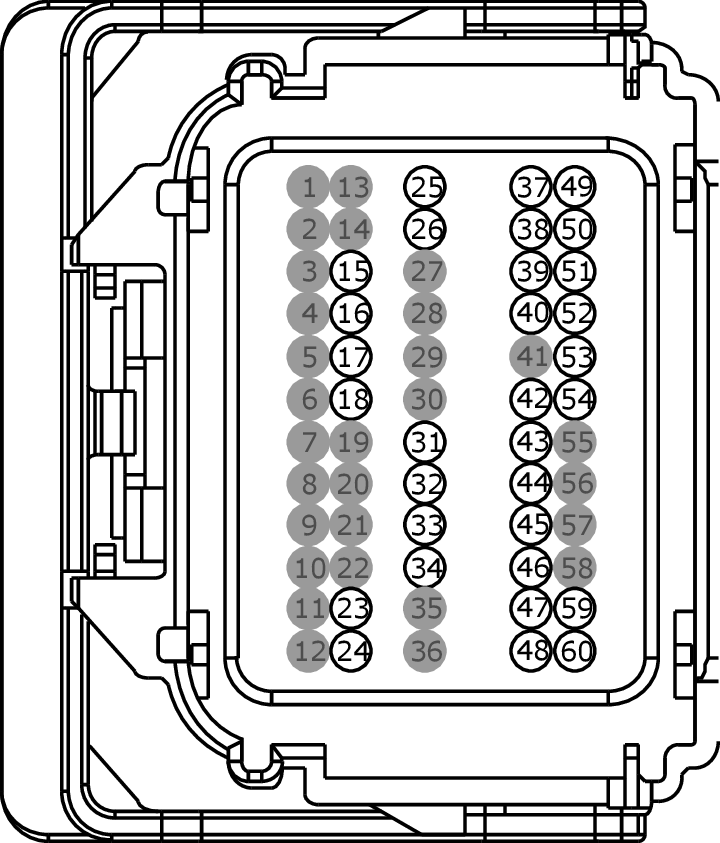

Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)
Connector: C310B
Description
RESTRAINTS CONTROL MODULE (RCM)
Color
BK
Harness
14014
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | RR147 (YE-VT) | 20 | CTRL MOD. - STEERING COLUMN DEPLOY | |
| 16 | CR147 (GN-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER ROW 3 PASSENGER SIDE OUTBOARD | |
| 17 | CR111 (BN-WH) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD | |
| 18 | RR111 (YE-VT) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | VR215 (YE-VT) | 20 | SENSOR - SEAT TRACK POSITION DRIVER | |
| 24 | CR234 (BU) | 20 | SWITCH - PASSENGER AIRBAG DEACTIVATION # AIRBAG ON (A) | |
| 25 | CR109 (BN-BU) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD | |
| 26 | RR109 (BU-GN) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD | |
| 27 | * | * | Not Used | |
| 28 | * | * | Not Used | |
| 29 | * | * | Not Used | |
| 30 | * | * | Not Used | |
| 31 | RR152 (YE-VT) | 20 | CTRL MOD. - STEERING COLUMN DEPLOY | |
| 32 | CR152 (GY-YE) | 20 | CTRL MOD. - VEHICLE 2 | |
| 33 | CR153 (GN-WH) | 20 | CTRL MOD. - VEHICLE 2 | |
| 34 | RR153 (GY-BU) | 20 | CTRL MOD. - STEERING COLUMN DEPLOY | |
| 35 | * | * | Not Used | |
| 36 | * | * | Not Used | |
| 37 | CR106 (VT-GY) | 22 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE OUTBOARD | |
| 38 | RR106 (YE-OG) | 22 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE OUTBOARD | |
| 39 | RR105 (GY-YE) | 22 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 | |
| 40 | CR105 (GN-BU) | 22 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 | |
| 41 | * | * | Not Used | |
| 42 | CR115 (BN) | 22 | CTRL MOD. - DEPLOY OUTPUT VEMS/TAS | |
| 43 | RR132 (BU-WH) | 20 | CTRL MOD. - SENSOR IMPACT FRONT 2ND OR RIGHT | |
| 44 | VR218 (YE-OG) | 20 | SENSOR - SIDE IMPACT FRONT PASSENGER SIDE | |
| 45 | VR217 (GY-YE) | 20 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | |
| 46 | RR131 (VT-GY) | 20 | CTRL MOD. - SENSOR IMPACT FRONT 2ND OR RIGHT | |
| 47 | VDB05 (WH) | 22 | CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) | |
| 48 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 49 | CR122 (WH-OG) | 20 | CTRL MOD. - DEPLOY OUTPUT VEMS/TAS | |
| 50 | RR122 (BN) | 20 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE 2 | |
| 51 | RR120 (BN-GN) | 20 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE 2 | |
| 52 | CR120 (BU-OG) | 20 | CTRL MOD. - DEPLOY OUTPUT VEMS/TAS | |
| 53 | RR155 (GY) | 20 | CTRL MOD. - STEERING COLUMN DEPLOY | |
| 54 | CR201 (GN-BU) | 22 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE | |
| 55 | * | * | Not Used | |
| 56 | * | * | Not Used | |
| 57 | * | * | Not Used | |
| 58 | * | * | Not Used | |
| 59 | VCA24 (GN-OG) | 22 | CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS LOW | |
| 60 | VCA23 (BU-WH) | 22 | SOUNDER - BATTERY BACKUP |
