Connector End View (C256B) - PASSENGER AIRBAG

Connector: C256B

Description

PASSENGER AIRBAG

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2
2	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2

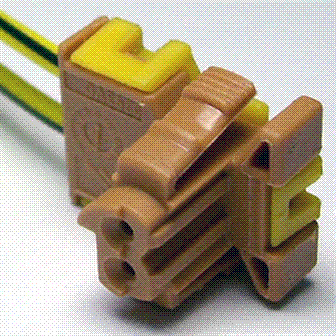

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1222

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BEA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Pretensioner - Seat Belt (Driver)

Squib - Airbag (Passenger)
