Connector End View (C256A) - PASSENGER AIRBAG
Connector: C256A
Description
PASSENGER AIRBAG
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR103 (YE-GY) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 | |
| 2 | RR103 (WH-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 |

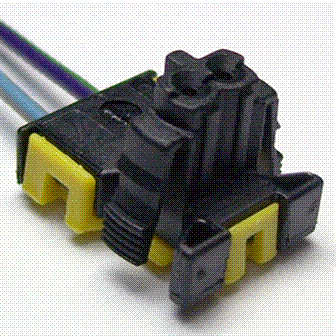

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1230 |
Service Part Number: BU2Z-14S411-BPA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain Squib - Airbag (Passenger) |
