Connector End View (C3238) - PASSENGER SAFETY BELT TENSION SENSOR (BTS)

Connector: C3238

Description

PASSENGER SAFETY BELT TENSION SENSOR (BTS)

Color

Harness

14014

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD345 (BK-VT)	20	GROUND - PILLAR B RIGHT
2	VR210 (BU-BN)	20	SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD
3	CR210 (VT)	20	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD +

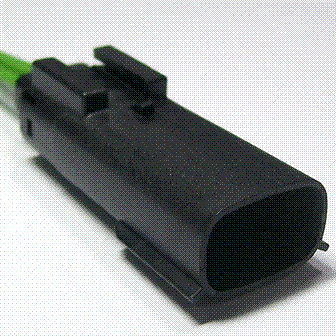

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1180

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-ASA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Speaker - Tweeter - RH - Rear
