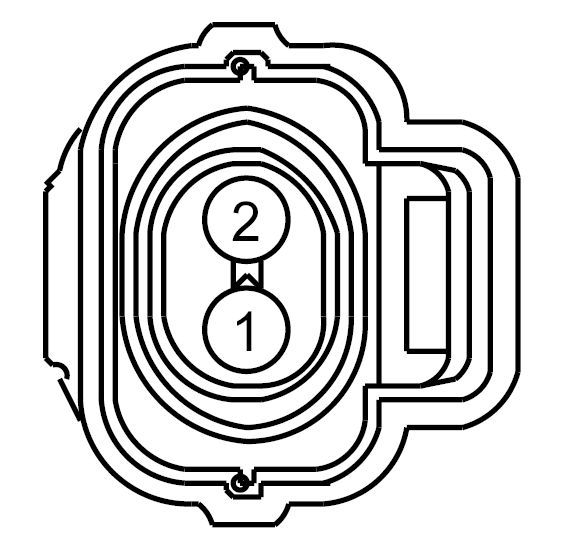

Connector End View (C1670) - VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID

Connector: C1670

Description

VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID

Color

Harness

12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB33 (WH-BN)	18	FUSE OR CIRCUIT BREAKER	1.6L GTDI
2	CE501 (GY)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID	1.6L GTDI

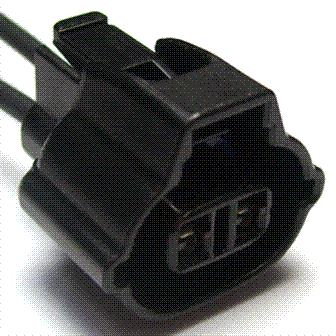

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1269

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-SA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Solenoid - Engine Variable Timing
