Universal Heated Oxygen Sensor (HO2S) #11 (1.6L GTDI)

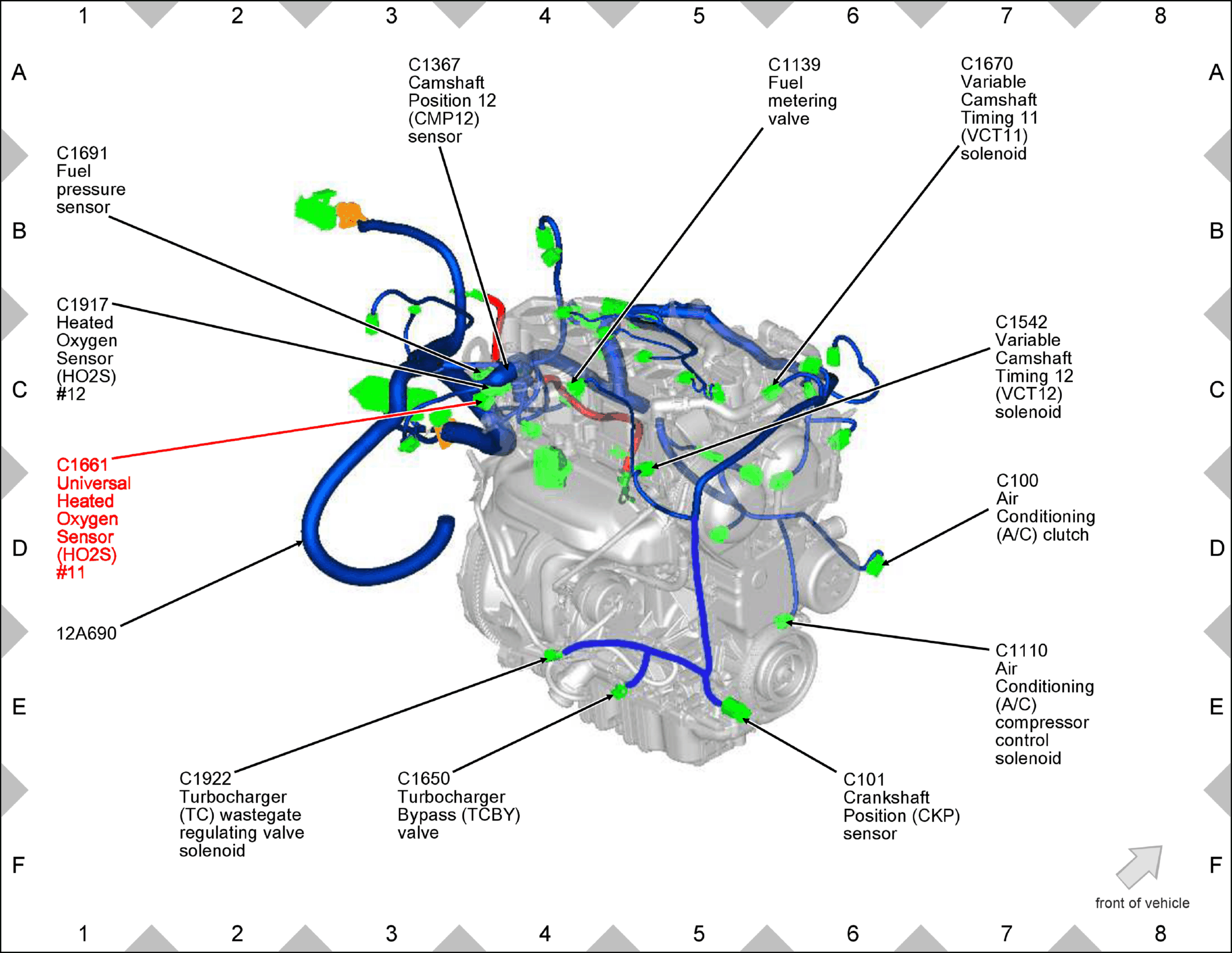

Fig 1: Universal Heated Oxygen Sensor (HO2S) #11 Component Location (1.6L GTDI)

GFDW64416

Courtesy of FORD MOTOR COMPANY
